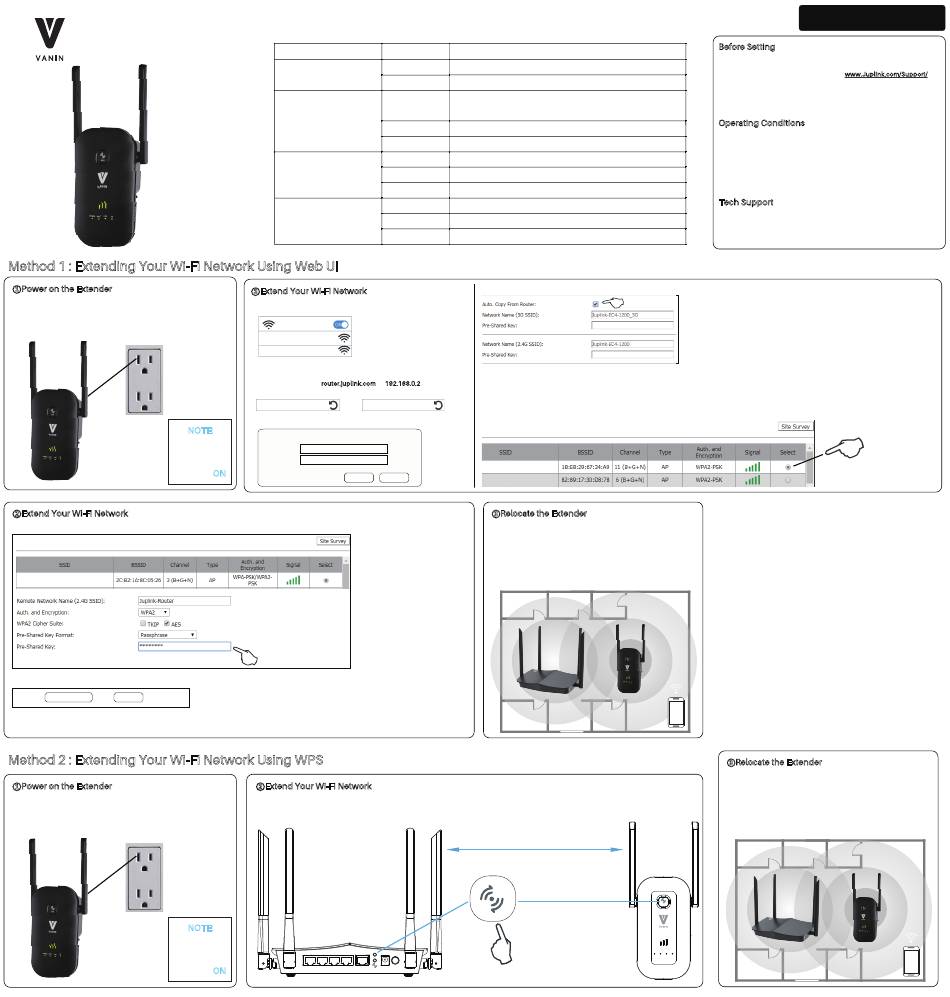

Vanin EC4-1200 Quick Start Manual

Quick Start Guide
EC4-1200
Wi-Fi Extender
V A N I N
Method 1 : Extending Your Wi-Fi Network Using Web UI
①Power on the Extender
1. Plug the extender into a power outlet near the router
Note : When the distance between the router and the extender is
less than 1 ft , pairing is easier to succeed
2. Wait until the 2.4G / 5G Signal LED turns solid green
Before using
please turn
the right side
switch to ON
②Extend Your Wi-Fi Network
6. Scroll to the lower part of the page, and enter the password of the Wi-Fi network you want to extend,
Juplink-Router
7. Scroll to the bottom of the page and Click "Save&Apply".
Save&Apply Cancel
Wait until the Change setting successfully! page appears
Method 2 : Extending Your Wi-Fi Network Using WPS
①Power on the Extender
1. Plug the extender into a power outlet near the router
Note : When the distance between the router and the extender is
less than 1 ft , pairing is easier to succeed
2. Wait until the 2.4G / 5G Signal LED turns solid green
Before using
please turn
the right side
switch to ON
LED Status Indicators
LED
PWR
2.4G / 5G Signal LED
WPS
Wi-Fi Signal Strength
Indicator LED
②Extend Your Wi-Fi Network
1. Connect your Wi-Fi device to the extender 's Wi-Fi network
Juplink-EC4-1200_5G or Juplink-EC4-1200.
WLAN
Juplink-EC4-1200
Juplink-EC4-1200_5G
Ensure that Mobile Data ( if any ) is disabled.
2. Run a web browser on the device which is connected
to the extender,Enter router.juplink.com or 192.168.0.2
http://192.168.0.2 or router.juplink.com
3. Username:admin / Password:admin
NOTE:
Login VANIN EC4-1200 extender
Username admin
Password
admin
Cancel
②Extend Your Wi-Fi Network
1. Press the WPS button on the router and then press the WPS button on the extender within 2 minutes
2. Wait until the 2.4G / 5G Signal LED turns solid green
NOTE:
Status Description
Off Powered off
On Powered on
Off No Wifi signal or Powered off
On Normal connection but No transmissing data
Flashing Transmissing data
Off Function not enabled or Powered off
On WPS is enabled and connected
Flashing WPS is enabled and connection being established
One LED on Weak reception, strength below 25%
Two LEDs on Good receiving, strength of 50~75%
Three LEDs on Excellent receiving, strength above 75
4. Modify your SSID and Password
Note：Default SSID and password are automatically copied from those of the router for both 2.4 GHz and 5 GHz networks. If you wish to modify
these settings, Select the check box and then enter the SSID and password that you wish to apply to the extended Wi-Fi network(s).
5. Select a Wi-Fi network (SSID) you want to extend
Juplink-RX4-1800_5G
Login
Juplink-RX4-1800
③Relocate the Extender
1. For better performance, plug the extender into an outlet between
the router and the Wi-Fi dead zone.
The location you choose must be within the range of your existing
Wi-Fi network
2. Wait until the 2.4G / 5G Signal LED turns solid green, or the
Wi-Fi Signal Strength Indicator shows at least Two LEDs on
You can use Method 2 if your router has a WPS button. otherwise, use Method 1
Within 1 ft
WPS
Website : www.juplink.com
Email : Support@juplink.com
Before Setting
To customize your wireless network connection and other
advanced repeater settings, please go to www.Juplink.com/Support/
to download EC4-1200 updated Firmware and User Guide
for more information.
Operating Conditions
Working Temperature: 0~45°C / 32~113°F
Working Humidity: 10%~90% RH (Non condensation)
Storage Temperature:-40~85°C / -40~185°F
Storage Humidity: 5%~95% RH (Non- condensing)
Tech Support
Mail: support@juplink.com
Tell : +1 (833) 923 - 2468 (Toll Free)
Service Time : EST : 09:00-17:00/PDT: 06:00
( Note :It may takes a few seconds to scan the network )
③Relocate the Extender
1. For better performance, plug the extender into an outlet between
the router and the Wi-Fi dead zone.
The location you choose must be within the range of your existing
Wi-Fi network
2. Wait until the 2.4G / 5G Signal LED turns solid green. or the
Wi-Fi Signal Strength Indicator shows at least Two LEDs on
WPS
POWER WPS 2.4G 5G
