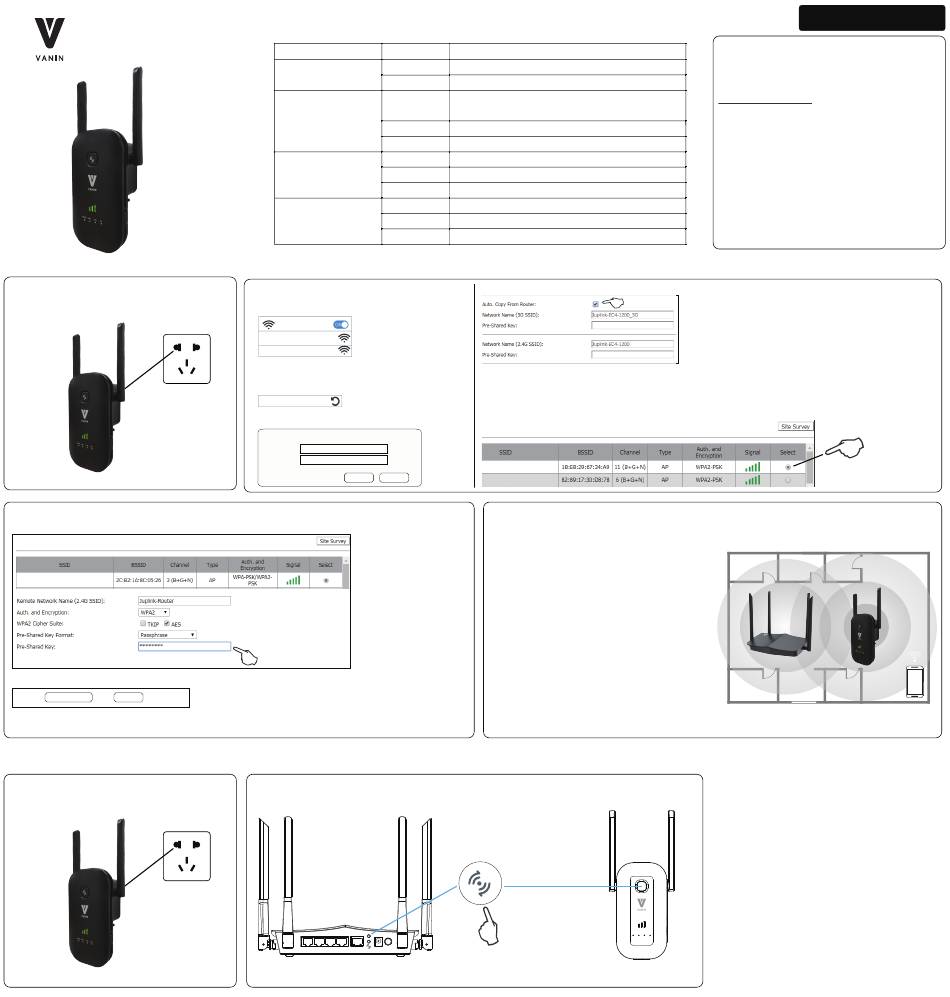

Vanin EC4-1200 Quick Start Manual

Quick Start Guide
EC4-1200
Wi-Fi Extender
V A N I N

Method 1 : Extending Your Wi-Fi Network Using Web UI

①Power on the Repeater
1. Plug the repeater into a power outlet near the router
2. Wait until the 2.4G / 5G Singal LED turns solid green
②Extend Your Wi-Fi Network
6. Enter the password of the Wi-Fi network you want to extend.
Juplink-Router
7. Scroll to the bottom of the page and select "Save&Apply".
Save&Apply Cancel
Wait a moment, the Change setting successfully! page appears

Method 2 : Extending Your Wi-Fi Network Using WPS

①Power on the Repeater
1. Plug the repeater into a power outlet near the router
2. Wait until the 2.4G / 5G Singal LED turns solid green

LED Status Indicators

LED Status
LED off
PWR
LED on
LED off
2.4G / 5G Singal LED
LED on
LED Flashing
LED off
LED on
WPS
LED Flashing
One LED on
Wi-Fi Signal Strength
Two LED on
Indicator LED
Three LED on
②Extend Your Wi-Fi Network
1. Connect your Wi-Fi device to the repeater's Wi-Fi network
Juplink-EC4-1200_5G or Juplink-EC4-1200.
WLAN
Juplink-EC4-1200
Juplink-EC4-1200_5G
Ensure that Mobile Data ( if any ) is disabled.
2. Lauch a web browser on the device which has been connected
to the repeater,Enter 192.168.0.2 in the address bar to log in.
http://192.168.0.2
3. Username:admin / Passwrod:admin
Login 192.168.0.2" VANIN EC4-1200 repeater
Username admin
Password
admin
Cancel Login
You can use Method 2 if your router has a WPS button. otherwise, use Method 1
②Extend Your Wi-Fi Network
1. Press the WPS button on the router and within 2minutes press the WPS button on the repeater
WPS
2. Wait until the 2.4G / 5G Singal LED turns solid green
FCC ID：2AT9Z-EC4-1200
Meaning
Power off
Power on
Equipment Connection Normal
No Wi-Fi signal or Power off
No Transferming data
Transferming data
Function not enabled or Powered off
WPS is enabled and connected
WPS is enabled and in connection
Weak reception, strength below 25%
Good reception, strength below 50~75%
Excellent reception, strength below 100%
4. Modify your SSID and Password
Note：Default SSID and password are automatically copied from that of the router for both 2.4 GHz and 5 GHz networks. If you wish to modify
these settings, Click the check mark and then enter the SSID and password that you wish to apply to the extended Wi-Fi network(s).
5. Select a Wi-Fi network (SSID) you want to extend
Juplink-RX4-1500_5G
Juplink-RX4-1500
③Relocate the Repeater
1. For better performance, plug the repeater into an outlet halfway
between the router and the Wi-Fi dead zone.
The location you choose must be within the range of your existing
Wi-Fi network
2. Wait until the 2.4G / 5G Singal LED turns solid green. or the
Wi-Fi Signal Strength Indicator shows at least Two LEDs on
Website : www.juplink.com
Email : Support@juplink.com

Before Setting

To customize your wireless network
connection and other advanced repeater
settings, please go to
www.Juplink.com/Support/
to download EC4-1200 updated Firmware
and User Guide for more information.

Operating Conditions

Working Temperature: 0~45°C / 32~113°F
Working Humidity: 10%~90% RH
(No condensation)
Storage Temperature:-40~85°C / -40~185°F
Storage Humidity: 5%~95% RH
(No condensation)
( Note :It may takes a few second to scan the network )
