- Page 1 RL863 Micro-power Multi-protocol Reader User Manual ◆ Before you use this product, please read this manual carefully, and properly keep it for future reference. ◆ As our products continue improving, they may be changed without advanced notice. ◆ The copyright of this manual belongs to our company. Unauthorized plagiarism or...
- Page 2 Version:V1.3...
-
Page 3: Table Of Contents
User manual Contents Product Overview ................1 1.1. Introduction ................. 1 1.2. Product Features ..............1 1.3. Pictures ................1 1.4. Main Parameter ..............2 Hardware Interface Description ............2 Product Dimension ................. 3 Device Connection................3 Instructions Of Configuration Tools ..........4 5.1. -
Page 4: Product Overview

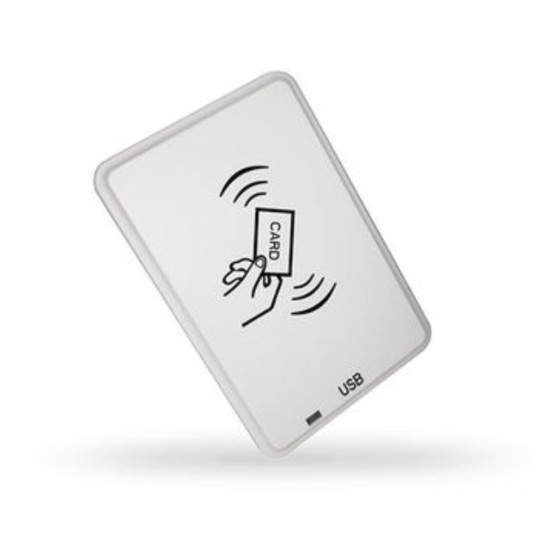

Support ISO 15693 protocol multi-card simultaneous reading; ➢ Support ISO 18000-3M3 protocol multi-card simultaneous reading;(Support zero distance overlap reading of tags); ➢ Recognition distance：0~16cm; ➢ Communication interface:USB； ➢ Power supply:USB 5V。 1.3. Pictures RL863 Guangzhou Andea Electronics Technology Co., Ltd. 1/15 http://www.gzandea.com... -
Page 5: Main Parameter
② Due to continuous improvement of our products, technical parameters are subject to change without notice. 2. Hardware Interface Description The product uses USB communication interface, as shown in the following figure: Guangzhou Andea Electronics Technology Co., Ltd. 2/15 http://www.gzandea.com... -
Page 6: Product Dimension
The external dimensions of the product are shown in the following figure (unit: mm): Figure 2 Product dimension 4. Device Connection Before using the reader, connect the reader to the computer with the supplied "USB cable", as shown in the following figure: Guangzhou Andea Electronics Technology Co., Ltd. 3/15 http://www.gzandea.com... -
Page 7: Instructions Of Configuration Tools
Communication" in [Communication Interface] under [Search Parameters]. click the [Search] button to find the device. When the device is found, the device information will be automatically displayed in the "Discovered Devices" list as follows: Guangzhou Andea Electronics Technology Co., Ltd. 4/15 http://www.gzandea.com... -
Page 8: Configuration Description Of Parameters
5.1. Configuration Description Of Parameters 5.1.1. Communication Interface Figure 6 Configuration interface for communication interface ⚫ Bus address: between 1-255 ⚫ Baud Rate: 9600, 19200, 38400, 57600, 115200, 230400 ⚫ Parity check type: None, Odd, Even Guangzhou Andea Electronics Technology Co., Ltd. 5/15 http://www.gzandea.com... -
Page 9: Buzzer Default Parameters
1)Auto close RF when RF is free for specified time：In the host control mode, the device will automatically close the RF if it does not receive a command of card reading or opening the RF. Guangzhou Andea Electronics Technology Co., Ltd. 6/15 http://www.gzandea.com... -
Page 10: Inventory Parameters
Otherwise, it is ASK 100%. 4) ASK modulation depth: 0.5% -60% ⚫ ISO18000p3m3 1)M: Manchester 2,Manchester 4 2) DR:FC/16847khz, FC/32424khz 3) Modulation depth:0.5%-29% 5.1.4. Inventory Parameters Figure 9 Configuration interface for inventory parameters Guangzhou Andea Electronics Technology Co., Ltd. 7/15 http://www.gzandea.com... - Page 11 4) Min dynamic Q: set the minimum dynamic Q value. 5) Max dynamic Q: set the maximum dynamic Q value. ⚫ ISO14443B 1) AFI: 00-FF.Note: 00 means not to enable. 2) Slot Number: 1,2,4,8,16. Guangzhou Andea Electronics Technology Co., Ltd. 8/15 http://www.gzandea.com...
-
Page 12: System Work Mode
② Output block’s data: output the content of the data block (not including the security status byte). ③ Output format of block’s data: A. Format as hex string. B. Format as ASCII. Guangzhou Andea Electronics Technology Co., Ltd. 9/15 http://www.gzandea.com... -
Page 13: Testing
After entering the main interface of R-Tool test software, select "ISO Multi-Tag Test" ,carry out the procedure as shown in the following figure ①, ② and ③ for tags inventory test: Figure 11 Multi-Tag inventory test steps Guangzhou Andea Electronics Technology Co., Ltd. 10/15 http://www.gzandea.com... -
Page 14: Single Tag Operation Testing
Step 5: 1) For a single tag: click the "Connect" button; 2) For multiple tags: in UID drop-down box, select the tags required to be operated, and then click the "Connect" button; Guangzhou Andea Electronics Technology Co., Ltd. 11/15 http://www.gzandea.com... -
Page 15: Troubleshooting Of Faqs
Troubleshooting method: reconnect the reader or change a USB cable to connect the reader: 1) The indicator is off and the reader does not work. It may be the reader MCU failure; Guangzhou Andea Electronics Technology Co., Ltd. 12/15 http://www.gzandea.com... -
Page 16: Technical Support
MCU or antenna of the reader may be faulty. Please contact our company to discuss maintenance matters. 7. Technical Support ➢ Download link for development data and testing https://www.gzandea.com/download.php ➢ Call for equipment debugging and technical support Mobile phone: 138 0251 4535 Fixed telephone: 020-32039552 Guangzhou Andea Electronics Technology Co., Ltd. 13/15 http://www.gzandea.com... - Page 17 -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Guangzhou Andea Electronics Technology Co., Ltd. 14/15 http://www.gzandea.com...
- Page 18 Guangzhou Andea Electronics Technology Co., Ltd. Address: Room 401, Building H, Jingye San Street, Yushu Industrial Park, Economic And Technological Development Zone, Guangzhou. Zip code: 510663 Phone: 86-020-32039550, 32039551, 32039552 Fax: 86-020-32039553 Website: http://www.gzandea.com...
