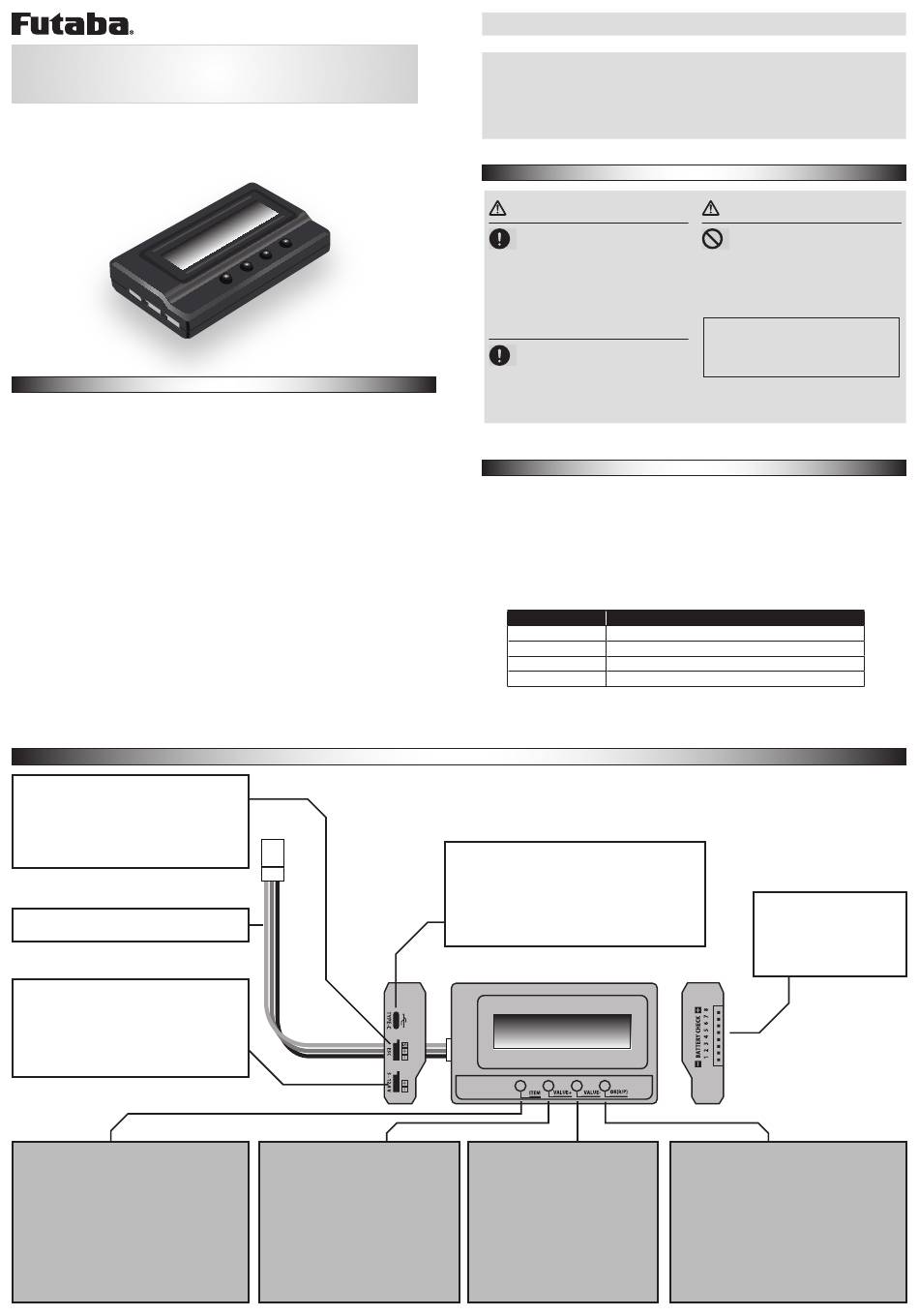

FUTABA MCP-2 Instruction Manual

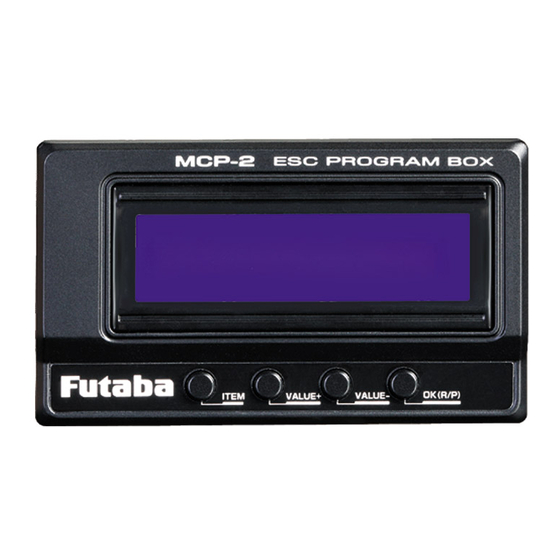

Program box MCP-2
For Futaba
Instruction manual
MC-980H/A
MC-9130H/A
MC-9200H/A
Features and functions
Thank you for purchasing an MCP-1 ESC Programmer.
The MCP-1 is a dedicated programmer for the brushless motor
ESC given in "Corresponding ESC" above. Quick and accurate
setting matched to the characteristics of the model is possible and
the brushless motor can be operated at peak performance.
◆ Set the corresponding ESC. Programmable items are
displayed on the LCD screen.
◆ It acts as a USB adapter, linking the ESC to your PC to update
the ESC firmware, and setting programmable items with the
Futaba ESC USB link software on your PC.
◆ It acts as a Lipo battery checker and measures the voltage of
the entire battery pack and each cell.
ESC：
Use Program Wire to connect this
port to the ESC programming port.
Program Wire
BATT：
MCP-2 power input port. Not used
with BEC type ESC (MC-980H/A, MC-
9130H/A, MC-9200H/A).
ITEM：
● Switches the setting items in order.
● Exits the setting mode of the setting
item.
● Enter the settings of the setting
items.
● Press and hold to change items one
after another.
Motor controller
Setting tool
Functions of each button and port
VALUE +：
● The parameter value of the
setting item is cyclically
switched in the positive
direction.
● Press and hold to change
items one after another.
NOTE: Always read this manual before using the MCP-2.
Before using the MCP-2
* Improper handling of the LiPo battery is extremely dangerous. Use
the battery in accordance with the instruction manual supplied
with it.
Usage precautions
WARNING
When setting and operating
the ESC be sure that no
part of your body touches all the
parts which rotate.
The motor may rotate unexpectedly
d u e t o e r r o n e o u s c o n n e c t i o n
and operation of the ESC and is
extremely dangerous.
Before flight, always check
ESC operation.
If the ESC is not set proper ly
control will be lost and is extremely
dangerous.
Corresponding ESC
Futaba MC-980H/A
Futaba MC-9130H/A
Futaba MC-9200H/A
Function
Size
Weight
Power supply
* Pay attention to the polarity of the connector.
* The BATTERY CHECK port has a pin spacing of 2.54 mm.
Connect a compatible connector.
USB port：
Connect the MCP-2 to your PC and supply
the operating voltage to the MCP-2 (if the
USB port is connected, the power BATT
port does not need to be connected).
VALUE -：
● The parameter value of the
setting item is cyclically
switched in the negative
direction.
● Press and hold to change
items one after another.
CAUTION
Do not open the case or
disassemble this product.
The inter ior will be damaged.
In addition, repair will become
impossible.
This product is only for use with
the "Corresponding ESC" shown
above . It cannot be used with
other products.
S S pecification pecification
[ [ ] ]
MCP-2
ESC setting / PC Link / Battery checker
90 x 51x 17 mm
65 g
DC 4.5 V 〜 12.6 V
Battery Check ：
Connect to the bat-
tery's balanced charg-
ing connector.
OK（R / P） ：
● Saves the current mode value and
sends it to ESC.
● Enter the value of the setting item.
