Psiber SIGNALSCOUT 40 Quick Start Manual

QUICK START GUIDE
S S S S
IGNAL IGNAL COUT COUT
SIGNAL LEVEL METER FOR OVER-THE-AIR
AND CABLE TV
MODEL 40

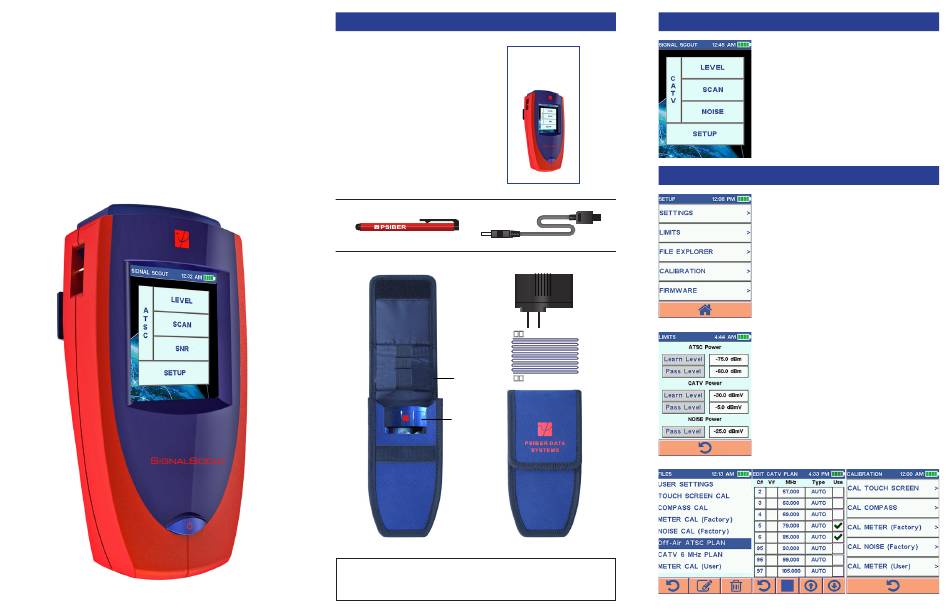

CONTENT

Contents Includes:

1. SignalScout Meter (SS40)
2. Carrying Case
3. Strap (+2 Buckles)
4. AC Power Adapter
5. USB/Charging Cable
6. Quick Start Guide
7. Stylus
7
*
2
1
Psiber, the Psiber logo and SignalScout are trademarks of Psiber Data
Systems Inc. ©2021 by Psiber Data Systems Inc. All rights reserved.
1005-0400-0000 Rev: C
1
QUICK START GUIDE
6
S S S S
IGNAL IGNAL COUT COUT
SIGNAL LEVEL METER FOR OVER-THE-AIR
AND CABLE TV
MODEL 40
5
4
3
2
2

GETTING STARTED

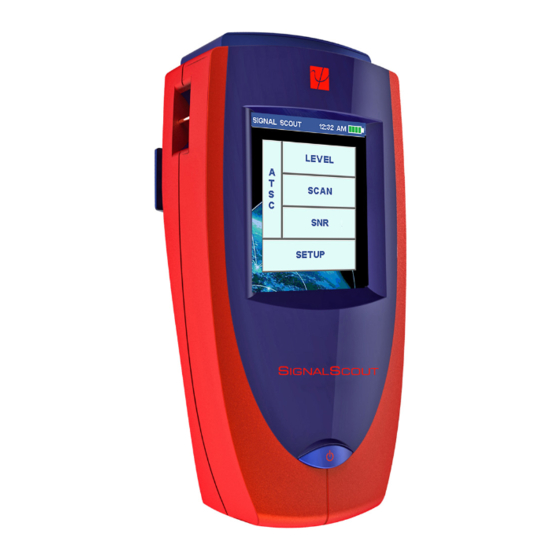

Press the Power Button for 1 second
to turn on the SignalScout. The HOME
Screen is displayed.
ATSC button is displayed to select
LEVEL, SCAN, or SNR. Select ATSC
to go to the CATV mode with LEVEL,
Scan, and NOISE.
Select SETUP to display the MAIN
SETUP Screen.

SETUP

SETTINGS allows the TIME/DATE,
SPEAKER VOLUME, AUTO POWER
OFF and AUTO GAIN CONTROL to be
changed. Select the RETURN button to
go back to the MAIN SETUP screen.
LIMITS changes the limit levels for
ATSC, CATV and NOISE Power which
will be used on the testing screens.
FILE EXPLORER brings up a list of
files that can be edited or deleted. Both
Channel Plans (ATSC & CATV) can be
customized. See the user manual BE-
FORE deleting one of the CALIBRA-
TION (CAL) files.
CALIBRATION calibrates the TOUCH-
SCREEN, COMPASS, and METER
(User). METER (User) allows user cali-
bration but METER/NOISE (Factory)
cannot be changed.
FIRMWARE shows version and allows
for new updates. Select the HOME but-
ton to go back to the HOME Screen.
3
