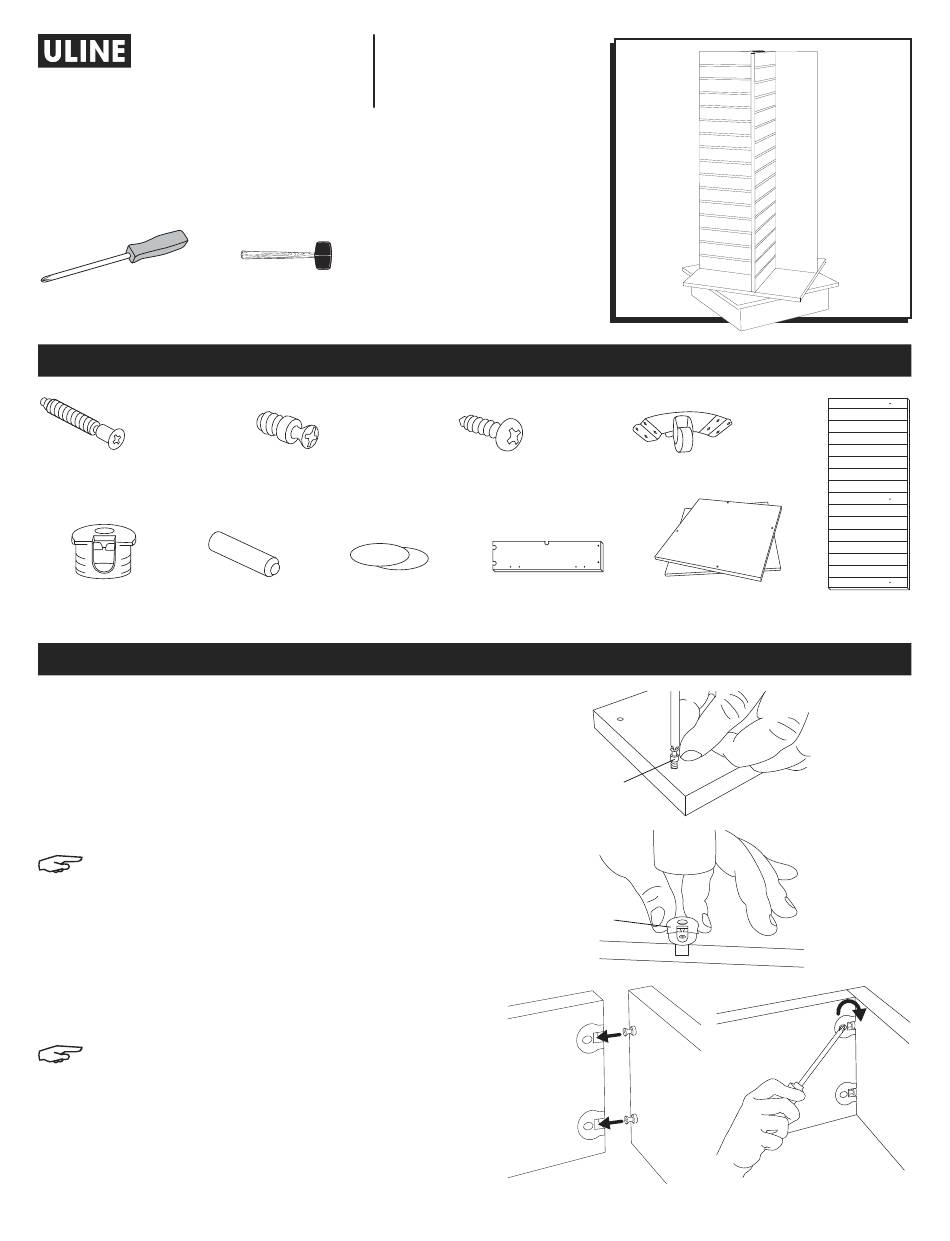

U-Line H-3879 Quick Start Manual

H-3879

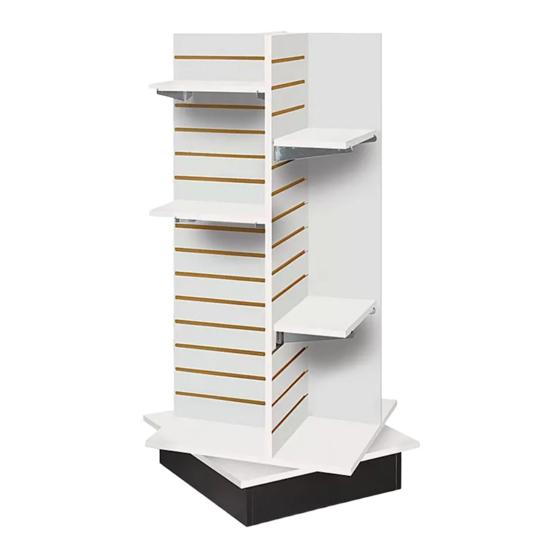

4-WAY SLATWALL TOWER
TOOLS NEEDED
Phillips Screwdriver Rubber Mallet (Optional)
Confirmat Screw x 12
Camlock x 12 Dowel Pin x 4
KICK BASE ASSEMBLY
1. Install camlock pins into the predrilled holes in kick
base boards using screwdriver. (See Figure 1)
2. Install camlocks into large holes in kick base boards
by tapping them into position with rubber mallet.
(See Figure 2)
NOTE: Ensure the hole in the side of the
camlock always faces outward.
3. Arrange kick base boards to form a square so that
each corner has camlock pins set into the camlocks
of the adjacent board. (See Figure 3)
4. Connect camlocks and pins by inserting screwdriver
into the top hole of the camlock and turning
clockwise. (See Figure 4)
NOTE: Tilt screwdriver at an angle while twisting
to better lock the camlocks.
PAGE 1 OF 6
1-800-295-5510
uline.com
Camlock Pin x 12
Screw Cap x 12
ASSEMBLY
PARTS
Pan Head Screw x 16
Kick Base Board x 4
Figure 1
Camlock Pin
Figure 2
Camlock
Figure 3
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Caster x 4
Spinner Base Top x 1 Wing Panel x 4
Figure 4
0521 IH-3879
