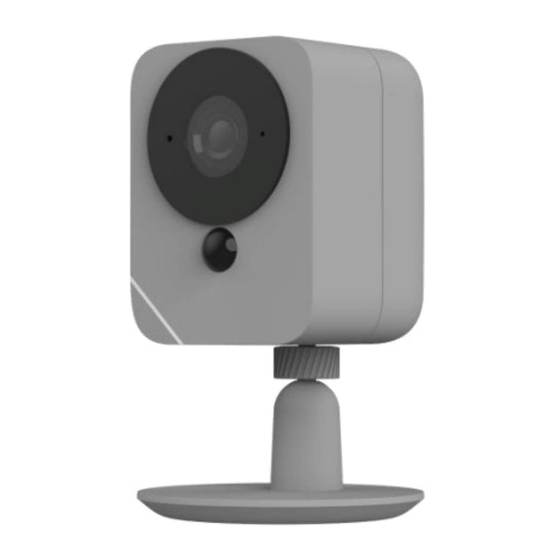

- Page 1 FCC ID:P27SCE2R0 SCE2R0-29 Outdoor Camera Setup Guide Document Version: 1.0...
-
Page 2: Table Of Contents
Mounting Installation......................7 Chapter 3 Viewing Live Video ..................... 8 Overview ..........................8 Requirements ........................8 Connecting to a Camera on your LAN ................8 Appendix A Specifications ....................10 SCE2R0-29 Battery Camera ..................10 Regulatory Approvals ..................... 11 FCC ID:P27SCE2R0... -
Page 3: Chapter 1 Introduction
Package Contents The following items should be included: If any of these items are damaged or missing, please contact your dealer immediately. 1. SCE2R0-29 Battery Camera x 1 2. Battery Pack x 1 3. Mounting Stand x 1 4. Screw/Anchor x 3... -
Page 4: Chapter 2 Setup
FCC ID:P27SCE2R0 Chapter 2 Setup This Chapter provides details on how to install and configure the Battery Camera. System Requirements A computer or mobile device with Internet access You can use the following web browser while using a computer: •... - Page 5 FCC ID:P27SCE2R0 Front Panel The built-in microphone is useful for bi-direction voice Microphone conversation. Light Sensor This is hardware sensor to detect LUX. Lens No physical adjustment is required or possible for the lens, but you should ensure that the lens cover remains clean. The image quality is degraded if the lens cover is dirty or smudged.
- Page 6 This product is intended to be supplied by a Listed Power Adapter or DC power source, whose output meets LPS, rated 5Vdc, 2A minimum and Tma 50 degree C, if need further assistance with purchasing the power source please contact Sercomm Corp. for further information.
-
Page 7: Pre-Installation
FCC ID:P27SCE2R0 Pre-Installation Insert the Battery Pack Align the battery contacts and then insert the battery pack into the camera. Note: Be sure to charge the battery when use it for the first time. - Page 8 FCC ID:P27SCE2R0 Battery Pack Charging You can charge your camera battery indoors using the Micro USB cable. Note: For safety reasons, the battery charging temperatures are from 5°C to 35°C. Put the battery pack into the camera. Connect the power Micro USB cable to the USB port of the camera. Plug the other end of power Micro USB cable into power adaptor for charging.
-
Page 9: Installation
FCC ID:P27SCE2R0 Installation Move the camera to where it is to be placed. Check the LED: The LED light bar should be solid blue when the camera is powering on. Mounting Installation Place the camera in a flat surface or mount it on the wall/ceiling. ... -
Page 10: Chapter 3 Viewing Live Video
FCC ID:P27SCE2R0 Chapter 3 Viewing Live Video This Chapter provides basic information about viewing live video. Overview This Chapter has details of viewing live video using Internet Explorer. Requirements To view the live video stream generated by Battery Camera, you need to meet the following requirements: ... - Page 11 FCC ID:P27SCE2R0 7. The first time you connect to the camera, you will be prompted to install decoders. Choose "I accept the terms of the license agreement" and click "OK". 8. Video will start playing automatically. There may be a delay of a few seconds while the video stream is buffered.
-
Page 12: Appendix A Specifications
FCC ID:P27SCE2R0 Appendix A Specifications SCE2R0-29 Battery Camera SCE2R0-29 Model Dimensions 72mm x 93mm x 71.35mm (H x W x D) Operating Temperature C to 50 Charging Temperature C to 35 Storage Temperature C to 50... -
Page 13: Regulatory Approvals
FCC ID:P27SCE2R0 Regulatory Approvals FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
