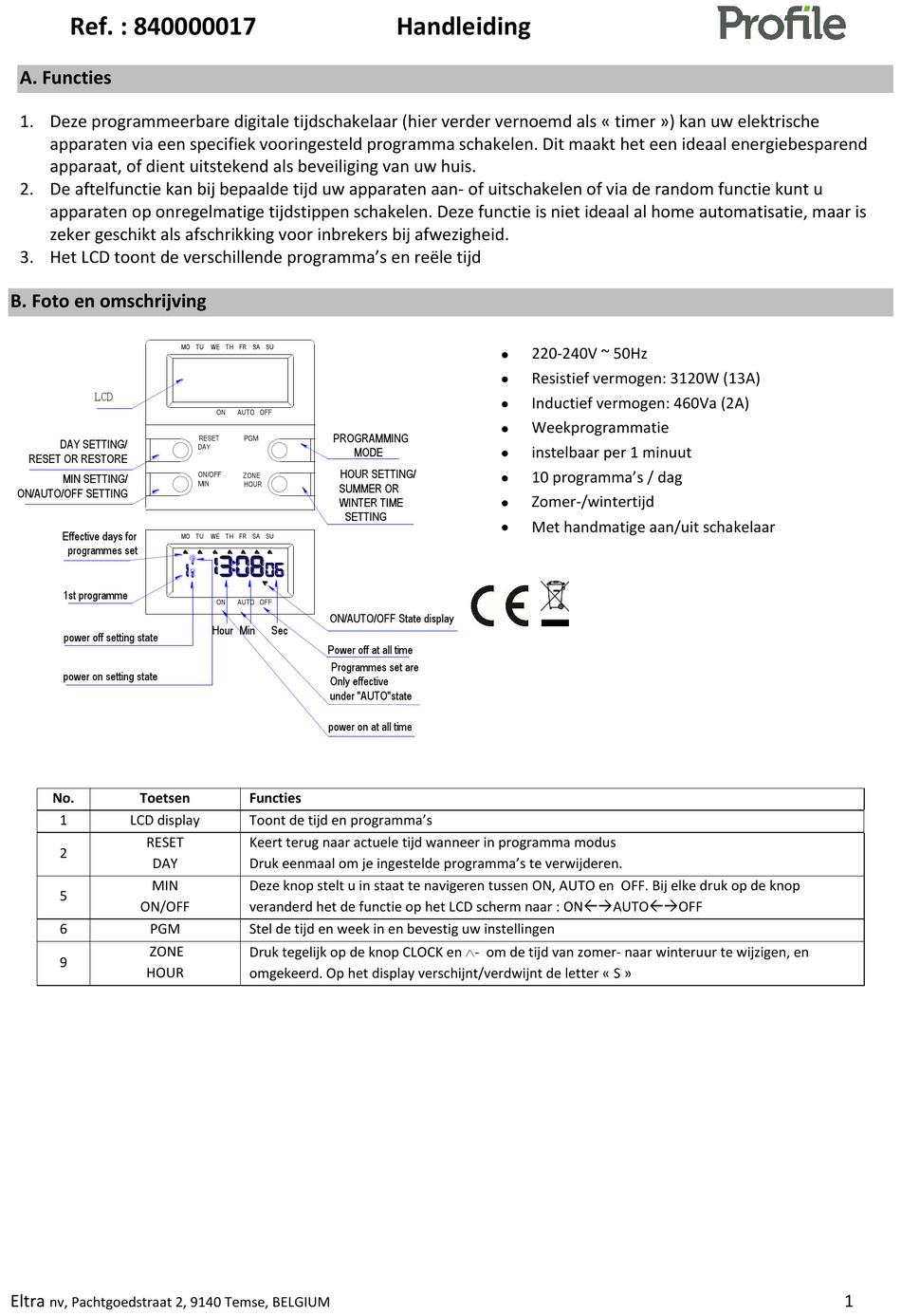

Ref. : 840000017
A. Functies
1. Deze programmeerbare digitale tijdschakelaar (hier verder vernoemd als « timer ») kan uw elektrische
apparaten via een specifiek vooringesteld programma schakelen. Dit maakt het een ideaal energiebesparend
apparaat, of dient uitstekend als beveiliging van uw huis.
2. De aftelfunctie kan bij bepaalde tijd uw apparaten aan- of uitschakelen of via de random functie kunt u
apparaten op onregelmatige tijdstippen schakelen. Deze functie is niet ideaal al home automatisatie, maar is
zeker geschikt als afschrikking voor inbrekers bij afwezigheid.
3. Het LCD toont de verschillende programma's en reële tijd

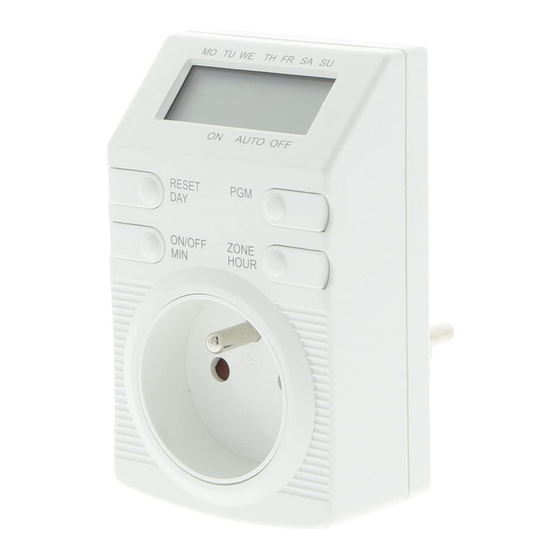

B. Foto en omschrijving
LCD
DAY SETTING/
RESET OR RESTORE
MIN SETTING/
ON/AUTO/OFF SETTING
Effective days for
programmes set
1st programme
power off setting state
power on setting state
No.
Toetsen
1
LCD display
RESET
2
DAY
MIN
5
ON/OFF
6
PGM
ZONE
9
HOUR
Eltra
nv, Pachtgoedstraat 2, 9140 Temse, BELGIUM
MO TU
WE TH FR SA SU
ON
AUTO OFF
PROGRAMMING
RESET
PGM
DAY
HOUR SETTING/
ON/OFF
ZONE
MIN
HOUR
SUMMER OR
WINTER TIME
SETTING
MO TU
WE TH FR SA SU
ON
AUTO OFF
ON/AUTO/OFF State display
Hour
Min
Sec
Power off at all time
Programmes set are
Only effective
under "AUTO"state
power on at all time
Functies
Toont de tijd en programma's
Keert terug naar actuele tijd wanneer in programma modus
Druk eenmaal om je ingestelde programma's te verwijderen.
Deze knop stelt u in staat te navigeren tussen ON, AUTO en OFF. Bij elke druk op de knop
veranderd het de functie op het LCD scherm naar : ONAUTOOFF
Stel de tijd en week in en bevestig uw instellingen
Druk tegelijk op de knop CLOCK en - om de tijd van zomer- naar winteruur te wijzigen, en
omgekeerd. Op het display verschijnt/verdwijnt de letter « S »
Handleiding
MODE
220-240V ~ 50Hz
Resistief vermogen: 3120W (13A)
Inductief vermogen: 460Va (2A)
Weekprogrammatie
instelbaar per 1 minuut
10 programma's / dag
Zomer-/wintertijd
Met handmatige aan/uit schakelaar
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 840000017 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Profile 840000017

  • Page 1 Ref. : 840000017 Handleiding A. Functies 1. Deze programmeerbare digitale tijdschakelaar (hier verder vernoemd als « timer ») kan uw elektrische apparaten via een specifiek vooringesteld programma schakelen. Dit maakt het een ideaal energiebesparend apparaat, of dient uitstekend als beveiliging van uw huis.
  • Page 2 Ref. : 840000017 Handleiding D. Instellen van weekdag en uur 1. Instellen van de weekdag 1.1 Druk lang op de toets « DAY » tot de LCD knippert. 1.2 Druk op de toets « DAY » om de weekdagen te kiezen. De sequentie op het display toont als volgt: Mo(maandag)Tu(dinsdag)We(woensdag)Th(donderdag)Fr(vrijdag)Sa(zaterdag)Su (zondag)...
  • Page 3 Ref. : 840000017 Handleiding E. Programmeren 1. Indien het scherm op real time uur staat, druk eenmaal op de toets « PGM » om naar programmatie over te gaan. « 1ON » toont links het scherm : « 1 » Toont de gekozen programmanummer (Deze gaat van 1 tot 14) «...
  • Page 4 Ref. : 840000017 Handleiding I. GEBRUIK 1. Stel uw AAN/UIT programma’s in. 2. Schakel het te schakelen apparaat uit. 3. Plug het te schakelen apparaat in het stopcontact van de timer. Plug de timer in een stopcontact. 4. Schakel het te schakelen apparaat aan.
  • Page 5 Ref. : 840000017 NOTICE A. Fonctions 1. La minuterie numérique programmable (que nous appellerons désormais la minuterie) permet de programmer des plages de marche/arrêt (on/off) de vos appareils électroménagers, comme par exemple une cafetière ou une lampe. Elle est idéale pour faire des économies d’énergie, mais aussi pour la sécurité de votre maison.
  • Page 6: Réglage De L'heure

    Ref. : 840000017 NOTICE D. Réglage du jour et de l’heure 1. Réglage des jours de la semaine 1.1 Appuyez longue sur le bouton « DAY » ( Réglage) jusqu’à ce que l’affichage se mette à clignoter, ce qui indique que vous pouvez passer au réglage...
  • Page 7 Ref. : 840000017 NOTICE E. Sélection du programme 1. Lorsque l’écran est en mode affichage de l’heure réelle, appuyez une fois sur le bouton « PGM » pour passer en mode sélection de programme. « 1ON » s’affichera à gauche de l’écran : «...
  • Page 8: Garantie

    Ref. : 840000017 NOTICE I. Connexions 1. Réglez les plages On/Off (marche/arrêt) désirées sur la minuterie, comme indiqué précédemment. 2. Eteignez l’appareil électrique. 3. Connectez la fiche du cordon d’alimentation de l’appareil dans la prise de la minuterie, puis branchez cette dernière à...
  • Page 9 Ref. : 840000017 Manual A. Functions The Programmable Digital Timer (hereinafter refer as “Timer”) can preset specific on/off time of your home electrical appliances. It is ideal for energy saving and home security. The countdown function can switch on/off your appliance on your pre-set time and random functions allows you to switch on and off the appliance in irregular time, it is not only ideal for home automation, also prevent burglary during your absence.
  • Page 10 Ref. : 840000017 Manual D. Week and time settings 1. Week settings « DAY » 1.1 Press and hold the Button until the display flashes, which indicates setting is ready « DAY » 1.2 Press Button to increase the day, the sequence of the display is shown as follows: MoTuWeThFrSaSu...
  • Page 11 Ref. : 840000017 Manual E. Programming 1. When the LCD is in real time display, press « PGM » Button once to change to program setting display, “1ON” will be shown on the left corner of the LCD: 1.1 “1” indicates the program group’s number (program group is from 1 to 14) 1.2 “ON”...
  • Page 12 Ref. : 840000017 Manual I. USE 1. Preset your desired On/off programs on the Timer as mentioned above. 2. Switch off your electrical appliance 3. Connect your appliance’s power cord to the Timer’s socket, then connect the Timer to the AC socket to get power 4.
