Product List
1*Meteor75 Micro FPV Quad
1*LiteRadio 2 Radio Transmitter
1*BETAFPV VR01 FPV Goggle
2*450mAh 1S Lipo Battery
1*BT2.0 Battery Charger and Voltage Tester

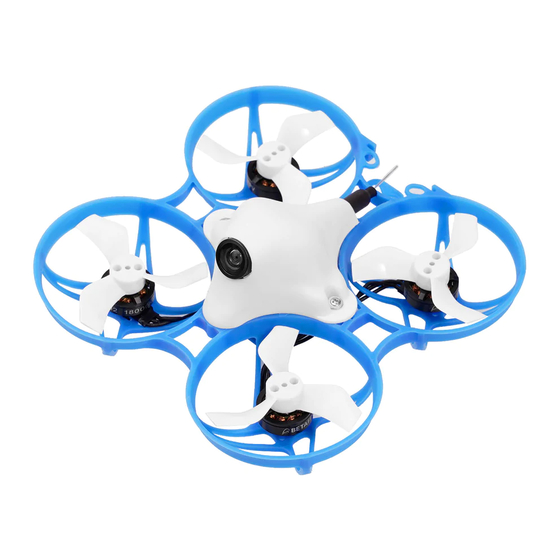

Meteor75
●

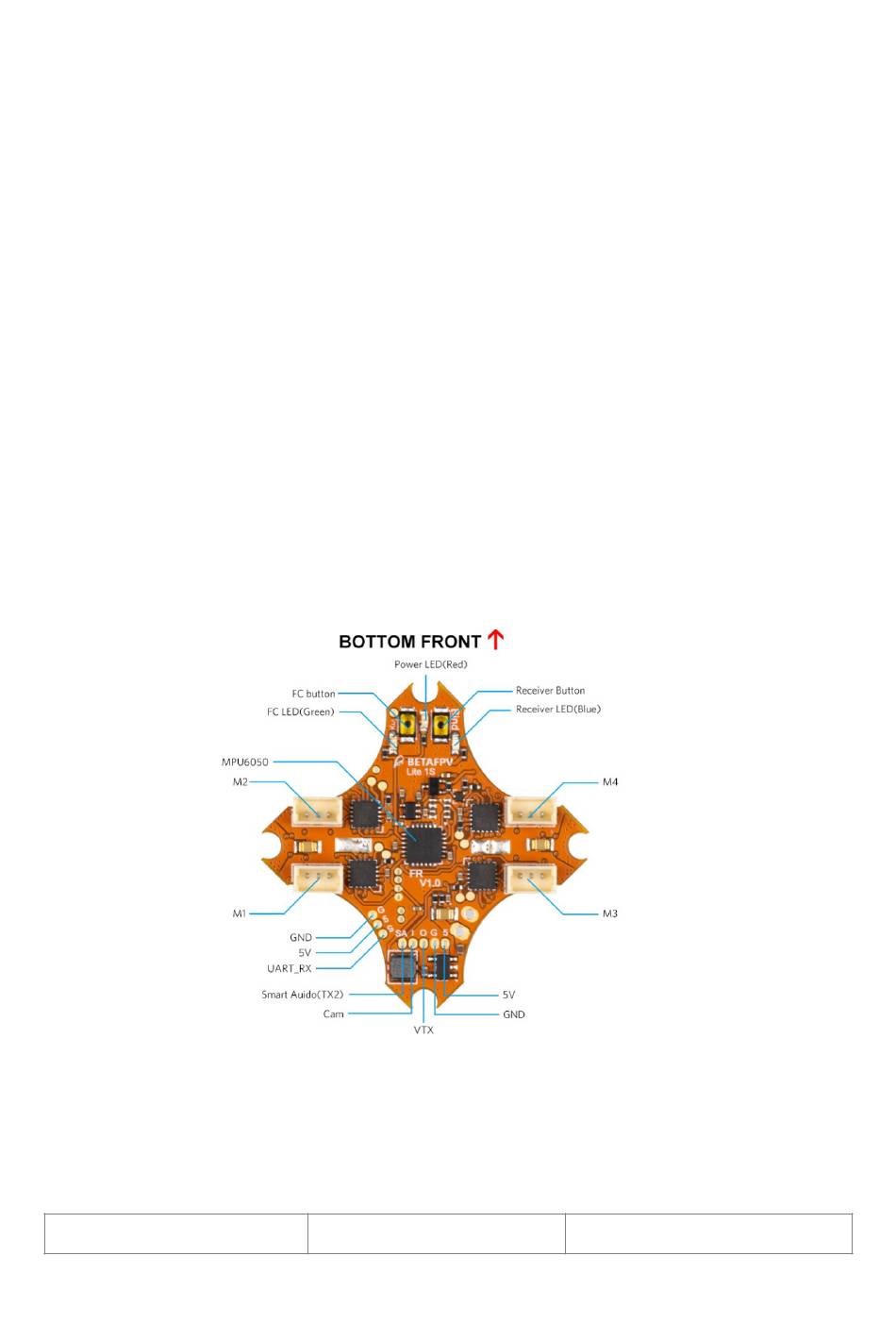

Power On/Off: connect the power cable of Meteor75 to the battery, the power
LED, receiver LED and FC LED are on, then the FC LED flashes and the
receiver LED turns off. After using, unplug the connection, and all LED will turn
off.
●
Battery: connect the battery to the voltage tester to display the current voltage
value of the battery.
●
Charge: connect the battery to the output (OUT1/2) of the charger supplied with
the adapter or other 5V power. The LED will show red light when charging; the
LED will show green light when finishing charging.
LED Status
Reason
1*USB Charging Cable
2*Goggle Antennas
1*Prop Removal Tool
4*40mm 3-Blade Prop
1*Portable Storage Bag
Solution
Advertisement
Table of Contents
Related Manuals for BETAFPV Meteor75
Summary of Contents for BETAFPV Meteor75
- Page 1 Meteor75 ● Power On/Off: connect the power cable of Meteor75 to the battery, the power LED, receiver LED and FC LED are on, then the FC LED flashes and the receiver LED turns off. After using, unplug the connection, and all LED will turn off.
- Page 2 Power LED off No power Reconnect or replace the battery FC LED off and Receiver Binding successfully LED solid FC LED flashing Connection interrupted Reconnect the power and or waiting for binding press the receiver button at the same time, press the bind button to bind Transmitter ●...
- Page 3 ● Please assemble the products according to the factory configuration, using other brand parts or private assembly may lead to some risks, which BETAFPV will not undertake. Do not use this product if you have physical or mental illness, dizziness, fatigue, ●...
Need help?
Do you have a question about the Meteor75 and is the answer not in the manual?
Questions and answers
Тип антен в стоке на метеор 75
The BETAFPV Meteor75 includes 2 goggle antennas.
This answer is automatically generated
