MADER APW-VAS-150P-A Operating Instructions Manual page 47

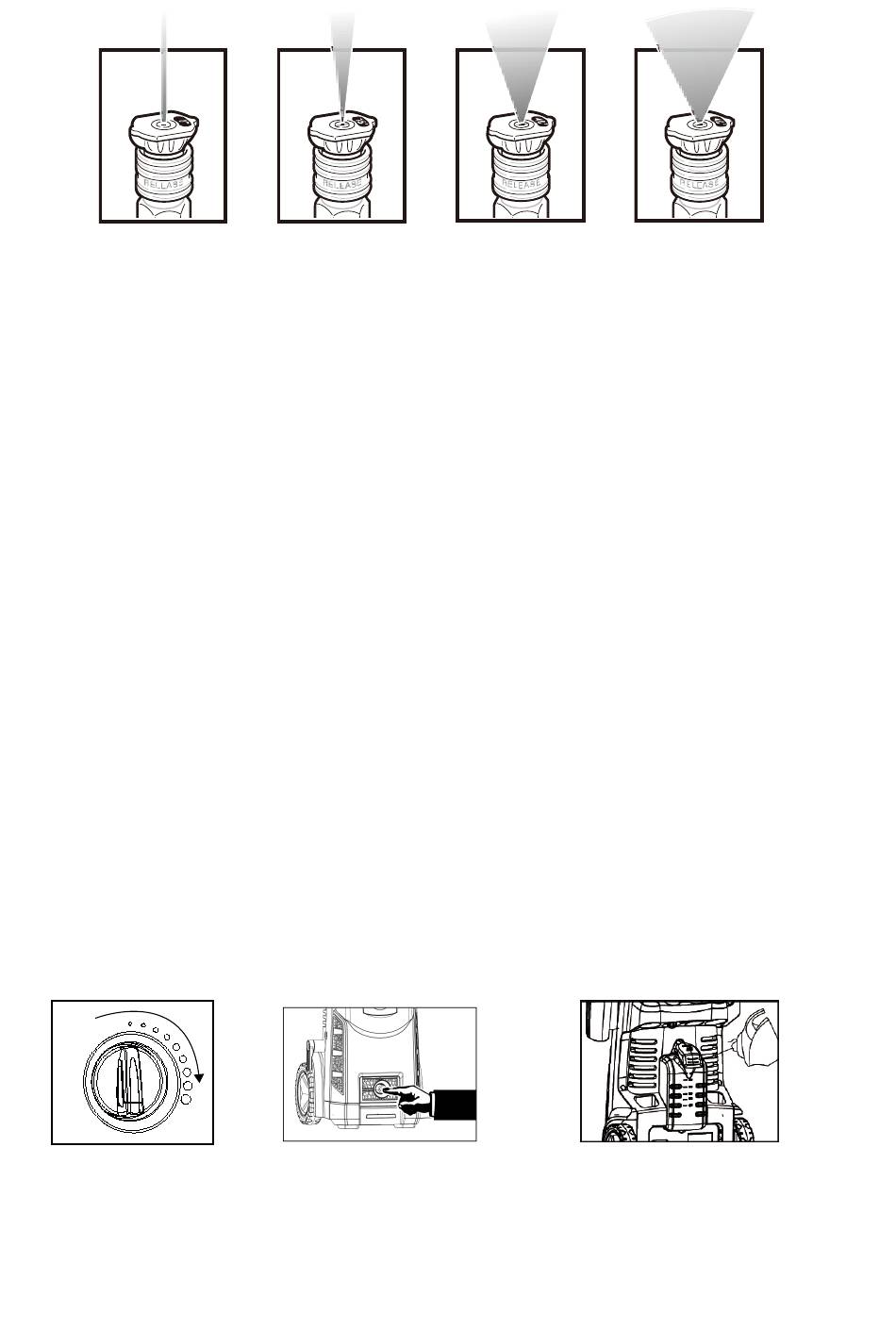

Fig 1 Fig2 Fig 3 Fig 4
25° Nozzle – Green: This nozzle delivers a 25 degree spray pattern for
intense cleaning of larger areas. This nozzle should only be used on
areas that can withstand pressure from this nozzle. (fig 2)
40° Nozzle – White: This nozzle delivers a 40 degree spray pattern and a
less powerful stream of water. This nozzle can cover a wide area and
should be used for most general cleaning jobs. (fig 3)
Chemical Nozzle – Black: This nozzle is used to apply special chemicals
and cleaning solutions. This nozzle produces the weakest pressure
stream of the five nozzles. (fig 4)
The nozzles are stored in receptacles on a panel mounted to the handle
of the washer. Colors on the panel identify nozzle location and spray
panel.
WATER INLET SCREEN
This switch is used to adjust the flow rate of cleaning solution when
using the washing machine. When you rotate clockwise, the flow rate of
the cleaning solution will increase (fig. 5).
The water inlet filter must be inspected regularly, so as to avoid
blockage and restriction in the water supply to the pump (fig 6).
Fig 5 Fig 6 Fig 7
44
