Page 1

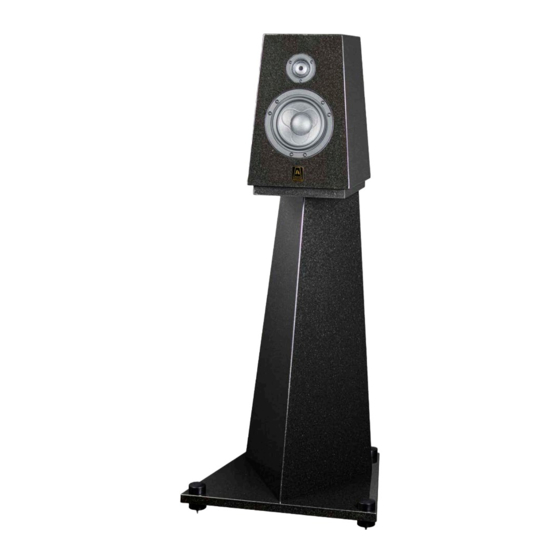

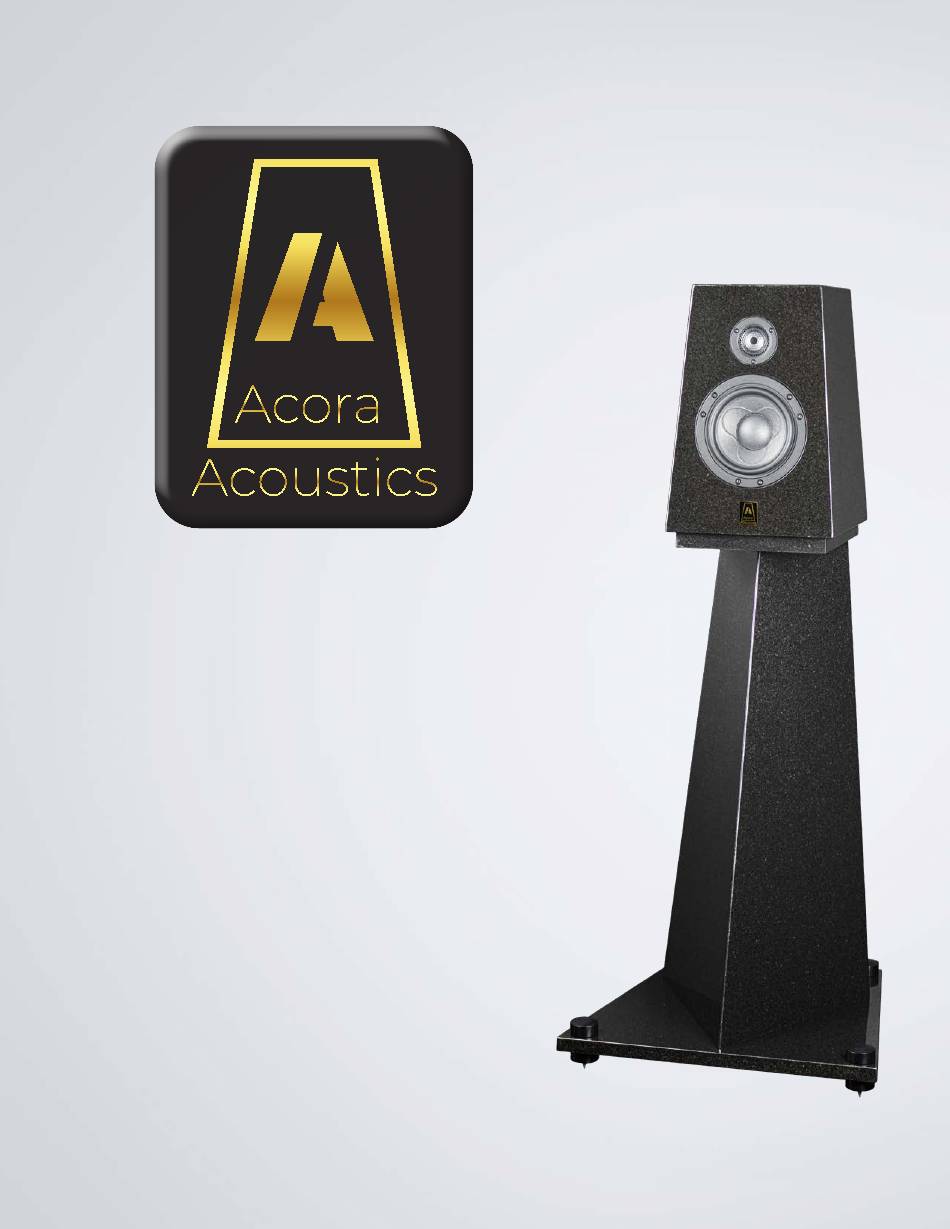

Acora Acoustics -Hear The Truth- Owner’s Manual Standmount Speaker (SRB shown with optional SRS Stands)
Page 2
SRBs that we feel you should expect. The SRB loudspeaker, as it is in a full granite enclosure, is quite heavy and should not be placed or re-positioned by a single person, seek qualified assistance such as your Acora Acoustics dealer or consultant.
Page 3
Please use extra caution when unpacking the SRB alone. Have your dealer or consultant perform or at least assist with this process. The SRB is heavy and should not be moved without qualified assistance. 1) Remove the speaker from the carton by removing the 4 clips on the lower edge of the carton (see below), then lifting the top straight up.
Page 4
Failing to do this could result in damage to your amplifier. The connection block on the SRB will accommodate bare wire, spade lugs, or banana terminations. As you face the back of the speaker, the terminal on your left is the - NEG connector and the right is the + POS.
Page 5
Amplifier Requirements and Power Handling While conditions vary widely, such as room size, preferred listening level, and content being listened to, these basic guidelines may be of value when mating the SRBs with the right amplifier for you. Remember, it is more likely to damage a speaker by using an amplifier with insufficient power required to drive the speakers to a desired volume, than it is to damage the speakers with exsessive power.
Page 6
Suggested amplifier range - 10w - 150w Sensitivity - 86.5 1w/1m Frequency Range - 43Hz - 35KHz Enclosure - High Polish Black Granite 2cm Exterior dimensions - 9” x 11” x 13” Weight - 58lbs each (SRB shown with optional SRS Stands)
Page 7
Caring for your Acora Acoustics The SRB granite enclosures require minimal care. We have included a small bottle of granite polish and a polishing mitt. These will restore the gloss and luster to your speakers’ enclosure, however it will cause damage your speakers’ drivers. Do NOT spray polish on the drivers, do NOT use a damp cloth of any kind on the drivers themselves.
Page 8
Please, Enjoy! Acora Acoustics -Hear The Truth- 165 Milner Ave Scarborough, ON, Canada M1S 4G7 (647) 812-3933 info@acoraacoustics.com...
