IRC POWER SLIDE CONTROL Manual page 17

7.3 Sensors check

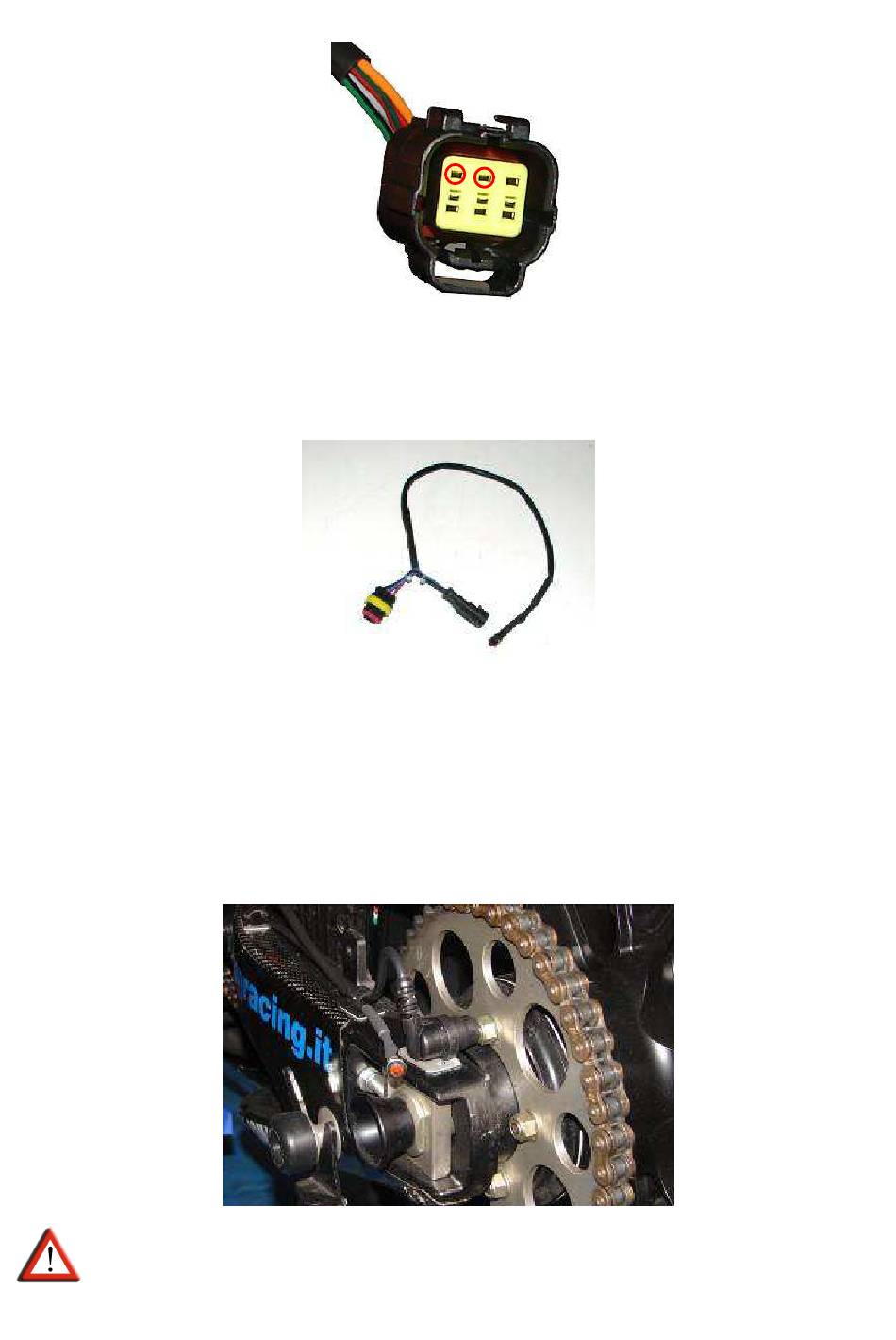

To check that sensors read in proper manner, disconnect the sensor and connect the
proper tool to be ordered apart.
Switch on the PSC and SLOWLY rotate the wheel. Led must flash whenever the sensor read
the target surface.
If the check sensor's kit is not available, take an amperohmeter set on 20v. Leaving the
sensor connected to the PSC, connect the "-" to ground and the "+" to the blue wire of
the sensor. Switxch the PSC on and slowly rotate the wheel. The sensor will read "0v"
whenever the target surface will be read.
WARNING
on/off or volts variations. Take care in case of reading on holed screws.
: check that the target surface is read continuously, i.e. without led
17 di 18
