Using and Configuring the SD1000 Serial to Bluetooth Adaptor
Introduction

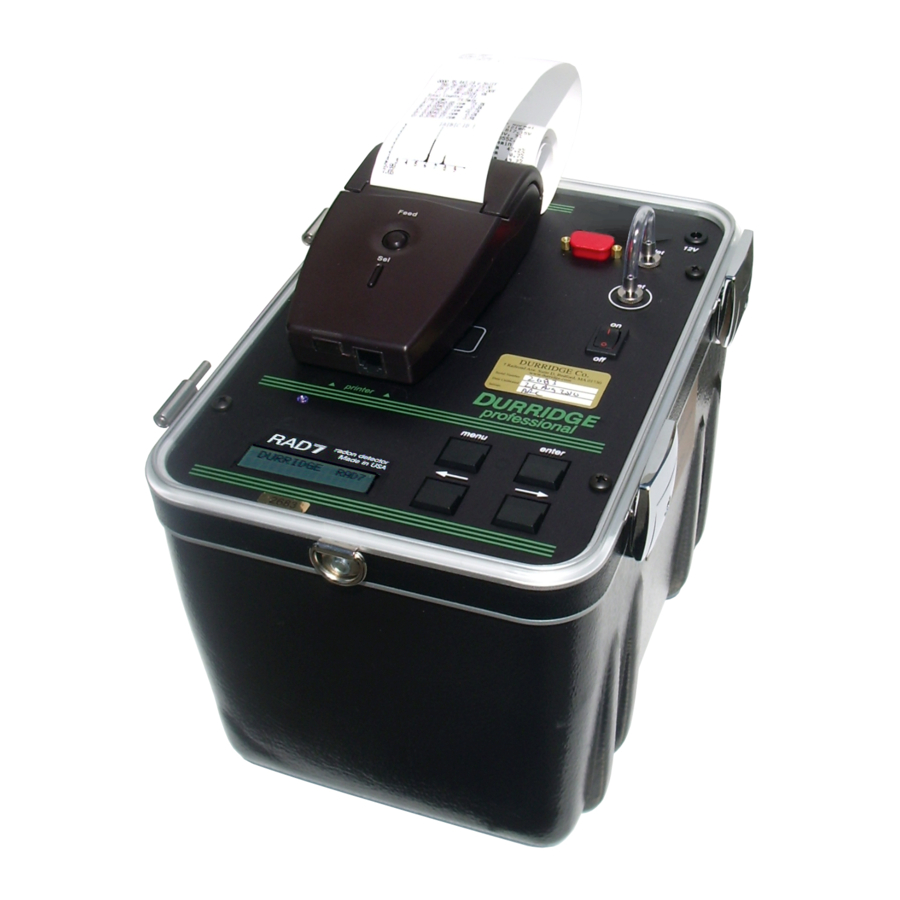

The Parani SD1000 Serial to Bluetooth Adaptor facilitates the transmission of radon data between a
DURRIDGE RAD7 radon monitor and a Bluetooth-enabled Windows or macOS computer running
DURRIDGE's CAPTURE software. This makes it faster and more convenient to perform graphing and
real-time data analysis. The SD1000 adaptor has been tested across distances exceeding 40 meters,
through walls and trees, and it is known to support 100 meter communication along uninterrupted
lines of sight. It can be powered by either a USB connection or a 3.7V Li-ion battery, which is rated for
16 hours of continuous use.
Using the SD1000 Adaptor with the RAD7
Preparation:
If your computer does not have built-in Bluetooth connectivity, connect a USB Bluetooth dongle and
install any necessary drivers. Then restart the computer.
Pairing the SD1000 Adaptor to the Computer:
1. Plug the Parani SD1000 Serial to Bluetooth Adaptor into the RAD7's RS232 DB9 socket. Make
sure the SD1000 adaptor's power cable is attached to a powered USB socket. Alternatively
connect the optional SD1000 battery. Slide the SD1000 adaptor's power switch ON.
2. Pair the SD1000 adaptor to the computer:
• On Windows, use the Control Panel to access the Bluetooth controls, and pair the SD1000-
Bluetooth adaptor. When prompted to enter a pairing code, enter 0000. When the pairing has
succeeded, a notification will appear.
• On macOS, open System Preferences and select Bluetooth. Use the controls to locate and
add the SD1000 adaptor. The system will automatically connect with the password 0000.
3. Once pairing is complete, a virtual serial port (aka COM port) will be created on your computer,
making it possible for CAPTURE to connect the the RAD7 via Bluetooth.
RAD7 Bluetooth Connectivity Guide
Revision 1.2 2021-08-06
DURRIDGE Company Inc.
900 Technology Park Drive
Billerica, Massachusetts 01821
1
978.667.9556
www.durridge.com
info@durridge.com
Continued on next page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DURRIDGE RAD7
Summary of Contents for DURRIDGE RAD7
- Page 1 Then restart the computer. Pairing the SD1000 Adaptor to the Computer: 1. Plug the Parani SD1000 Serial to Bluetooth Adaptor into the RAD7's RS232 DB9 socket. Make sure the SD1000 adaptor's power cable is attached to a powered USB socket. Alternatively connect the optional SD1000 battery.
- Page 2 4. CAPTURE should detect the Bluetooth-enabled RAD7. If it does not, verify that the SD1000 adaptor has been paired with the computer, as described above. 5. Once the Bluetooth-enabled RAD7 has been detected, it will be possible to proceed with all of the standard CAPTURE operations, including downloading and graphing RAD7 data. For more information on using CAPTURE, please refer to the CAPTURE User’s Manual at ...
- Page 3 Customers who purchase the Parani SD1000 adaptor from DURRIDGE will receive the adaptor preconfigured for use with the RAD7. If the adaptor’s settings are later modified, or if the adaptor is purchased from another vendor, it may be necessary to reconfigure the adaptor as described below.
- Page 4 • Set Command Response to OFF. This makes it possible for the SD1000 adaptor to operate without disrupting the RAD7. Note: If Command Response is left ON, the RAD7 will be flooded with unusable serial data and it may become corrupted and inoperable.
