Summary of Contents for Rize City MD

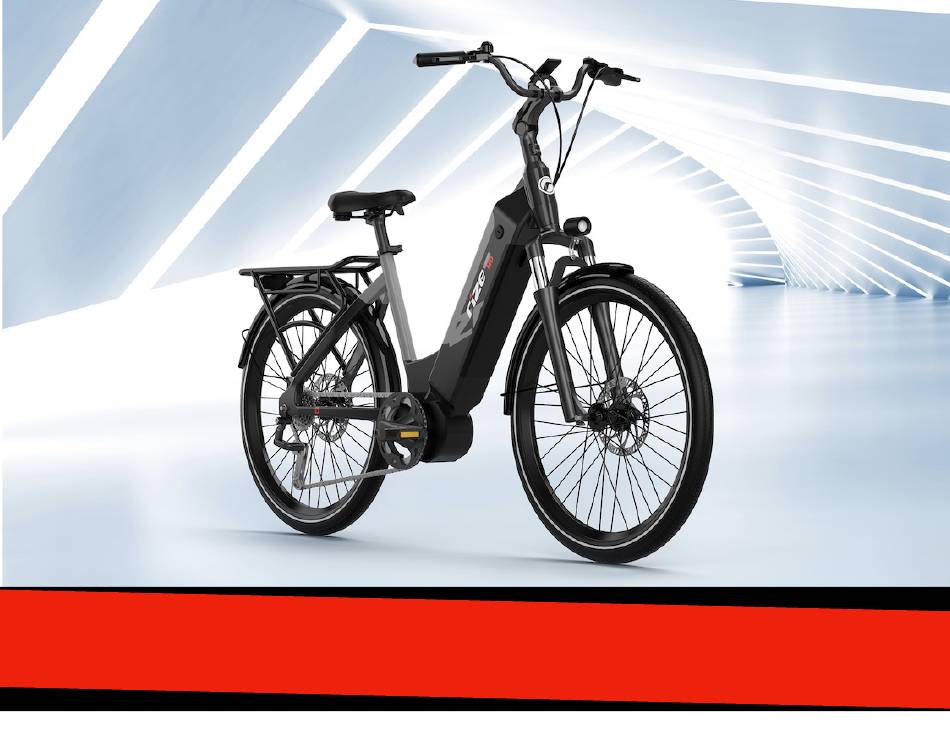

  • Page 1
 Owner’s Manual Models: City MD...
  • Page 2
...

  • Page 3: Table Of Contents

    Content Introduction LCD Display …………….…… 1 …………….…… 9 Safety Check Switch Power ON / OFF … ………….…… 9 …………….…… 2
 Power Assist Level …………….…… 9 General Information …………….…… 3 Throttle …………….…… 9 Liability Disclaimer …………….…… 3 Headlight and Taillight …………….…… 9 Assembly …………….……...

  • Page 4: Introduction

    Introduction Rize on . . .
 Congratulations on purchasing your new Rize bike! You have chosen a bike that will give you an unreal riding experience, and you have chosen wisely. Please read this Owner’s Manual carefully before using your new e-bike.

  • Page 5: Safety Check

    Do not try to stop your bike using your feet, as this may cause the user to lose balance. When walking or carrying your bike, turn off the power to avoid accidentally switching on the motor. If the motor is accidentally switched on, immediately apply the brakes to cut off power to the motor. © 2021 Rize Bikes...

  • Page 6: General Information

    You are responsible for your own actions while using an electric bike. Rize Bikes is not responsible nor liable for any accidents or injuries (whether caused by you or others) that may occur during use. We recommend contacting your insurance provider to determine whether or not your current insurance policy covers you in the event of an accident.

  • Page 7: Assembly

    5. Insert spring (A) pointing inward into the left side of the quick release skewer and tighten the nut. 6. Close the quick release lever and tighten by turning clockwise. 4. Insert 5. Tighten 6. Close © 2021 Rize Bikes...

  • Page 8: Rear Wheel

    1. Place the fender hook on the front side of the fork arch at the highest position. 2. Insert the bolt into the headlight holder and fender hook, and tighten on the fork arch. 3. Use the bolts mounted on the fork to tighten the fender stays. © 2021 Rize Bikes...

  • Page 9: Pedals

    25 N.m) Do not raise the seat post beyond the minimum insertion point line. Doing so WARNING may cause the seat post or frame to break and can result in serious injury or death. © 2021 Rize Bikes...

  • Page 10: Chain Slap Guard

    The battery keys are attached to the handlebar. Insert the key into the key port, turn clockwise, and pull the battery or battery lever. Failure to carry out proper assembly, operation, and/or
 WARNING maintenance could result in serious injury or death.
 © 2021 Rize Bikes...

  • Page 11: Battery Care

    Avoid storing the battery in places of high temperature or high humidity. • Charge the battery to 70% if not used for two months. The battery will slowly discharge over time. When the battery reaches • 20% charge it again to 70%. © 2021 Rize Bikes...

  • Page 12: Lcd Display

    The Auto Light mode is turned ON by default. To turn ON / OFF the lights manually, hold the headlight button for one second. Walk Mode Press and hold the - (down) button to start the walking mode. This feature will operate the motor at a relatively low speed to assist you in walking the bike. © 2021 Rize Bikes...
  • Page 13
 © 2021 Rize Bikes...

  • Page 14: Data Mode Display

    3. bL0 = Light Sensitivity (0 - 5) 4. bL1 = Backlight brightness (1 - 5) 5. OFF = Auto off LCD screen (1 - 9) minutes
 The LCD screen switches OFF automatically when not in use. Select from 1 to 9 minutes. © 2021 Rize Bikes...

  • Page 15: Advance Settings

    Error 13: Battery temperature fault (check battery) Error 14: Motor temperature fault (check motor) Error 21: Speed sensor fault (check installation position of speed sensor) Error 22: BMS communication fault (replace battery) Error 30: Communication fault (check controller connection)
 © 2021 Rize Bikes...

  • Page 16: Maintenance

    Park your bike indoors during wet conditions. It requires proper maintenance to ensure all electrical systems are working • correctly, and to prevent your bike from becoming rusty and corroded. Avoid transporting your bike on a vehicle rack during rain, as this may allow water to infiltrate the electrical components. • © 2021 Rize Bikes...

  • Page 17: Legal Requirements

    Serial Number It is important to keep a record of your serial number as this will be required by the police in case of theft. Rize Bikes does not retain serial numbers of bikes sold. It is your sole responsibility to take note of the serial number upon receiving your bike.
...

  • Page 18: Warranty

    • Damage or failure as a result of abuse, neglect, lack of maintenance, misuse, or accidents • Damage resulting from improper charging of the battery or use of any charger not supplied by Rize Bikes • Replacing headlights and taillights Installation of any electrical components not originally supplied by Rize Bikes will void the warranty.
...
  • Page 19
 If you have any other questions please refer to the Rize Bikes Help Center. Help Center: help.rizebikes.com Email: support@rizebikes.com Toll Free: 1-888-600-1545 This owner’s manual is subject to change without notice.  Please visit help.rizebikes.com to download the latest version.
  • Page 20 v.21818...
