BARCON LHC/PPC
Operation of devices with displays

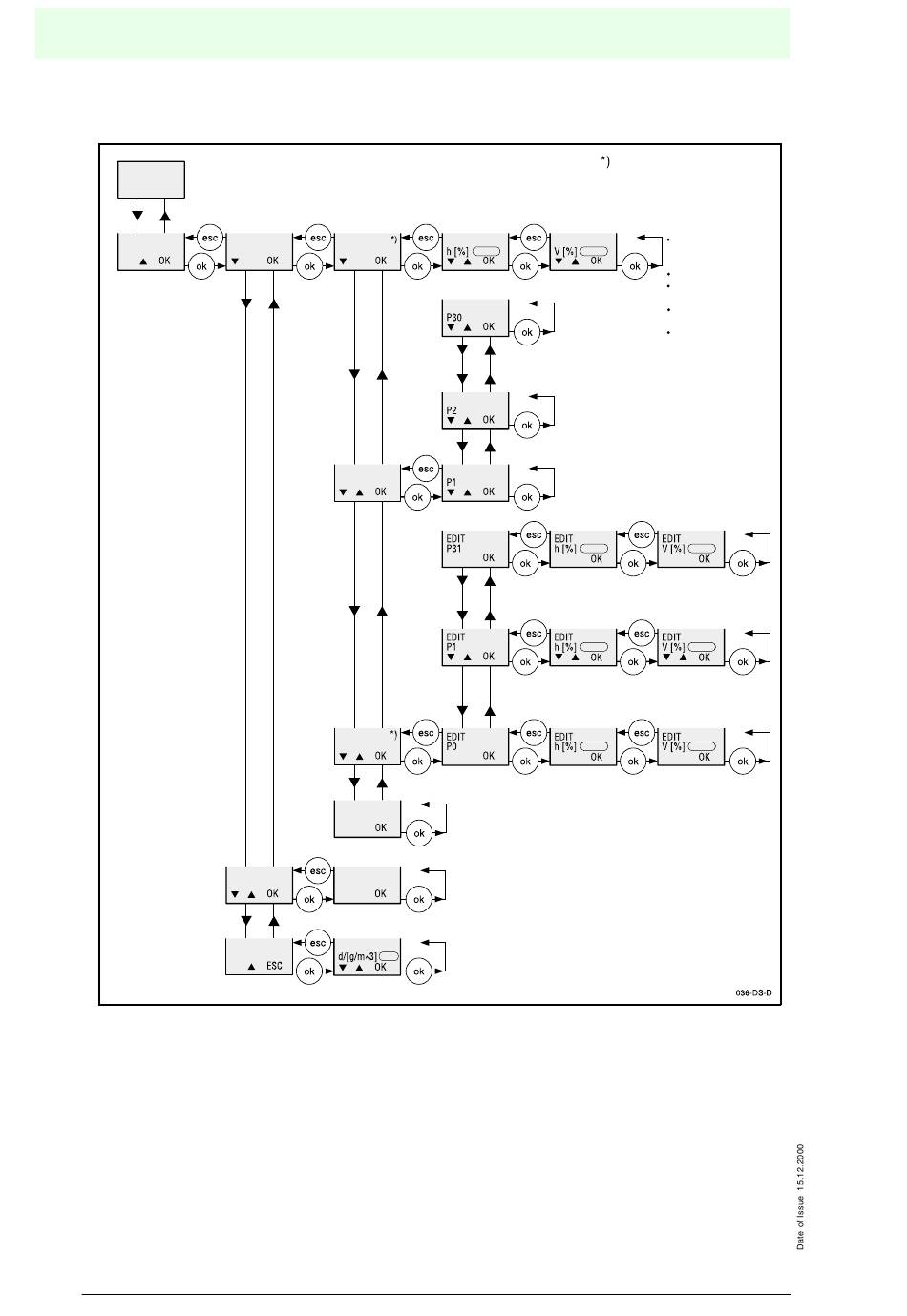

8.5.4 Main menu: evaluation

MAIN MENU
EVALUATION
EVALUATION
FUNCTIONS
Enter height values, which are each assigned a volumetric value of measure for tank
linearization. The linearization and the assignment of the 4 mA ... 20 mA output signal
are converted into tank volumes using this value pair.
Subject to reasonable modifications due to technical advances.
36
Pepperl+Fuchs Group • Tel.: Germany (06 21) 7 76-0 • USA (330) 4 25 35 55 • Singapore 7 79 90 91 • Internet http://www.pepperl-fuchs.com
EVALUATION REF. POINT
REF. TABLE INSERT
REF. POINT
DELETE
TABLE
EDIT
TABLE
ACTIVATE ?
EVALUATION LINEAR
LINEAR ACTIVATE ?
DENSITY
EVALUATION
DENSITY
INSERT INSERT
DELETE
The selected
tag (value pair)
is deleted
DELETE
DELETE
The preset
linearization table
is activated
The linear correlation
between input and
output is set
The density of
the medium is set
Copyright Pepperl+Fuchs, Printed in Germany
The level value and volume value
always be adjusted or verified in
order to store a value pair.
Entry of a new value pair
for the table used in
tank linearization
Entry of the level in %
Entry of the associated
volume in %
It is possible to enter up to
30 value pairs
The value pair for 0 % (P0)
and 100 % (P31) are fixed
The upper limit
can only be veri-
fied, not altered
Selected tag
(value pair:
level/volume)
is altered
The lower limit
can only be veri-
fied, not altered
