Summary of Contents for BrookVent aircycle ONE 100

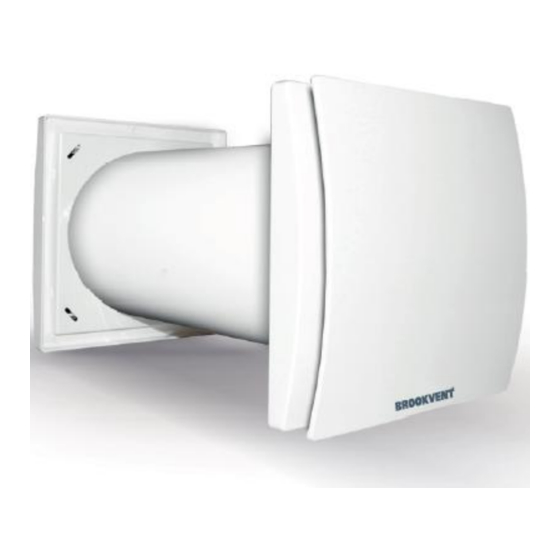

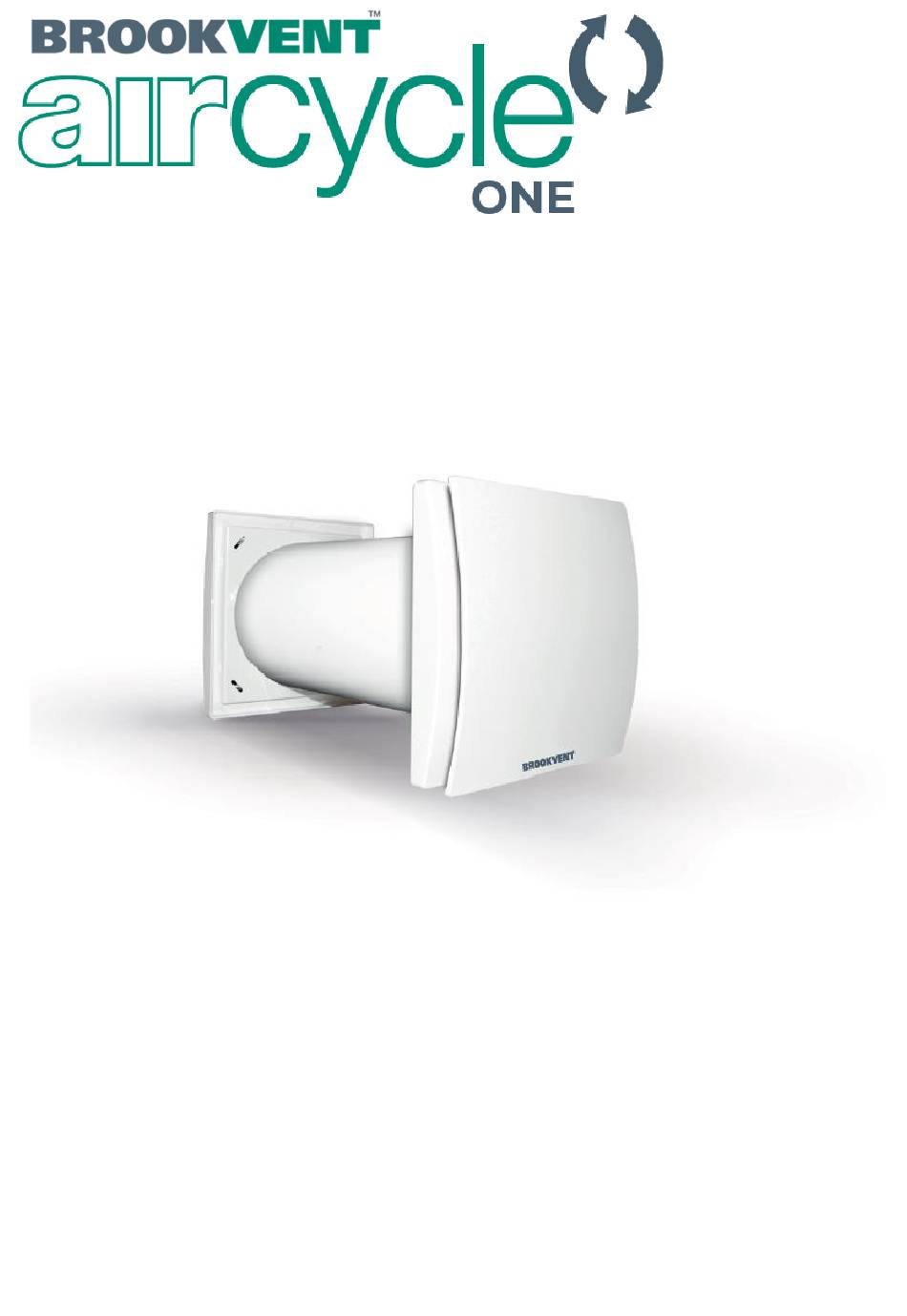

- Page 1 Installation, maintenance & user manual Applicable to the following aircycle ONE models: PRODUCT CODE DESCRIPTION AF 90-CYC-ONE-100 aircycle ONE 100 AF 90-CYC-ONE-150 aircycle ONE 150 brookvent.co.uk...
-
Page 2: Table Of Contents
CONTENTS PLEASE KEEP THESE INSTRUCTIONS WITH THE PRODUCT. Please read this manual fully prior to installing the MVHR unit. Introduction ........................2 Model Variations ......................... 2 Product Guarantee ......................3 Safety ..........................4 General Safety ........................4 Responsibility of the Installer....................5 Responsibility of the Occupant ................... -
Page 3: Introduction
(for example with the option “summer free cooling”), it is recommended to set the unit in “extract-only” or “intake-only” mode and NOT to switch it off. Model Variations PRODUCT CODE DESCRIPTION AF 90-CYC-ONE-100 aircycle ONE 100 AF 90-CYC-ONE-150 aircycle ONE 150 2/19... -
Page 4: Product Guarantee
In the instance of a defect, Brookvent may repair the product, replace the product free of charge or refund the cost of the product at Brookvent’s own discretion. In terms of installation, operation and maintenance please follow all instructions provided. -
Page 5: Safety
Safety The following information must be read carefully to ensure safe installation and operation of the unit. General Safety The device should not be used for applications other than those specified in this ✓ manual. After removing the product from its packaging, verify its condition. In case of ✓... -
Page 6: Responsibility Of The Installer
disconnection under overvoltage category III conditions (contact opening distance equal to or greater than 3mm). If the supply cord is damaged, it must be replaced by the manufacturer, its ✓ service agent or similarly qualified persons to avoid a hazard. Do not obstruct the fan or exhaust grille to ensure optimum air passage. -
Page 7: Specifications/ Dimensions
Specifications/ Dimensions Product versions Product Version Weight aircycle ONE 100 2.3 kg 270:510 aircycle ONE 150 3.9 kg 300:560 Detailed Specification Inner ventilation unit material: high quality, impact and UV-resistant ABS colour ✓ RAL 9010. Asthetic front cover easily removable for cleaning without the need for tools. -
Page 8: Erp Directive - Regulations 1253/2014 - 1254/2014
ErP Directive - Regulations 1253/2014 - 1254/2014 Mark BROOKVENT Model aircycle ONE 100 aircycle ONE 150 SEC class SEC warm climates kWh/m -15.6 -16.2 SEC average climates kWh/m -37.5 -38.2 SEC cold climates kWh/m -75.6 -76.4 Energy label Unit typology... -
Page 9: Operation
Operation In both versions, the unit extracts air out for 70 seconds, then it supplies air in for the same time. When heated air is pulled (extracted) from inside the room, it warms up the heat exchanger; when the cold air is pushed (supplied) in the room, it gets preheated, recovering most of thermal energy which would be otherwise lost in the ventilation process. -
Page 10: Jumper Positions
OPTION 2: If two or more units are not connected under the same main switch, to reset the synchronisation, press at the same time the black pin of each unit (fig. 33) for at least 3 seconds. If two or more units are controlled by means of the same controller (Air Controller or similar), they always operate in a synchronised way.Wiring diagram as per fig. -
Page 11: Installation And Figures
Installation and figures 10/19... - Page 12 11/19...
- Page 13 12/19...
- Page 14 13/19...
- Page 15 14/19...
- Page 16 15/19...
- Page 17 16/19...
- Page 18 17/19...
-
Page 19: Notes
Notes 18/19... -
Page 20: Customer Support
Customer Support At Brookvent we pride ourselves on providing Gold Standard after sales and support to all customers. Please feel free to contact one of our specialist team about any query you may have and we will be more than happy to assist you.
