Taylor 1200E Operating Manual

Multi gun drawn arc controllers
Hide thumbs Also See for 1200E:
Table of Contents

Advertisement

Quick Links

TAYLOR STUDWELDING
SYSTEMS LIMITED
OPERATING GUIDE
FOR TYPE
1200E & 1600E
MULTI GUN DRAWN ARC
CONTROLLERS
2, 3 & 4 GUN MODELS
V-21A

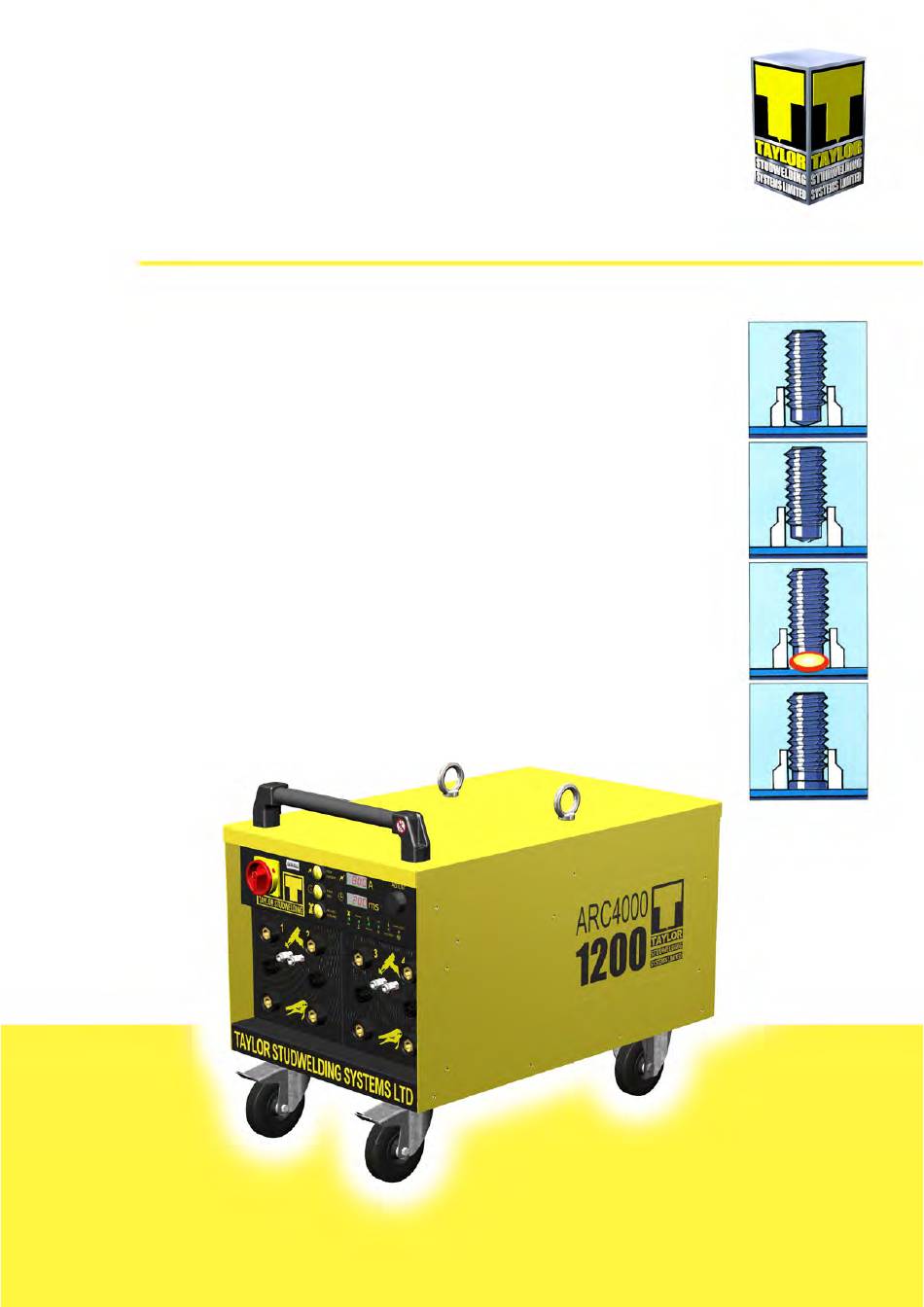

A TAYLORMADE DRAWN ARC STUDWELDING SYSTEM TO WELD UP TO 16mm REDUCED BASE STUDS
