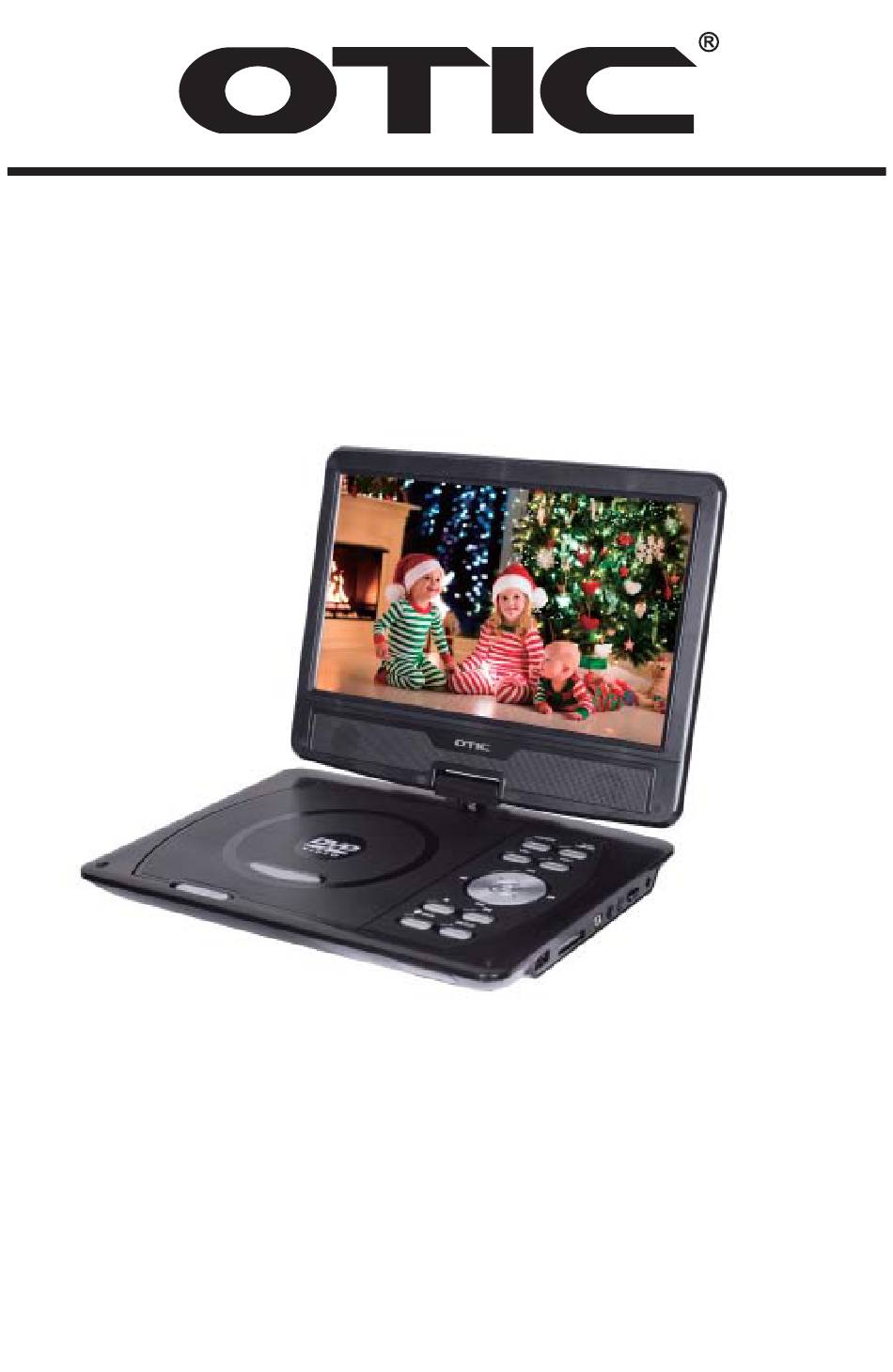

- Page 1 10.1" BLUETOOTH PORTABLE DVD PLAYER MODEL: HJ10PRB01 PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information..................3-8 General Operations.......................9 Remote Control Operation..................10-11 Bluetooth Operation......................11 About Discs........................12 Location of Controls....................13-14 Remote Control.......................15 Battery Installation......................16 Remote Control Working Range..................16 Power Source.........................17 Swivel Panel........................18 USB or Card Playback....................19 Other Way to Play......................20 System Setup........................21 Care and Maintenance....................22 Specifi... -
Page 3: Important Safety Information
IMPORTANT SAFETY INSTRUCTIONS The lightning fl ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of CAUTION: TO REDUCE THE RISK OF uninsulated dangerous voltage within ELECTRIC SHOCK, DO NOT REMOVE the product`s enclosure that may be of COVER (OR BACK). - Page 4 IMPORTANT SAFETY INSTRUCTIONS FCC NOTICE: WARNING This equipment has been tested and USE UNDER SUPERVISION OF AN found to comply with the limits for a Class ADULT DUE TO LONG CORD B digital device, pursuant to part 15 of This unit has a long AC cord or other long the FCC rules.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS 7 ) Do not block any ventilation 12 ) Use only with the cart, stand, tripod, openings. Install in accordance with bracket, or table specifi ed by the the manufacturer's instructions. manufacturer, or sold with the apparatus. Slots and openings in the cabinet and When a cart is used, use caution when in the back or bottom are provided for...
- Page 6 IMPORTANT SAFETY INSTRUCTIONS 16 ) Power lines 20 ) Service An outside antenna system should not be Do not attempt to service this product located in the vicinity of overhead power yourself as opening or removing covers lines or other electric light or power may expose you to dangerous voltage circuits, or where it can fall into such or other hazards.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS f ) When the product exhibits a distinct NOTES ON HANDLING: change in performance-this indicates a ● When shipping the unit, always use the need for service. original shipping carton and packing materials. For maximum 25 ) Note to CATV system installer protection, repack the unit as it was This reminder is provided to call the CATV originally packed at the factory.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS WARNING: NOTES ON MOISTURE CONDENSATION: - Do not use or leave the device in direct Moisture condensation damages the sunlight or a hot environment such as a DVD player. vehicle etc. that is in hot environment. Please read the following carefully. Overheating can damage the device.
-
Page 9: General Operations
GENERAL OPERATIONS 1. Lift up the panel and turn to desired angle. Slide the Power ON/OFF switch to "ON" position to power on the unit, the Blue Indicator on front of the player will light. 2. Slide the OPEN switch to left to open the disc door. Place the disc on the center spindle with label side facing up. -
Page 10: Remote Control Operation
REMOTE CONTROL OPERATIONS LCD ON/OFF: Press to turn on or off the LCD display. POWER: Press to turn to standby mode, press again to turn on. VOLUME +/–: Press to increase or decrease volume. MUTE: Press to turn off the sound, press again to resume. SOURCE: Press to switch to AV IN mode, press again to resume normal mode. -
Page 11: Bluetooth Operation
REMOTE CONTROL OPERATIONS ~ Press the GOTO button the third time to display the time selection under Chapter. Using the Direction and Numeric buttons to enter the desired time. The unit will start play the movie from the selected time automatically. GOTO ( CD ) ~ Press the GOTO button once, using the Numeric and OK buttons to set the desired playback time of disc. -
Page 12: About Discs
ABOUT DISCS The region number for this DVD Player is: 1 See the following page for information regarding region numbers. PLAYABLE DISCS: The following discs can be played back on this DVD player: DISC TYPES: Data on most DVDs is divided into sections called titles and then into subsections called chapters, each of which is given a title or chapter number. -
Page 13: Location Of Controls
LOCATION OF CONTROLS SOURCE USB SD VOL- VOL+ PAIR SETUP OPEN 1. SOURCE: Press to switch to AV IN mode, press again to resume normal mode. 2. DVD/USB/SD: When USB device and/or SD Card was inserted, press repeatedly to select the playback source as desired. 3. - Page 14 LOCATION OF CONTROLS Right Side View: AV OUT AV IN DC IN CARD 12. USB port 16. AV IN jack 13. Card slot (for SD/MMC card) 17. Power ON/OFF switch 14. Earphone jack 18. DC IN jack 15. AV OUT jack Front Side View: 19 20 21 19.
-
Page 15: Remote Control
REMOTE CONTROL 1. POWER button 15. SLOW button 2. VOLUME +/– buttons 16. LCD ON/OFF button MUTE button 17. Numeric buttons 4. SOURCE button 18. SETUP button 5. Direction buttons Skip Previous button Skip Next button Fast Backward button Fast Forward button 21. -
Page 16: Battery Installation
BATTERY INSTALLATION BATTERY INSTALLATIONS (Remote Control) 1. Press the tabs on the battery door and lift it off. 2. Install two (2) x AAA size batteries into the battery compartment as the fi gure on right and the polarity markings inside battery compartment. 3. -
Page 17: Power Source
POWER SOURCE Charging by AC/DC Adapter: 1. Connect the small plug of AC/DC Adapter to the DC IN Jack on the right of unit. 2. Connect the AC/DC Adapter to the wall outlet with AC 100-240V~; 50/60Hz. 3. During charging in power on mode, the Charge Indicator will light up red. When fi... -
Page 18: Swivel Panel
SWIVEL PANEL The viewing angle of the swivel panel can be adjusted as below as desired:... -
Page 19: Usb Or Card Playback
USB OR CARD PLAYBACK 1. Insert the USB Device or SD/MMC memory card into the USB port/card slot as the fi gure below. 2. In power ON mode, press the DVD/USB/SD button, the "DISC, CARD, USB" selection window will pop up on the screen. Using the Direction buttons to select and highlight the desired source then press the OK button to confi... -
Page 20: Other Way To Play
OTHER WAY TO PLAY Connecting to a TV or Video Player (such like DVD; VCR; DVR Players ... ) with AV connection cable. NOTE: ● The default setting of the unit is AV OUT, if connect to external video player (such like DVD;... -
Page 21: System Setup
SYSTEM SETUP Setting Menus: Press the SETUP button, the setting menu will appear on the screen as below. Using the Direction , ▲ , ▼ buttons to select and highlight the function you need to set or reset. Press the OK button to enter or confi rm the selection. After setting, press the SETUP button to save and exit. -
Page 22: Care And Maintenance
CARE AND MAINTENANCE Caring for Disc Treat the disc carefully. Handle the disc only by its edges. Never allow your fi ngers to contact with the shin, unprinted side of the disc. ● Do not attach adhesive tape, stickers, etc. to the disc label. ●... -
Page 23: Specification
SPECIFICATION Power Source: Built-in DC 12V 1A Lithium-ion rechargeable battery, recharge by: DC 7.4V 2000mAh Disc Compatibility: DVD/VCD/CD/CD-R/CD-RW/DVD±R/DVD±RW Charging time: about 5 hours Playback time: about 5 hours ACCESSORIES 1 x User's Manual 1 x AC/DC Adaptor 1 x Remote Control 1 x Car Adaptor 1 x Earphone 1 x AV Cable...
