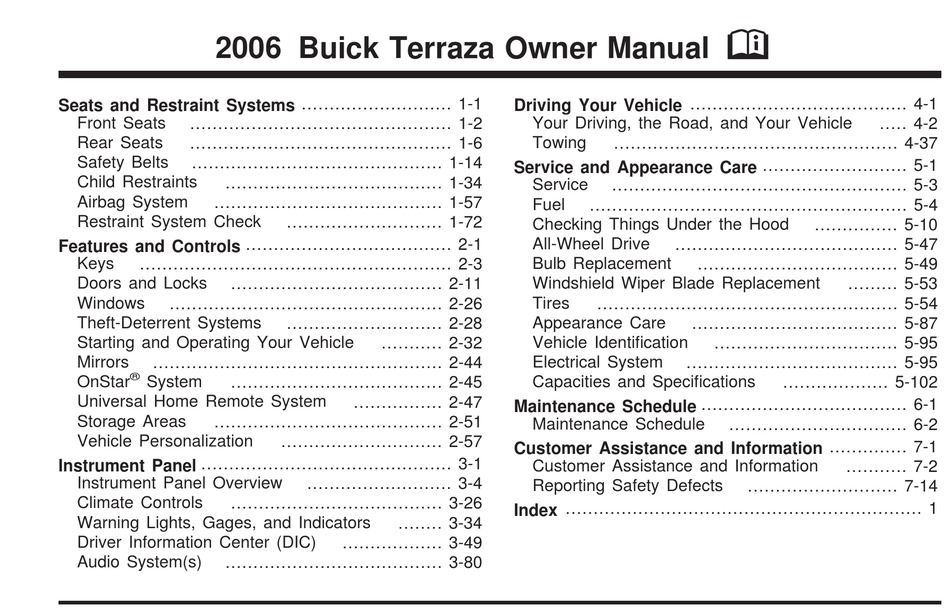

2006 Buick Terraza Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Rear Seats

............................................... 1-6

Safety Belts

............................................. 1-14

Child Restraints

....................................... 1-34

Airbag System

......................................... 1-57

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

...................................... 2-11

Windows

................................................. 2-26

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-44

®

OnStar

System

...................................... 2-45

Universal Home Remote System

Storage Areas

......................................... 2-51

Vehicle Personalization

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-26

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-80

............................ 1-72

............................ 2-28

........... 2-32

................ 2-47

............................. 2-57

.......................... 3-4

........ 3-34

.................. 3-49

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-37

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-4

Checking Things Under the Hood

All-Wheel Drive

........................................ 5-47

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-54

Appearance Care

..................................... 5-87

Vehicle Identiﬁcation

Electrical System

...................................... 5-95

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

M

............... 5-10

.................................... 5-49

......... 5-53

................................. 5-95

................... 5-102

................................ 6-2

........... 7-2

........................... 7-14

..... 4-2

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the TERRAZA 2006 and is the answer not in the manual?

Questions and answers

Summary of Contents for Buick TERRAZA 2006

Page 1 2006 Buick Terraza Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-6 Safety Belts ... 1-14 Child Restraints ... 1-34 Airbag System ... 1-57 Restraint System Check ... 1-72 Features and Controls ... 2-1 Keys ...
Page 2: Canadian Owners
GENERAL MOTORS, GM, the GM Emblem, BUICK, and the BUICK Emblem are registered trademarks and the name TERRAZA is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without notice.
Page 3: Safety Warnings And Symbols
Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4: Vehicle Damage Warnings
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Manual Passenger Seat ...1-2 Six-Way Power Seats ...1-2 Eight-Way Power Seats ...1-3 Heated Seats ...1-3 Reclining Seatbacks ...1-4 Head Restraints ...1-6 Rear Seats ...1-6 Rear Seat Operation ...1-6 Captain Chairs ...1-6 Third Row Seat ...1-11 Safety Belts ...1-14 Safety Belts: They Are for Everyone ...1-14 Questions and Answers About Safety Belts ...1-18...
Page 8: Manual Passenger Seat
Front Seats Manual Passenger Seat Use the lever located on the front of the seat to adjust the seat forward or rearward. Pull up on the lever to unlock the seat. Slide the seat to where you want it and release the lever.
Page 9: Eight-Way Power Seats
Eight-Way Power Seats Your vehicle may have this feature. If it does, the eight-way power seat control is located on the outboard sides of the driver’s and front passenger’s seats. • Move the front of the control up or down to adjust the front portion of the seat up or down.
Page 10: Reclining Seatbacks
Both indicator lights next to the heated seat symbol will be lit to indicate that it is on the high setting. Press the button a second time to go to the low setting. One indicator will be lit. Press the button a third time to turn the heated seat off.
Page 11 Do not have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 12: Rear Seat Operation
Head Restraints Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. The head restraints are adjustable on the ﬁrst and second row seats.
Page 13: Folding Or Reclining The Seatbacks
Folding or Reclining the Seatbacks CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 14 Removing a Captain Chair (without a Side Impact Airbag) If your vehicle has captain chairs with side impact airbags, the seats cannot be removed. To remove a captain chair, do the following: 2. The seat can then be lifted off the front ﬂoor pins and removed from the vehicle.
Page 15 Installing a Captain Chair (without a Side Impact Airbag) CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 16 To install a captain chair, do the following: 1. Hook the front latches over the front ﬂoor pins. 1-10 2. Push the rear of the seat down to lock the rear latches onto the rear set of ﬂoor pins. 3. Push and pull on the seat to be sure it is properly attached.
Page 17: Third Row Seat
Third Row Seat Your vehicle may have a third row seat. It is a full bench seat and may come with the convenience center. See Convenience Center on page 2-56 for more information. The third row seat can be removed and replaced, or with the seatback folded, it will lie ﬂat with the convenience center.
Page 18 Removing the Third Row Seat 1. Remove the convenience center, if equipped. See Convenience Center on page 2-56 for more information. 2. Make sure all items are off the seat. 3. Put the seatback in its folded position before removing the seat. See “Folding the Seatback(s)” earlier in this section.
Page 19 CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 20: Safety Belts: They Are For Everyone
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 21: Why Safety Belts Work
Your vehicle has indicators to remind you and your passengers to buckle your safety belts. See Safety Belt Reminder Light on page 3-37 and Passenger Safety Belt Reminder Light on page 3-37. In most states and in all Canadian provinces, the law says to wear safety belts.
Page 22 Put someone on it. 1-16 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 23 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-17...
Page 24: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-18 Questions and Answers About Safety Belts...
Page 25: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 26 The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.
Page 27 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 28 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. 1-22 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 29 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 30 What is wrong with this? The belt is over an armrest. 1-24 CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
Page 31 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 32 What is wrong with this? The belt is twisted across the body. 1-26 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 33: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 34: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 35: Lap-Shoulder Belt
Lap-Shoulder Belt All rear seat positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 36 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 37: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear safety belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 38 2. Place the guide over the belt and insert the 3. Be sure that the belt is not twisted and it lies ﬂat. two edges of the belt into the slots of the guide. The guide must be on top of the belt. 1-32...
Page 39: Safety Belt Pretensioners
CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 40: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer will order you an extender. It is free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 41 What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 42 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? If the child is sitting in a seat next to a window, move the child toward the center of the vehicle.
Page 43: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 44 1-38 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 45 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
Page 46: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 47 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 48 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 49: Securing The Child Within The Child Restraint
When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 50: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 51: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) Your vehicle has the LATCH system. The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system Make sure that a LATCH-compatible child restraint...
Page 52 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 53 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Second Row Seating positions with top tether anchors. Third Row (Top Tether Anchor): For the second row seating positions, the top tether anchors are located on the seatback, near the base of each seat.
Page 54 Second Row For the center third row position, if equipped, the top tether anchor is located on the seatback, near the center of the third row seating position. This anchor can accommodate only one top tether. 1-48 Third Row Do not secure a child restraint in the right front passenger’s position or in the third row outboard positions, if equipped, if a national or local law requires that the top tether be attached, or if the instructions...
Page 55: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint,...
Page 56 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 57: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-45. For vehicles with a third row, there are no top tether anchors in the outboard seating positions.
Page 58 4. Pull the rest of the shoulder belt all the way out of 5. To tighten the belt, push down on the child restraint, the retractor to set the lock. pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 59: Securing A Child Restraint In The Right Front Seat Position
6. If your child restraint has a top tether, and the position that you are using has a top tether anchor, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and to Lower Anchors and Tethers for Children (LATCH) on page 1-45.
Page 60 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 61 You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
Page 62 5. Pull the rest of the shoulder belt all the way out of 6. To tighten the belt, push down on the child restraint, the retractor to set the lock. pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 63: Airbag System
7. Push and pull the child restraint in different directions to be sure it is secure. 8. If the airbag or airbags are off, the off indicator on the instrument panel will be lit and stay lit when the key is turned to RUN or START. If a child restraint has been installed and the on indicator is lit, turn the vehicle off.
Page 64 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 65 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 66: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-38 for more information.
Page 67 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has a side impact airbag for the driver, it is in the side of the driver’s seatback closest to the door. 1-61...
Page 68 If your vehicle has a side impact airbag for the right front passenger and/or the second row captain’s chairs (if equipped), it is in the side of the seatback closest to the door. 1-62 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 69: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 70: What Makes An Airbag Inﬂate
Your vehicle may or may not have a side impact airbag. See Airbag System on page 1-57. Side impact airbags are intended to inﬂate in moderate to severe side crashes. A side impact airbag will inﬂate if the crash severity is above the system’s designed “threshold level.”...
Page 71: What Will You See After An Airbag Inﬂates
Airbags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the frontal airbags, and only in moderate to severe side collisions for vehicles with a side impact airbag. What Will You See After an Airbag Inﬂates? After the airbag inﬂates, it quickly deﬂates, so quickly...
Page 72: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 73 The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the passenger’s airbag or airbags should be enabled (may inﬂate) or not.
Page 74 The passenger sensing system is designed to turn off the right front passenger’s airbag or airbags if: • the right front passenger seat is unoccupied • the system determines that an infant is present in a rear-facing infant seat • the system determines that a small child is present in a forward-facing child restraint •...
Page 75 If a person of adult-size is sitting in the right front passenger’s seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, turn the vehicle off and ask the person to place the seatback in the fully upright position, then sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended.
Page 76: Servicing Your Airbag-Equipped Vehicle
Aftermarket equipment, such as seat covers, can affect how well the passenger sensing system operates. You may want to consider not using seat covers or other aftermarket equipment if your vehicle has the passenger sensing system. See Adding Equipment to Your Airbag-Equipped Vehicle on page 1-71 for more information about modiﬁcations that can affect how the system operates.
Page 77: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, front end or side sheet metal or height, they may keep the airbag system from working properly.
Page 78: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 79: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 80 NOTES 1-74...
Page 81: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-11 Door Locks ...2-11 Power Door Locks ...2-12 Delayed Locking ...2-13 Automatic Door Lock ...2-14 Programmable Automatic Door Unlock ...2-14 Lockout Protection ...2-14 Dual Sliding Doors ...2-14 Power Sliding Door (PSD) ...2-17 Liftgate ...2-24...
Page 82 Section 2 Storage Areas ...2-51 Glove Box ...2-51 Cupholder(s) ...2-51 Overhead Console (With Rail) ...2-52 Overhead Console (Without Rail) ...2-53 Floor Console Storage Area ...2-53 Folding Tray ...2-54 Luggage Carrier ...2-54 Features and Controls Convenience Net (With Rear Convenience Center) ...2-55 Convenience Net (Without Rear Convenience Center) ...2-55 Convenience Center ...2-56...
Page 83: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 84: Remote Keyless Entry System
® Any new PASS-Key III key must be programmed before it will start your vehicle. See PASS-Key page 2-30 for more information on programming your new key. Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys.
Page 85: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 86 (Remote Vehicle Start): If your vehicle has this feature, you can start the engine from outside the vehicle. See “Remote Vehicle Start” at the end of this section for more detailed information. (Lock): To lock all doors and the liftgate, press the lock button on the remote keyless entry transmitter.
Page 87: Remote Power Sliding Door Operation
Remote Power Sliding Door Operation (Power Sliding Door): If your vehicle has one power sliding door, the remote keyless entry transmitter will have a button with a van symbol on it. Press and hold this button to open or close the power sliding door.
Page 88: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 89: Remote Vehicle Start
Remote Vehicle Start This feature allows you to start the engine from outside the vehicle. It may also turn the rear window defogger if the outside temperature is below 45°F (7°C). Laws in some local communities may restrict the use of remote starters.
Page 90: Remote Start Ready
After two remote starts have been provided, the vehicle’s ignition switch must be turned to RUN and then back to LOCK using the key before the remote start procedure can be used again. If you enter the vehicle after a remote start, and the engine is running, insert the key into the ignition switch and turn it to the RUN position to drive the vehicle.
Page 91: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 92: Power Door Locks
From the inside, use the manual or power door locks. To unlock either front door from the inside, pull back on the manual lever. To lock either front door from the inside, push the manual lever forward. 2-12 Power Door Locks Your vehicle has power door locks.
Page 93: Sliding Door Delayed Locking
Delayed Locking This feature allows the locking of the vehicle to be delayed until all doors have been closed for approximately ﬁve seconds. To activate the delayed locking feature, do one of the following: • Press the driver’s door power lock switch one time while the driver’s door is open.
Page 94: Automatic Door Lock
Automatic Door Lock All of the doors will lock automatically when you move the shift lever out of PARK (P). This feature cannot be disabled. If someone needs to get out of the vehicle while it is not in PARK (P), shift into PARK (P), or, have that person use the manual lever or the power door lock switch.
Page 95: Sliding Door Lock
Sliding Door Lock CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close.
Page 96: Sliding Door Security Lock
Lock either sliding door from inside the vehicle by moving the manual lever down. Unlock it by moving the lever up. With the power door locks, the sliding door lock has a delay feature. See Delayed Locking on page 2-13 and DIC Vehicle Personalization (Uplevel Only) on page 3-72.
Page 97: Canceling The Sliding Door Security Lock
If your vehicle has power sliding door(s), you can prevent power opening of the sliding door from the passenger power sliding door (psd) activation switch by pressing the psd second row passenger override (deactivation) switch located on the overhead console. See Power Sliding Door (PSD) on page 2-17.
Page 98 Power Sliding Door (PSD) Switches Your vehicle will have one of the following switch(es) located on the overhead console switchbank. If your vehicle has a single power sliding door (PSD), you have this switch. PSD Activation/Override (Deactivation) Switch 2-18 If your vehicle has dual power sliding doors, you have these switches.
Page 99: Power Sliding Door Operation
Your vehicle also has passenger power sliding door activation switch(es). If you have a single PSD, this switch is located in front of the passenger side sliding door. If your vehicle has dual PSDs, the switches are located in front of both sliding doors.
Page 100 If a power sliding door is locked, it cannot be unlocked and opened using the overhead console PSD switch(es) or the passenger PSD activation switch(es). The power sliding door must either be manually unlocked or unlocked using the power door unlock switch located on the driver’s or front passenger’s armrest, and then opened using the overhead or passenger PSD activation switch(es).
Page 101 If an object obstructs the power sliding door(s) while it is closing, the door will automatically reverse to the open position, provided it meets sufficient resistance. Resistance must be as strong as the force of the closing door, or stronger. The force of the closing door increases signiﬁcantly as the door approaches the latched position.
Page 102 CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut, turn on the power sliding door feature.
Page 103: Resetting The Power Sliding Door
Power Sliding Door Second Row Passenger Override (Deactivation) To help avoid accidental operation of the sliding door(s) by using the passenger PSD activation switch, press the override (deactivation) part of the overhead console switch. The door can still be manually opened from the inside or outside with the override (deactivation) on.
Page 104: Liftgate
If any of these conditions occur, the power sliding door may need to be reset. If your vehicle has the dual power sliding doors, both doors will have to be reset. To reset a door, do the following: 1. Check to be sure the power sliding door is unlocked and securely closed.
Page 105 CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
Page 106: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 107: Power Windows
Power Windows The switches on the driver’s door armrest control the front windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 2-33. The driver’s power window switch has two down positions.
Page 108: Sun Visors
Sun Visors To block out glare, you can swing down the visors and slide them along the rod to cover different areas of the front window. You can also remove them from the center mount and swing them to the side. Lighted Vanity Mirror Your vehicle has lighted vanity mirrors.
Page 109 Arming with the Power Lock Switch Your alarm system will arm when the key is removed from the ignition and you use the driver’s power door lock switch, with the driver’s door open or the passenger’s door power door lock switch with the passenger’s door open to lock the vehicle.
Page 110: Disarming With Your Key
Disarming with Your Key Your alarm system will disarm when you use your key to unlock the driver’s door. The security light will stop ﬂashing to let you know the system is no longer armed. If you would like your key not to disarm the alarm system, see DIC Vehicle Personalization (Uplevel Only) on page 3-72.
Page 111 If the engine does not start and the security message comes on, the key may have a damaged transponder. Turn the ignition off and try again. If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the instrument panel PASS KEY fuse.
Page 112: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one constant speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 113: Retained Accessory Power (Rap)
B (ACCESSORY): This is the position in which you can operate the electrical accessories, such as the radio. C (RUN): This is the position to which the switch returns after the engine is started and the ignition key is released. This is the position for driving. Even while the engine is not running, RUN can be used to operate your electrical accessories and to display some instrument panel warning lights.
Page 114: To Use The Engine Coolant Heater
3. If your engine still will not start, or starts but then stops, it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for a maximum of 15 seconds.
Page 115: Automatic Transaxle Operation
CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord will not reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.
Page 116 If you cannot shift out of PARK (P), ease pressure on the shift lever — push the shift lever all the way into PARK (P) as you maintain brake application. Then move the shift lever into the gear you wish. See Shifting Out of Park (P) on page 2-41.
Page 117: Warm-Up Shift
CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly. You could lose control and hit people or objects. Do not shift into a drive gear while your engine is running at high speed.
Page 118 Here are some times you might choose THIRD (3) instead of AUTOMATIC OVERDRIVE (D): • When driving on hilly, winding roads • When towing a trailer, so there is less shifting between gears • When going down a steep hill SECOND (2): This position gives you more power but lower fuel economy than THIRD (3).
Page 119: Parking Brake
Parking Brake The parking brake is located under the instrument panel on the driver’s side of the vehicle. To set the parking brake, hold the regular brake pedal down with your right foot and push down on the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on.
Page 120: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 121: Torque Lock
Torque Lock If you are parking on a hill and you do not shift your vehicle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 122: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
Page 123: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 124: Mirrors
Mirrors Outside Power Mirrors The controls, located on the driver’s door, operate both outside rearview mirrors. Push the top control to the left or right to choose either the driver’s or passenger’s outside rearview mirror. Leave the control in the center position to prevent moving the mirrors once they are adjusted.
Page 125: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an ®...
Page 126: Onstar ® Personal Calling
Safe and Sound Plan • Advanced Automatic Collision Notiﬁcation • Automatic Notiﬁcation of Airbag Deployment • Emergency Services • Roadside Assistance • Stolen Vehicle Tracking • AccidentAssist • Remote Door Unlock/Vehicle Alert • Remote Diagnostics • Online Concierge Directions and Connections •...
Page 127: Universal Home Remote System
Universal Home Remote System The Universal Home Remote System, a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems, and home lighting.
Page 128: Universal Home Remote System Operation
Universal Home Remote System Operation Do not use the Universal Home Remote with any garage door opener that does not have the “stop and reverse” feature. This includes any garage door opener model manufactured before April 1, 1982. If you have a newer garage door opener with rolling codes, please be sure to follow Steps 6 through 8 to complete the programming of your Universal Home Remote...
Page 129 3. Simultaneously press and hold both the desired Universal Home Remote button and the hand-held transmitter button. Do not release the buttons until Step 4 has been completed. Some entry gates and garage door openers may require you to substitute Step 3 with the procedure noted in “Gate Operator and Canadian Programming”...
Page 130: Gate Operator And Canadian Programming
Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to time out or quit after several seconds of transmission. This may not be long enough for Universal Home Remote to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to time out in the same manner.
Page 131: Storage Areas
Reprogramming a Single Universal Home Remote Button To program a device to Universal Home Remote using a Universal Home Remote button previously trained, follow these steps: 1. Press and hold the desired Universal Home Remote button. Do not release the button. 2.
Page 132: Overhead Console (With Rail)
Overhead Console (With Rail) If your vehicle is equipped with an overhead console, it may contain the following: • Reading lamps. See Front Reading Lamps on page 3-20 or Rear Reading Lamps on page 3-20. • Switchbank. See Overhead Console Switchbank on page 3-21.
Page 133: Overhead Console (Without Rail)
4. Firmly press down making sure the latch is ﬂat with the ribs (A) on the storage bin. 5. Switch hands and repeat Steps 2 through 4 for the latch on the opposite side of the storage bin. 6. Reverse these steps in order to remove the storage bin.
Page 134: Folding Tray
Folding Tray Your vehicle may be equipped with folding convenience trays located between seats. To use each tray lift up on the handle located on its front end, while pulling up on the tray to lock it into place. There are four cupholders on each tray.
Page 135: Convenience Net (With Rear Convenience Center)
Do not exceed the maximum vehicle capacity when loading your vehicle. For more information on vehicle capacity and loading, see Loading Your Vehicle on page 4-32. To prevent damage or loss of cargo as you are driving, check now and then to make sure the cargo is still securely fastened.
Page 136: Replacing The Convenience Center
Convenience Center CAUTION: If any removable convenience item is not secured properly, it can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to secure any such item properly. Your vehicle may have a convenience center. It provides extra storage space for the rear of the vehicle.
Page 137: Vehicle Personalization
6. Turn the hand knob clockwise until it is tight. 7. Pull up on the convenience center to make sure it is locked into place. The cover of the convenience center can be left in its upright position while the vehicle is moving. The convenience center and the third row seat both have a maximum weight capacity of 400 lbs (181.6 kg).
Page 138: Easy Exit Seat
To store the memory settings, do the following: 1. Adjust the driver’s seat to your preference. 2. Press and hold the 1 or 2 button of the memory control for three seconds. A double chime will sound to let you know that the position has been stored.
Page 139 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-9 Windshield Washer ...3-9 Rear Window Wiper/Washer ...3-10 Cruise Control ...3-11 Exterior Lamps ...3-15...
Page 140 Section 3 Anti-Lock Brake System Warning Light ...3-42 Traction Control System (TCS) Warning Light ...3-43 Engine Coolant Temperature Gage ...3-43 Malfunction Indicator Lamp ...3-44 Oil Pressure Light ...3-46 Security Light ...3-47 Cruise Control Light ...3-47 Highbeam On Light ...3-48 Fuel Gage ...3-48 Low Fuel Warning Light ...3-48 Driver Information Center (DIC) ...3-49 DIC Operation and Displays ...3-50...
Page 141 NOTES...
Page 142: Instrument Panel Overview
Instrument Panel Overview...
Page 143 The main components of the instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-29. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Audio Steering Wheel Controls (If Equipped). See Audio Steering Wheel Controls on page 3-117. D.
Page 144: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 145: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals. See Turn and Lane-Change Signals on page 3-7. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-8. •...
Page 146: Turn Signal On Chime
To signal a lane change, just raise or lower the lever until the arrow starts to ﬂash. Hold it there until you complete your lane change. The lever will return by itself when you release it. As you signal a turn or a lane change, if the arrow ﬂashes faster than normal, a signal bulb may be burned out and other drivers will not see your turn signal.
Page 147: Windshield Wipers
Windshield Wipers You control the windshield wipers by turning the band with the wiper symbol on it. (Mist): For a single wiping cycle, turn the band to mist. Hold it there until the wipers start. Then let go. The wipers will stop after one wipe. If you want more wipes, hold the band on mist longer.
Page 148: Rear Window Wiper/Washer
Rear Window Wiper/Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. 3-10 The controls for the rear window washer/wiper are located on the end of the turn signal/multifunction lever.
Page 149: Cruise Control
Cruise Control CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed. So, do not use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control.
Page 150: Setting Cruise Control
Cruise control allows a speed of approximately 25 mph (40 km/h) or more to be maintained without keeping your foot on the accelerator. This is helpful on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h). When the brakes are applied, the cruise control shuts off.
Page 151: Resuming A Set Speed
Resuming a Set Speed If the cruise control is set at a desired speed and then the brakes are applied, the cruise control shuts off. But the cruise control does not need to be reset. Once the vehicle is traveling approximately 25 mph (40 km/h) or more, the cruise control lever can be pushed upward toward the plus (resume/accelerate) position to return to the preset cruise speed.
Page 152 Reducing Speed While Using Cruise Control There are two ways to reduce the vehicle’s speed while using cruise control: • Push the cruise control lever downward toward the minus (set/coast/decelerate) position until a lower speed is reached, then release it. •...
Page 153: Exterior Lamps
Exterior Lamps The control to the left of the steering column operates the exterior lamps. (Off): Turn the control to this position to toggle off all lamps. This is a momentary control that will spring back to AUTO when released. This momentary control will turn the automatic headlamps and/or the Daytime Running Lamps on and off for U.S.
Page 154: Wiper Activated Headlamps
Wiper Activated Headlamps This feature, if equipped, will automatically activate the headlamps and parking lamps after the windshield wipers have been in use for about 30 seconds and when all of the following conditions are met. • The exterior lamp control is in AUTO. •...
Page 155: Instrument Panel Brightness
When it is dark enough outside, the exterior lamps will come on automatically. When it is bright enough outside, the exterior lamps will turn off and the DRL will turn on. Of course, you may still turn on the headlamps any time you need to.
Page 156: Interior Lamps Control
Interior Lamps Control The interior lamp control is located to the right of the exterior lamp controls on the instrument panel to the left of the steering column. 3-18 (Interior Lamp Override): Turn the outer knob to this position to have your interior lamps remain off while any door is open.
Page 157: Entry Lighting
Entry Lighting With entry lighting, the interior of your vehicle is illuminated so that you can see inside before you enter your vehicle. The lamps will come on for 20 seconds if you unlock your door using your key or the remote keyless entry transmitter and the ignition is in LOCK.
Page 158: Exit Lighting
Exit Lighting With exit lighting, the interior lamps will come on for about 25 seconds whenever you remove the key from the ignition. If you turn the ignition key to RUN or ACCESSORY, the lamps will fade out. The lamps will also fade out if you lock the doors with the power door lock switch or the remote keyless entry transmitter.
Page 159: Battery Run-Down Protection
Battery Run-Down Protection Your vehicle has a feature to help prevent you from draining the battery, in case you accidentally leave the interior lamps on. If you leave any interior lamps on while the ignition is in lock or off, they will automatically turn off after 10 minutes.
Page 160: Ultrasonic Rear Parking Assist (Urpa)
Ultrasonic Rear Parking Assist (URPA) If your vehicle is equipped with the Ultrasonic Rear Parking Assist (URPA) system, it is designed to help you park, while the vehicle is in REVERSE (R). It operates only at very low speeds, less than 3 mph (5 km/h). URPA can help make parking easier and to help you avoid colliding with objects such as parked vehicles.
Page 161: How The System Works
URPA can be turned off by pressing the rear park aid disable switch located in the overhead console switchbank. While the system is disabled, an indicator light will be lit on the switch. You will not see any lights on the rear display if the switch is in the off position.
Page 162: Accessory Power Outlet(S)
When the System Does Not Seem to Work Properly The light may ﬂash red when the vehicle is in REVERSE (R) if the ultrasonic sensors are not kept clean. So be sure to keep your rear bumper free of mud, dirt, snow, ice and slush.
Page 163: Power Outlet 115 Volt Alternating Current
Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should. The repairs would not be covered by your warranty. Do not use equipment exceeding maximum amperage rating. Check with your dealer before adding electrical equipment. When adding electrical equipment, be sure to follow the proper installation instructions included with the equipment.
Page 164: Cigarette Lighter
Cigarette Lighter Your vehicle may have a cigarette lighter. To use the lighter, located on the instrument panel below the climate controls, push it in all the way and let go. When it is ready, it will pop back out by itself. Notice: Holding a cigarette lighter in while it is heating will not allow the lighter to back away from the heating element when it is hot.
Page 165 To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets. (Bi-Level): This mode directs half of the air to the instrument panel outlets, then directs the remaining air to the ﬂoor outlets. Cooler air is directed to the upper outlets and warmer air to the ﬂoor outlets.
Page 166: Defogging And Defrosting
On hot days, open the windows to let hot inside air escape; then close them. This helps to reduce the time it takes for your vehicle to cool down. It also helps the system to operate more efficiently. The air conditioning system removes moisture from the air, so you may sometimes notice a small amount of water dripping underneath your vehicle while idling or after turning off the engine.
Page 167: Rear Window Defogger
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear Window Defogger): Press this button to turn the rear window defogger on or off. An indicator light in the button will come on to let you know that the rear window defogger is activated.
Page 168: Rear Climate Control System
Rear Climate Control System Your vehicle may have a rear climate control system that allows the driver to adjust the fan speed for the rear seating area. This system works with the main climate control system in your vehicle. This lever is located below the main climate control system on the instrument panel.
Page 169: Rear Air Outlets
The front control must be in AUX position to enable adjustment of the temperature and fan speed on the rear control system. If it is not in AUX, pressing the fan or temperature button on the rear climate control will show a DISABLED message on the rear seat entertainment system display.
Page 170: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside and recirculated air, is routed through a passenger compartment ﬁlter. The ﬁlter removes most particles from the air, including dust particles. Reductions in airﬂow, which may occur more quickly in dusty areas, indicate that the ﬁlter needs to be replaced early.
Page 171 2. Then push the tab, located on the left of the inner access panel, to the right. 3. The ﬁrst air ﬁlter will pull straight out. To remove the second, reach in and slide it toward the opening. Pull the second ﬁlter out. 4.
Page 172: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 173: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using, and many other things you will need to drive safely and economically.
Page 174: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper-resistant odometer.
Page 175: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts. The safety belt light will also come on and stay on for several seconds.
Page 176: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light comes on if there is an electrical problem. The system check includes the airbag sensor, the airbag modules, the wiring and the diagnostic module.
Page 177: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 178 Your vehicle has a rear seat that will accommodate a rear-facing child restraint. A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 179: Charging System Light
Charging System Light The charging system light will come on brieﬂy when you turn on the ignition, but the engine is not running, as a check to show you it is working. It should go out once the engine is running. If it stays on, or comes on while you are driving, you may have a problem with the charging system.
Page 180: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service.
Page 181: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light Your vehicle may be equipped with a traction control system warning light. The traction control system warning light may come on for the following reasons: • If you turn the system off by pressing the traction control button.
Page 182: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 183: If The Light Is Flashing
If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 184: Emissions Inspection And Maintenance Programs
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 185: Security Light
CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Lack of proper engine oil maintenance may damage the engine.
Page 186: Highbeam On Light
Highbeam On Light This light will come on when the high-beam headlamps or the Flash-to-Pass feature is in use. See Headlamp High/Low-Beam Changer on page 3-8. Fuel Gage United States When the indicator nears empty, you still have a little fuel left, but you should get more soon.
Page 187: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). All messages will appear in the DIC display located in the instrument panel cluster, below the tachometer. The DIC buttons are located on the center of the instrument panel, below the center outlets.
Page 188: Dic Operation And Displays
DIC Operation and Displays The DIC has different modes which can be accessed by pressing the DIC buttons located on the center of the instrument panel. The buttons are the information, set/reset, and menu buttons. The button functions are detailed in the following pages. DIC Buttons (Information): Press this button to display the odometer, trip distance, time elapsed, average speed,...
Page 189: Time Elapsed
Trip A and Trip B Press the information button until A or B displays. This mode shows the current distance traveled in either miles or kilometers since the last reset for each trip odometer. Both trip odometers can be used at the same time.
Page 190 Average Speed Press the information button until AVERAGE SPEED displays. This mode shows the average speed of the vehicle in miles per hour (mph) or kilometers per hour (km/h). This average is calculated based on the various vehicle speed recorded since the last reset of this value. To reset the value, press the information button to display AVERAGE SPEED, then press and hold the set/reset button.
Page 191 Battery Press the information button until BATTERY displays. This mode shows the current battery voltage. If there is a problem with the battery charging system, a DIC message will display. See DIC Warnings and Messages on page 3-56 for more information. Your vehicle’s charging system regulates voltage based on the state of the battery.
Page 192 Language Press the menu button until the language screen displays. This mode allows you to select the language in which the DIC messages will appear. Once in this mode, press the set/reset button to select among the following choices: • English •...
Page 193 To adjust for compass variance, use the following procedure: 1. Press the menu button until COMPASS ZONE displays. 2. Find the vehicle’s current location and variance zone number on the map. 3. Press the set/reset button to scroll through and select the appropriate variance zone.
Page 194: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 195: Battery Saver Active
ALL WHEEL DRIVE DISABLED If your vehicle has the all-wheel drive system, this message will display when there is a spare tire on the vehicle, or when the anti-lock brake system warning light comes on, or when the rear differential ﬂuid is overheating.
Page 196: Check Gas Cap
CHARGING SYSTEM FAILURE This message will display when there is a problem with the generator and battery charging systems. Driving with this problem could drain your battery. Turn off all unnecessary accessories. Stop and turn off the vehicle as soon as it is safe to do so. Have the electrical system checked by your GM dealer immediately.
Page 197: Engine Coolant Hot
DRIVER’S DOOR AJAR This message will display when the driver’s door is not closed properly. When this message appears, you should make sure that the driver’s door is closed completely. This message will display while the ignition is in RUN. A chime will sound when the ignition is shifted out of PARK (P).
Page 198: Headlamps Suggested
This message will display only when the ignition is in RUN. A chime will sound continuously when this message is displayed. Press any of the DIC buttons to acknowledge this message and to clear it from the screen. This message will continue to display for two seconds if it has not been acknowledged when the engine is turned off.
Page 199: Key In Ignition
KEY FOB BATTERY LOW This message will display when the battery in the remote keyless entry transmitter needs to be replaced. To replace the battery, see “Battery Replacement” under Remote Keyless Entry System Operation on page 2-5. This message will display while the ignition is in RUN. Press any of the DIC buttons to acknowledge this message and to clear it from the screen.
Page 200: Lift Gate Ajar
This message will continue to display for two seconds if it has not been acknowledged when the engine is turned off. It will also re-display for two seconds if the message has been acknowledged, but the condition still exists when the engine is turned off. If the condition still exists, the message will re-appear when the engine is turned on.
Page 201: Low Oil Pressure
LOW FUEL This message will display when your vehicle is low on fuel. You should reﬁll the tank as soon as possible. See Fuel Gage on page 3-48 and Filling the Tank on page 5-6 for more information. The message will display and a chime will sound while the ignition is in RUN.
Page 202 A chime will sound continuously while this message is displayed if driving above 5 mph (8 km/h). Press any of the DIC buttons to acknowledge this message and to clear it from the screen. This message will continue to display for two seconds if it has not been acknowledged when the engine is turned off.
Page 203: Reduced Engine Power
PASSENGER SEATBELT IS NOT FASTENED This message reminds you to buckle the passenger’s seat belt. This message will display and a chime will sound when the ignition is on, the driver’s seat belt is buckled, the passenger’s seat belt is unbuckled with the passenger airbag enabled and the vehicle is in motion.
Page 204 REMOTE START DISABLED This warning message will come on if a remote start attempt is unsuccessful. This may be caused if any of the following conditions are true when a remote start attempt is made: • The remote start system is disabled through the DIC.
Page 205: Right Rear Turn Lamp Out
RIGHT REAR TURN LAMP OUT This message will display when the right rear turn signal bulb needs to be replaced. See Taillamps, Turn Signal, Stoplamps and Back-up Lamps on page 5-51. This message will display while the ignition is in RUN.
Page 206: Service Brake System
SERVICE BRAKE SYSTEM This message will display when a problem with the brake system has been detected. Have your vehicle serviced by your GM dealer as soon as possible. The brake system warning light will also appear on the instrument panel cluster when this message appears on the DIC.
Page 207: Service Traction System
This message will continue to display for two seconds if it has not been acknowledged when the engine is turned off. It will also re-display for two seconds if the message has been acknowledged, but the condition still exists when the engine is turned off. If the condition still exists, the message will re-appear when the engine is turned on.
Page 208: Stability Control Active
STABILITY CONTROL ACTIVE ® If your vehicle has StabiliTrak , this message will ® display when StabiliTrak is actively assisting you with directional control of the vehicle. Slippery road conditions may exist when this message is displayed, so adjust your driving accordingly. See StabiliTrak System on page 4-10.
Page 209: Traction Control Off
TRACTION CONTROL OFF If your vehicle has the traction control system, this message will display when the traction control system turns off. See Traction Control System (TCS) on page 4-9 for more information. This message will only display while the ignition is in RUN and will disappear after two seconds.
Page 210: Dic Vehicle Personalization (Uplevel Only)
DIC Vehicle Personalization (Uplevel Only) Your vehicle may have customization capabilities that allow you to program certain features to one preferred setting. Customization features can only be programmed to one setting on the vehicle and cannot be programmed to a preferred setting for two different drivers. The customization features include the following: •...
Page 211 Entering the Personal Program Menu 1. Turn the ignition on and place the vehicle in PARK (P). 2. Press the menu button until PERSONAL PROGRAM displays. If the vehicle is not in PARK (P), PERSONAL PROGRAM ONLY IN PARK will display. If the vehicle is not able to enter the personal program menu, PERSONAL PROGRAM NOT AVAILABLE will display.
Page 212 EXT (Exterior) LIGHT DELAY This feature allows you to set the amount of time the exterior lamps remain on after the key is removed from the ignition or the vehicle is unlocked using the remote keyless entry transmitter. Press the menu button until EXT LIGHT DELAY appears on the DIC display.
Page 213 DELAYED LOCKING This feature allows the locking of the vehicle to be delayed until all of the doors have been closed for approximately ﬁve seconds. When the delayed locking feature is enabled, it may be activated when the key is out of the ignition by doing one of the following: •...
Page 214 CONTENT THEFT If your vehicle has the content theft-deterrent system, once this feature is turned on, the system will activate if someone tries to enter the vehicle without using the remote keyless entry transmitter or the correct key. It will also activate when an incorrect key is used in the ignition.
Page 215 REMOTE START If your vehicle has remote start, this feature allows the remote start to be turned OFF or ON. The remote start feature allows you to start the engine from outside of the vehicle using the remote keyless entry transmitter.
Page 216 Press the menu button until PERSONALIZE KEY appears on the DIC display. Press the set/reset button to scroll through the following choices: NO (default): The key will not be personalized. YES: The key will be personalized. Choose one of the available settings and press the menu button while it is displayed on the DIC to select it and move on to the next feature.
Page 217 ALL (default): All of the doors will unlock when the vehicle is shifted into PARK (P) or the key is taken out of the ignition. Choose one of the available settings and press the menu button while it is displayed on the DIC to select it and move on to the next feature.
Page 218: Audio System(S)
Exiting the Personal Program Menu The personal program menu will be exited when any of the following occurs: • The vehicle is shifted out of PARK (P). • The vehicle is no longer in RUN. • The end of the personal program menu is reached. Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its...
Page 219: Setting The Time
Here are some ways in which you can help avoid distraction while driving. While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers.
Page 220: Radio Data System (Rds)
Radio with CD Radio with CD shown, Radio with Six-Disc CD similar 3-82 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 221: Xm™ Satellite Radio Service
XM™ Satellite Radio Service If your vehicle has XM™, XM™ is a satellite radio service that is based in the 48 contiguous United States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 222: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. (Tune): Turn this knob to select radio stations. SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there.
Page 223: Setting The Tone (Bass/Treble)
Setting the Tone (Bass/Treble) (Bass/Treble/Midrange): Press this knob to select BASS, MIDRANGE, or TREBLE. Turn the knob to increase or to decrease. If a station is weak or noisy, decrease the treble. To adjust the bass, midrange, and treble to the middle position, press and hold this knob when the tone control is on the display.
Page 224 Finding a Category Station (RDS and XM™) To select and ﬁnd a desired category perform the following: 1. Press the CAT button. The last selected category will appear on the display. 2. Turn the tune knob to select the category. 3.
Page 225: Rds Messages
RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is low or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 226: Xm Radio Messages
Radio Messages CAL ERR (Calibration Error): The audio system has been calibrated for your vehicle from the factory. If CAL ERR appears on the display, it means that the radio has not been conﬁgured properly for your vehicle and must be returned to your GM dealer for service. Radio Display Message XL (Explicit Language...
Page 227 Radio Display Message CH Off Air Channel not in service CH Unavail Channel no longer available No Info Artist Name/Feature not available No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category...
Page 228 Radio Display Message Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr Hardware failure Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing.
Page 229 Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen instead. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you could...
Page 230: Playing A Cd(S) (Six-Disc Cd Player)
Playing a CD(s) (Six-Disc CD Player) If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source.
Page 231 To insert multiple CDs, do the following: 1. Turn the ignition on. 2. Press and hold the load button for two seconds. You will hear a beep and LOAD ALL DISC will appear on the display. 3. When INSERT CD # appears on the display, load a CD.
Page 232 Do not repeatedly press the eject button to eject a CD after you have tried to push it in manually. The player’s 25-second eject timer will reset at each press of eject, causing the player to not eject the CD until the 25-second time period has elapsed.
Page 233 SCAN : To scan one CD, press and hold either SCAN arrow for more than two seconds until SCAN appears on the display and you hear a beep. The radio will go to the next track, play for 10 seconds, then go on to the next track.
Page 234: Root Directory
The player will be able to read and play a maximum of 50 folders, 50 playlists, 10 sessions, and 255 ﬁles. Long ﬁle names, folder names, or playlist names may use more disc memory space than necessary. To conserve space on the disc, minimize the length of the ﬁle, folder or playlist names.
Page 235 Order of Play Tracks will be played in the following order: • Play will begin from the ﬁrst track in the ﬁrst playlist and will continue sequentially through all tracks in each playlist. When the last track of the last playlist has been played, play will continue from the ﬁrst track of the ﬁrst playlist.
Page 236 If playing a CD-R, the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There may be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting.
Page 237 RPT (Repeat): Press this button to hear a track, CD, or a folder over again. To use repeat, do one of the following: • To repeat a track, press and release this button until REPEAT TRACK appears on the display. •...
Page 238 4. Press and hold the song list button to save the track into memory. When song list is pressed, one beep will be heard immediately. ADDED SONG will appear on the display. 5. Repeat Steps 3 and 4 for saving other selections. SONGLIST FULL will appear on the display if you try to save more than 20 selections.
Page 239: Navigation/Radio System
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 240: Before You Drive
This button may also be used to turn the DVD player power on and automatically resume play if the vehicle is on and a disc is in the player. If no disc is in the player, the system will power up in auxiliary mode. Before You Drive The RSE is designed for rear seat passengers only.
Page 241: Battery Replacement
Both sets of rear seat headphones may include foam ear pads that can be replaced. Foam ear pads on these headphones may become worn or damaged. The headphone foam ear pads can become damaged if they are not handled or stored properly.
Page 242: Audio Output
Stereo RCA Jacks The RCA jacks are located behind the video screen on the DVD console. The RCA jacks allow audio and video signals to be connected from an auxiliary device such as a camcorder or a video game unit to the RSE.
Page 243: Video Screen
Vehicle Speakers Only one audio source can be heard through the vehicle’s speakers at a time. The RSE system or an auxiliary device can be heard through all of the vehicle’s speakers when the following occurs: • A DVD or auxiliary device is playing •...
Page 244 DVD Player Buttons (Stop/Eject): Press and release this button to stop playing, rewinding, or fast forwarding. Press this button twice to eject a disc. If the player is already stopped, then only press this button once. (Power): Press this button to turn the DVD player on and off.
Page 245: Remote Control
Playing a Disc To play a disc, gently insert the disc, with the label side up, into the loading slot. The DVD player will continue loading the disc and the player will automatically start if the vehicle is in ACCESSORY, ON, or RAP. If a disc is already in the player, make sure that the DVD player is on, then press the play/pause button on the player faceplate or on the remote control.
Page 246: Remote Control Buttons
Remote Control Buttons (Power): Press this button to turn the DVD player on and off. (Backlight): Press this button to turn the remote control backlighting on. The backlight will automatically turn off after eight seconds. (Title): Press this button to display the current title number.
Page 247 (Play/Pause): Press this button to start play of a disc. Press this button while a disc is playing to pause it. Press it again to continue playing the disc. (Prior Chapter/Track): Press this button to go to the beginning of the current chapter or track. Press this button again to return to the previous chapter or track.
Page 248 RSE On-Screen Display (OSD) Menu To use the RSE OSD menu when using a DVD or an auxiliary device, do the following: To access this menu, press the display button on the remote control. Once the menu is on the screen, use the directional arrows and the enter button to navigate the screen.
Page 249 Tips and Troubleshooting Chart Problem Recommended Action No power. The ignition may not be in ACCESSORY, RUN, or RAP. Disc will not play. The system might be off. The parental control button might have been pressed. The power indicator lights will ﬂash. The system might be in auxiliary source mode.
Page 250 Problem Recommended Action The language in the audio Press the main menu or on the screen is wrong. button on the remote control and change the audio or language selection on the DVD menu. To change the language preference, press the display button to access the RSE OSD menu.
Page 251 Problem Recommended Action My disc is stuck in the Press the eject button on player. The eject button the DVD player. Turn the does not work. ignition off, then on again, then press the eject button on the DVD player. Do not attempt to force or remove the disc from the player.
Page 252 DVD Messages The following errors may be displayed on the video screen. Disc Format Error: This message will be displayed if a disc is inserted upside down, if the disc is not readable, or if the disc format is not compatible. Disc Play Error: This message will be displayed if the mechanism cannot play the disc.
Page 253: Rear Seat Audio (Rsa)
Rear Seat Audio (RSA) If your vehicle has rear seat audio (RSA), this feature allows rear seat passengers to listen to and control any of the following audio sources: AM/FM tuner, front CD player, and XM™ Satellite Radio Service (if equipped). However, the rear seat passengers can only control the sources that the front seat passengers are not listening to.
Page 254 (Tune): When listening to the radio, press the right or the left arrow to go to the next or the previous station and stay there. This function is inactive if the front seat passengers are listening to the radio. When a CD is playing, press the left arrow to go to the start of the current track or to the previous track.
Page 255: Theft-Deterrent Feature
Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOCKED will appear on the display. ®...
Page 256: Radio Reception
(Play): When listening to the radio, press this button to play a cassette tape or CD. wu x (Volume): Press the up or down arrow to increase or decrease the volume. Radio Reception You may experience frequency interference and static during normal radio reception if items such as cellphone chargers, vehicle convenience accessories, and external electronic devices are plugged into the...
Page 257: Xm™ Satellite Radio Antenna System
Care of Your CDs and DVDs Handle CDs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. The CD player scans the bottom surface of the disc. If the surface of a CD is damaged, such as cracked, broken, or scratched, the CD will not play properly or not at all.
Page 258 NOTES 3-120...
Page 259: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-8 Traction Control System (TCS) ...4-9 ® StabiliTrak System ...4-10 All-Wheel Drive (AWD) System ...4-12 Steering ...4-13 Off-Road Recovery ...4-15...
Page 260: Defensive Driving
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-14. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 261: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 262 It is the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 263 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. “I will be careful” is not the right answer. What if there is an emergency, a need to take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid the...
Page 264: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you are driving on snow or ice, it is easy to ask more of those control systems than the tires and road can provide.
Page 265: Anti-Lock Brake System (Abs)
Anti-Lock Brake System (ABS) Your vehicle has anti-lock brakes. ABS is an advanced electronic braking system that will help prevent a braking skid. When you start your engine and begin to drive away, your anti-lock brake system will check itself. You may hear a momentary motor or clicking noise while this test is going on, and you may even notice that your brake pedal moves or pulses a little.
Page 266: Using Anti-Lock
The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 267: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle may have a traction control system that limits wheel spin. This is especially useful in slippery road conditions. The system operates if it senses that one or both of the front wheels are spinning or beginning to lose traction.
Page 268: Stabilitrak ® System
To turn the system off, press the traction control button located on the center of the instrument panel. If the system is limiting wheel spin when you press the button, the TRACTION CONTROL ACTIVE message will go off, but the system will not turn off until there is no longer a current need to limit wheel spin.
Page 269: Traction Control Operation
The STABILITY CONTROL ACTIVE message will appear on the DIC only when the system is both on and activated. It means that an advanced computer-controlled system has come on to help your vehicle continue to go in the direction in which you are steering. StabiliTrak activates when the computer senses that your vehicle is just starting to spin, as it might if you hit a patch of ice or other slippery spot on the road.
Page 270: All-Wheel Drive (Awd) System
The system will return to normal operation after the brakes have cooled. This can take up to two minutes or longer depending on brake usage. The traction control system may activate on dry or rough roads or under conditions such as heavy acceleration while turning or abrupt upshifts/downshifts of the transmission.
Page 271: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 272: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 273: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 274 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 275: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 276: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 277: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 278: Driving Through Deep Standing Water
Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you cannot, try to slow down before you hit them. Hydroplaning Hydroplaning is dangerous.
Page 279: Some Other Rainy Weather Tips
Some Other Rainy Weather Tips • Turn on your low-beam headlamps — not just your parking lamps — to help make you more visible to others. • Besides slowing down, allow some extra following distance. And be especially careful when you pass another vehicle.
Page 280: Freeway Driving
Here are ways to increase your safety in city driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
Page 281 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic ﬂow. Treat the left lane on a freeway as a passing lane. At the entrance, there is usually a ramp that leads to the freeway.
Page 282: Before Leaving On A Long Trip
Before Leaving on a Long Trip Make sure you are ready. Try to be well rested. If you must start when you are not fresh — such as after a day’s work — do not plan to make too many miles that ﬁrst part of the journey.
Page 283: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 284 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transaxle.
Page 285: Winter Driving
• Know how to go down hills. The most important thing to know is this: let your engine do some of the slowing down. Shift to a lower gear when you go down a steep or long hill. • Know how to go uphill. You may want to shift down to a lower gear.
Page 286: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 287: If You Are Caught In A Blizzard
Traction control improves your ability to accelerate when driving on a slippery road. But you can turn the traction system off if you ever need to. You should turn the traction system off if your vehicle ever gets stuck in sand, mud, ice, or snow.
Page 288 You can run the engine to keep warm, but be careful. 4-30 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 289: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
Page 290: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. Turn your traction system off. See Traction Control System (TCS) on page 4-9 and StabiliTrak page 4-10. Then shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible.
Page 291: Tire And Loading Information Label
Tire and Loading Information Label Example Label A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar) of your vehicle. With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 292 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle.
Page 293 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 294: Certification/Tire Label
Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is attached to the rear edge of the driver’s door. The label shows the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo.
Page 295: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else, they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or...
Page 296: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 297: Level Control
Level Control With this feature, the rear of the vehicle is automatically kept level as you load or unload your vehicle. However, you should still not exceed the GVWR or the GAWR. See Loading Your Vehicle on page 4-32. You may hear the compressor operating when you load or unload your vehicle, and periodically as the system self-adjusts.
Page 298: If You Do Decide To Pull A Trailer
Trailering is different than just driving your vehicle by itself. Trailering means changes in handling, acceleration, braking, durability, and fuel economy. Successful, safe trailering takes correct equipment, and it has to be used properly. That is the reason for this section. In it are many time-tested, important trailering tips and safety rules.
Page 299: Weight Of The Trailer
Weight of the Trailer How heavy can a trailer safely be? It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature, and how much your vehicle is used to pull a trailer are all important. It can also depend on any special equipment that you have on your vehicle, and the amount of tongue weight the vehicle can carry.
Page 300: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 301 Consider the following example: A vehicle model base weight is 5,500 lbs (2 495 kg); 2,800 lbs (1 270 kg) at the front axle and 2,700 lbs (1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs (3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a GCWR (Gross Combination Weight Rating) of 14,000 lbs (6 350 kg).
Page 302: Total Weight On Your Vehicle's Tires
Since tongue weight is usually at least 10 percent of total loaded trailer weight, you can expect that the largest trailer your vehicle can properly handle is 6,000 lbs (2 721 kg). It is important that you make sure your vehicle does not exceed any of its ratings —...
Page 303: Trailer Brakes
Trailer Brakes If your trailer weighs more than 1,000 lbs (450 kg) loaded, then it needs its own brakes – and they must be adequate. Be sure to read and follow the instructions for the trailer brakes so you will be able to install, adjust, and maintain them properly.
Page 304: Following Distance
Before you start, check all trailer hitch parts and attachments, safety chains, electrical connector, lamps, tires, and mirror adjustment. If the trailer has electric brakes, start your vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working.
Page 305: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle has to have extra wiring. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also ﬂash, telling other drivers you are about to turn, change lanes, or stop.
Page 306: When You Are Ready To Leave After Parking On A Hill
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you do the following: • Start your engine. • Shift into a gear. • Release the parking brake. 2.
Page 307: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-4 Fuel ...5-4 Gasoline Octane ...5-4 Gasoline Speciﬁcations ...5-5 California Fuel ...5-5 Additives ...5-5 Fuels in Foreign Countries ...5-6 Filling the Tank ...5-6 Filling a Portable Fuel Container ...5-9...
Page 308 Section 5 Different Size Tires and Wheels ...5-64 Uniform Tire Quality Grading ...5-65 Wheel Alignment and Tire Balance ...5-66 Wheel Replacement ...5-66 Tire Chains ...5-68 Accessory Inﬂator ...5-68 If a Tire Goes Flat ...5-70 Changing a Flat Tire ...5-70 Removing the Spare Tire and Tools ...5-72 Removing the Flat Tire and Installing the Spare Tire ...5-75 Secondary Latch System ...5-81...
Page 309: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 310: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 311: California Fuel
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 in Canada. Some gasolines may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). General Motors recommends against the use of gasolines containing MMT. See Additives on page 5-5 for additional information.
Page 312: Fuels In Foreign Countries
Some gasolines that are not reformulated for low emissions may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT); ask the attendant where you buy gasoline whether the fuel contains MMT. General Motors recommends against the use of such gasolines. Fuels containing MMT can reduce the life of spark plugs and the performance of the emission control system may be affected.
Page 313 The tethered fuel cap is located behind a hinged fuel door on the driver’s side of the vehicle. When the fuel door is opened on a vehicle with dual sliding doors, the driver’s side sliding door will only open partway. While refueling, let the fuel cap hang by the tether.
Page 314 When replacing the fuel cap, turn it clockwise until it clicks. Make sure the cap is fully installed. The diagnostic system can determine if the fuel cap has been left off or improperly installed. This would allow fuel to evaporate into the atmosphere. See Malfunction Indicator Lamp on page 3-44.
Page 315: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 316: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. 5-10 CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 317: Hood Release
Hood Release To open the hood, do the following: 1. Pull the hood release handle with this symbol on it. It is located under the instrument panel on the driver’s side. 2. Go to the front of the vehicle and push the underhood release to the right.
Page 318: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.5L V6 engine, here is what you will see: 5-12...
Page 319 A. Underhood Fuse Block. See Underhood Fuse Block on page 5-98. B. Remote Positive (+) Terminal. See Jump Starting on page 5-42. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-38. D. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-26.
Page 320 When you open the hood on the 3.9L V6 engine, here is what you will see: 5-14...
Page 321: Engine Oil
A. Underhood Fuse Block. See Underhood Fuse Block on page 5-98. B. Remote Positive (+) Terminal. See Jump Starting on page 5-42. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-38. D. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-26.
Page 322: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-102.
Page 323: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 324: Engine Oil Additives
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for your engine at extremely low temperatures.
Page 325: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE OIL SOON message being turned on, reset the system.
Page 326: When To Inspect The Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 5-12 for the location of the engine air cleaner/ﬁlter. 5-20 When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 327 To inspect or replace the air cleaner/ﬁlter, do the following: 1. Remove the two clamps on the duct. 2. Remove the duct. 3. Unlatch the two hooks on top of the engine air cleaner/ﬁlter housing. 4. Inspect or replace the engine air cleaner/ﬁlter. 5.
Page 328: How To Check Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check and Change Automatic Transaxle Fluid A good time to check your automatic transaxle ﬂuid level is when the engine oil is changed. Change the ﬂuid and ﬁlter at the intervals listed in Additional Required Services on page 6-6, and be sure to use the transaxle ﬂuid listed in Recommended Fluids and Lubricants on page 6-11.
Page 329: How To Add Automatic Transaxle Fluid
3. With your foot on the brake pedal, move the shift lever through each gear range, pausing for about three seconds in each range. Then, position the shift lever in PARK (P). 4. Let the engine run at idle for three to ﬁve minutes. Then, without shutting off the engine, follow these steps: 1.
Page 330: Engine Coolant
Engine Coolant The cooling system in your vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst, if you add only ®...
Page 331: Checking Coolant
Notice: If you use an improper coolant mixture, your engine could overheat and be badly damaged. The repair cost would not be covered by your warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core and other parts.
Page 332: Adding Coolant
Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the coolant recovery tank, but be careful not to spill it. CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 333: Engine Overheating
Engine Overheating You will ﬁnd an engine coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 3-43. Your vehicle may also have an ENGINE COOLANT HOT message displayed in the Driver Information Center (DIC). See DIC Warnings and Messages on page 3-56. If Steam Is Coming From Your Engine CAUTION:...
Page 334: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 335: Overheated Engine Protection Operating Mode
Overheated Engine Protection Operating Mode This emergency operating mode allows your vehicle to be driven to a safe place in an emergency situation. If an overheated engine condition exists, an overheat protection mode which alternates ﬁring groups of cylinders helps prevent engine damage. In this mode, you will notice a signiﬁcant loss in power and engine performance.
Page 336 3.9L V6 Engine A. Radiator Pressure Cap B. Electric Engine Cooling Fans C. Coolant Recovery Tank 5-30 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan.
Page 337 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 338 How to Add Coolant to the Coolant Recovery Tank If you have not found a problem yet, but the coolant level is not at or above the full cold mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL engine coolant at the coolant recovery tank.
Page 339 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. If the overheat warning continues, there is one more thing you can try.
Page 340: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator Notice: Your engine has a speciﬁc radiator ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. 3.5L V6 Engine 5-34 3.9L V6 Engine 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot.
Page 341 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. 3. After the engine cools, if your vehicle has the 3.5L V6 engine, open the coolant air bleed valves.
Page 342 6. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. 7. By this time, the coolant level inside the radiator ﬁller neck may be lower. If the level is lower, add more of the proper DEX-COOL through the ﬁller neck until the level reaches the base of the ﬁller neck.
Page 343: When To Check Power Steering Fluid
Power Steering Fluid The power steering ﬂuid reservoir is located toward the rear of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 344: Windshield Washer Fluid
Windshield Washer Fluid What Washer Fluid to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 345: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 346: What To Add
What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 6-11. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 347: Brake Pedal Travel
CAUTION: The brake wear warning sound means that soon your brakes will not work well. That could lead to an accident. When you hear the brake wear warning sound, have your vehicle serviced. Notice: Continuing to drive with worn-out brake pads could result in costly brake repair.
Page 348: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We ® recommend an ACDelco replacement battery. Warning: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.
Page 349 Trying to start your vehicle by pushing or pulling it will not work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system. Notice: If the other vehicle’s system is not a 12-volt system with a negative ground, both vehicles can be damaged.
Page 350 If your vehicle has the 3.9L V6 engine, the terminal is located under the fuse block cover. Remove the cover to access the remote positive (+) terminal. 3.9L V6 Engine See Engine Compartment Overview on page 5-12 for more information on the location of the remote positive (+) terminals.
Page 351 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 352 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 353: All-Wheel Drive
All-Wheel Drive If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. All-wheel-drive vehicles have two additional systems that need lubrication. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant.
Page 354 Carrier Assembly-Differential (Rear Drive Module) When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant and when to change it. See Scheduled Maintenance on page 6-4. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 355: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-52. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 356 To replace one of these bulbs, do the following: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Remove the headlamp retainer pin (A) by turning it towards the headlamp assembly and pulling it straight out. 3.
Page 357: Front Turn Signal, Parking And Daytime Running Lamps (Drl)
Front Turn Signal, Parking and Daytime Running Lamps (DRL) To replace one of these bulbs (A), do the following: 1. Follow the Steps 1 through 4 to remove the headlamp assembly. See Headlamps and Sidemarker Lamps on page 5-49 for more information.
Page 358: Replacement Bulbs
3. Pull out the taillamp housing. 4. Disconnect the wiring harness connector from the taillamp assembly. A. Stoplamp/Taillamp B. Turn Signal Lamp C. Back-up Lamp Bulb 5. Turn the bulb socket counterclockwise to remove. 6. Replace the bulb by pulling the old bulb out of the socket and gently pushing in a new bulb.
Page 359: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 6-13.
Page 360: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner Manual.
Page 361: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 362 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 363: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 364 Aspect Ratio: The relationship of a tire’s height to its width. Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim.
Page 365 Normal Occupant Weight: The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg). See Loading Your Vehicle on page 4-32. Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle.
Page 366: Inﬂation - Tire Pressure
Vehicle Maximum Load on the Tire: Load on an individual tire due to curb weight, accessory weight, occupant weight, and cargo weight. Vehicle Placard: A label permanently attached to a vehicle showing the vehicle’s capacity weight and the original equipment tire size and recommended inﬂation pressure.
Page 367: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 368: When It Is Time For New Tires
Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque”...
Page 369: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 370: Different Size Tires And Wheels
If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and construction type (radial and bias-belted tires) as your vehicle’s original tires. Your vehicle’s original equipment tires are listed on the Tire and Loading Information Label.
Page 371: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 372: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 373: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts, or wheel nuts on your vehicle can be...
Page 374: Tire Chains
Tire Chains CAUTION: Do not use tire chains. There is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts. The area damaged by the tire chains could cause you to lose control of your vehicle and you or others may be injured in a crash.
Page 375 There may be an accessory inﬂator kit stored in the rear compartment on the passenger’s side. It includes a 20-foot (6 m) hose with an air pressure gage and nozzle adapters. CAUTION: Inﬂating something too much can make it explode, and you or others could be injured. Be sure to read the inﬂator instructions, and inﬂate any object only to its recommended pressure.
Page 376: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 377 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
Page 378: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The tools you will need are located in the storage compartment at the rear of the vehicle, on the passenger’s side. To remove the tools, do the following: 1. Open the liftgate. See Liftgate on page 2-24 for more information.
Page 379 The tools you will be using include the jack (A), extension (B), and folding wrench (C). The compact spare tire is located under the rear of the vehicle. See Compact Spare Tire on page 5-86 for more information about the compact spare. To remove the compact spare tire, do the following: A.
Page 380 3. Tilt the retainer at the end of the cable to remove the compact spare tire, so it can be pulled up through the wheel opening. If your vehicle is an AWD vehicle, after removing the compact spare tire, turn the wrench clockwise to raise the cable back up.
Page 381: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire If the wheel has a center cap, use the handle of the folding wrench to pry it off. Then, with the other end of the folding wrench, loosen the nuts. If your vehicle has the plastic bolt-on wheel covers, loosen the bolts completely using the folding wrench, and remove the wheel cover.
Page 382 Notice: If you use a jack to raise the vehicle without positioning it correctly, you could damage your vehicle. When raising your vehicle on a jack, avoid contact with the rear axle control arms. Notice: If you position the jack under the rocker molding and attempt to raise the vehicle, you could break the molding and/or cause other damage to your vehicle.
Page 383 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 384 5. Raise the vehicle by turning the folding wrench clockwise in the jack. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to ﬁt under the wheel well. 6. Remove all the wheel nuts and take off the ﬂat tire. 5-78 CAUTION: Rust or dirt on the wheel, or on the parts to...
Page 385 7. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 8.
Page 386 9. Lower the vehicle by attaching the folding wheel wrench to the jack and turning the wrench counterclockwise. Lower the jack completely. 5-80 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident.
Page 387: Secondary Latch System
10. Tighten the wheel nuts ﬁrmly in a crisscross sequence, as shown. Notice: Wheel covers will not ﬁt on your compact spare. If you try to put a wheel cover on the compact spare, you could damage the cover or the spare. 11.
Page 388 To release the spare tire from the secondary latch, do the following: 1. Place the jack under the vehicle, ahead of the rear bumper. Position the center lift point of the jack under the center of the compact spare tire. 2.
Page 389: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. Storing the Spare Tire CAUTION: The underbody-mounted spare tire needs to be...
Page 390 5. Raise the tire fully against the underside of the vehicle. Continue turning the folding wrench until you feel more than two clicks. This indicates that the compact spare tire is secure and the cable is tight. The spare tire hoist cannot be overtightened. 6.
Page 391 A. Cable B. Liftgate Hinges C. Door Striker 4. Pull the cable through the door striker and the center of the wheel. 5. Hook the cable onto the outside portion of the liftgate hinges. 6. Pull on the cable to make sure it is secure. 7.
Page 392: Compact Spare Tire
Storing the Tools A. Strap B. Bag and Tools C. Jack Put back all tools as they were stored in the jack storage compartment and put the compartment cover back on. 5-86 To put the cover back on, line up the tabs on the right of the cover with the slots in the cover opening.
Page 393: Appearance Care
Notice: When the compact spare is installed, do not take your vehicle through an automatic car wash with guide rails. The compact spare can get caught on the rails. That can damage the tire and wheel, and maybe other parts of your vehicle. Do not use the compact spare on other vehicles.
Page 394: Fabric/Carpet
Do not clean your vehicle using the following cleaners or techniques: • Never use a knife or any other sharp object to remove a soil from any interior surface. • Never use a stiff brush. It can cause damage to your vehicle’s interior surfaces.
Page 395: Leather
If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary. When a commercial upholstery cleaner or spot lifter is to be used, test a small hidden area for colorfastness ﬁrst. If the locally cleaned area gives any impression that a ring formation may result, clean the entire surface.
Page 396: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 397: Finish Care
Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish. GM-approved cleaning products can be obtained from your dealer. See Vehicle Care/Appearance Materials on page 5-94. Notice: Machine compounding or aggressive polishing on a basecoat/clearcoat paint ﬁnish may damage it.
Page 398: Aluminum Or Chrome-Plated Wheels
Aluminum or Chrome-Plated Wheels The vehicle may be equipped with either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 399: Sheet Metal Damage
Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection. Original manufacturer replacement parts will provide the corrosion protection while maintaining the warranty.
Page 400: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner and Use on chrome or Polish stainless steel. White Sidewall Tire Removes soil and black Cleaner marks from whitewalls.
Page 401: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 402: Headlamp Wiring
Headlamp Wiring The headlamp wiring is protected by four internal fuses in the underhood fuse block. An electrical overload will cause the lamps to go on and off, or in some cases to remain off. If this happens, have your headlamp wiring checked right away.
Page 403 Fuses Usage Trunk, Door Locks Electronic Level Control Rear Wiper Radio Ampliﬁer Interior Lamps ® OnStar Keyless Entry Module Cluster, Heating, Ventilation, Air Conditioning Cruise Switch Steering Wheel Illumination Power Mirror Stoplamp, Turn Lamps Heated Seats Blank Electronic Level Control Heated Mirror Center High-Mounted Stoplamp, Back-up Lamps...
Page 404: Underhood Fuse Block
Fuses Blank Canister Ventilation Park Lamps Power Sliding Door Blank Blank Left Power Sliding Door Right Power Sliding Door Relays Blank Blank Park Lamps 5-98 Usage Relays Circuit Breakers Underhood Fuse Block Usage The underhood fuse block is located in the engine compartment.
Page 405 Fuses Usage Right High Beam Fuel Pump Diode SPARE Spare Fuses Usage SPARE Spare Left High Beam SPARE Spare SPARE Spare 5-99...
Page 406 Fuses SPARE Spare Not Used Air Conditioning Clutch Horn Left Low Beam Powertrain Control Module, Electronic Throttle Control Not Used Transmission Solenoid Right Low Beam Anti-lock Brake System Powertrain Control Module Ignition Electronic Ignition 5-100 Usage Fuses Usage Fuel Injector Climate Control, RPA, Cruise Control Electronic Throttle Control...
Page 407 J-Case Fuses Usage Fuse Puller Fan 1 Starter Solenoid Anti-lock Brake System Motor Blank Fan 2 Front Blower High Battery Main 3 Rear Defogger Battery Main 2 Spare Relays Usage RUN RLY Starter LO BEAM Low Beam FUEL PUMP Fuel Pump HORN Horn AC/CLTCH...
Page 408: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric measurements. See Recommended Fluids and Lubricants on page 6-11 for more information. Application Automatic Transaxle — Pan Removal and Replacement AWD Automatic Transaxle — Pan Removal and Replacement Cooling System Front A/C Front and Rear A/C...
Page 409 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-11...
Page 410: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 411 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-32. • are driven on reasonable road surfaces within legal driving limits.
Page 412: Scheduled Maintenance
Scheduled Maintenance When the CHANGE OIL SOON message comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 413 Scheduled Maintenance (cont’d) Service Maintenance I Maintenance II Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-20. See footnote (g). Rotate tires and check inﬂation pressures and wear. See Tire Inspection and Rotation on page 5-61 and “Tire Wear Inspection” in At Least Once a Month on page 6-9.
Page 414: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 415: Maintenance Footnotes
Maintenance Footnotes # Lubricate the suspension, steering linkage, transaxle shift linkage, and the underbody contact points and linkage. (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition.
Page 416: Owner Checks And Services
(h) Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 417: At Least Once A Month
Engine Coolant Level Check Check the engine coolant level and add ® DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-24 for further details. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer ﬂuid reservoir and add the proper ﬂuid if necessary.
Page 418: Ignition Transaxle Lock Check
Automatic Transaxle Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 419: Recommended Fluids And Lubricants
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular brake, set the parking brake. • To check the parking brake’s holding ability: With the engine running and transaxle in NEUTRAL (N), slowly remove foot pressure from the regular brake pedal.
Page 420 Usage Fluid/Lubricant ® Automatic DEXRON -VI Automatic Transaxle Transmission Fluid. Multi-Purpose Lubricant, Superlube Key Lock (GM Part No. U.S. 12346241, in Cylinders Canada 10953474). Chassis Lubricant (GM Part No. U.S. 12377985, in Chassis Canada 88901242) or lubricant Lubrication meeting requirements of NLGI #2, Category LB or GC-LB.
Page 421: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Engine Air Cleaner/Filter 3.5L V6 Engine 3.9L V6 Engine Engine Oil Filter 3.5L V6 Engine 3.9L V6 Engine Passenger Compartment Air Filter Spark Plugs 3.5L V6 Engine 3.9L V6 Engine...
Page 422: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 423 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-15...
Page 424 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 425: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-4 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-6 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-8 Vehicle Data Collection and Event Data Recorders ...7-10 Collision Damage Repair ...7-11 Customer Assistance and Information...
Page 426: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Buick. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your GM dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 427 STEP THREE: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you should ﬁle with the BBB Auto Line Program to enforce any additional rights you may have.
Page 428: Online Owner Center
Assistance Center. Any TTY user can communicate with Buick by dialing: 1-800-83-BUICK. TTY users in Canada can dial 1-800-263-3830. Customer Assistance Offices Buick encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Buick, refer to the addresses below.
Page 429: United States - Customer Assistance
United States — Customer Assistance Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 www.Buick.com 1-800-521-7300 1-800-832-8425 (For Text Telephone devices (TTYs)) Roadside Assistance: 1-800-252-1112 Fax Number: 313-381-0022 From Puerto Rico: 1-800-496-9992 (English) 1-800-496-9993 (Spanish) Fax Number: 313-381-0022 From U.S. Virgin Islands...
Page 430: Gm Mobility Reimbursement Program
1-800-263-3830. Roadside Assistance Program Call 1-800-252-1112 for Buick Roadside Assistance. As the proud owner of a new Buick vehicle, you are automatically enrolled in the Buick Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 431: Canadian Roadside Assistance
Buick Roadside Assistance: 1-800-252-1112, text telephone (TTY) users, call 1-888-889-2438. Buick reserves the right to limit services or reimbursement to an owner or driver when, in Buick’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 432: Courtesy Transportation
Courtesy Transportation To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for new vehicles. The Courtesy Transportation program is offered to customers in conjunction with the Bumper-to-Bumper coverage provided by the New Vehicle Limited Warranty. Several transportation options are available when warranty repairs are required.
Page 433: Courtesy Rental Vehicle
Courtesy Rental Vehicle Your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle that you obtain if your vehicle is kept for a warranty repair. Reimbursement will be limited to a maximum amount per day and must be supported by receipts.
Page 434: Vehicle Data Collection And Event Data Recorders
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if so equipped, to provide anti-lock braking and to help the driver control the vehicle in difficult driving situations.
Page 435: Collision Damage Repair
Others, such as law enforcement, may have access to the special equipment that can read the information if they have access to the vehicle or the device that stores the data. If your vehicle is equipped with OnStar ® the OnStar subscription service agreement or manual for information on its operations and data collection.
Page 436: Insuring Your Vehicle
Insuring Your Vehicle Protect your investment in your GM vehicle with comprehensive and collision insurance coverage. There are signiﬁcant differences in the quality of coverage afforded by various insurance policy terms. Many insurance policies provide reduced protection to your GM vehicle by limiting compensation for damage repairs by using aftermarket collision parts.
Page 437 • If your vehicle cannot be driven, know where the towing service will be taking it. Get a card from the tow truck operator or write down the driver’s name, the service’s name, and the phone number. • Remove any valuables from your vehicle before it is towed away.
Page 438: Managing The Vehicle Damage Repair Process
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 439: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. Please call us at 1-800-521-7300, or write: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 440: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 441 Accessories and Modiﬁcations ... 5-3 Accessory Inﬂator ... 5-68 Accessory Power Outlet(s) ... 3-24 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-71 Additives, Fuel ... 5-5 Add-On Electrical Equipment ... 5-95 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ... 3-26 Airbag Passenger Status Indicator ...
Page 442 Audio System(s) (cont.) Navigation/Radio System, see Navigation Manual ... 3-101 Radio with CD ... 3-82 Rear Seat Audio (RSA) ... 3-115 Setting the Time ... 3-81 Theft-Deterrent Feature ... 3-117 Understanding Radio Reception ... 3-118 XM™ Satellite Radio Antenna System ... 3-119 Automatic Door Lock ...
Page 443 Check Engine Light ... 3-44 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-93 Child Restraints Child Restraint Systems ... 1-40 Infants and Young Children ... 1-37 Lower Anchors and Tethers for Children ... 1-45 Older Children ... 1-34 Securing a Child Restraint in a Rear Seat Position ...
Page 444 Customer Assistance Information (cont.) Customer Assistance Offices ... 7-4 Customer Satisfaction Procedure ... 7-2 GM Mobility Reimbursement Program ... 7-6 Reporting Safety Defects to General Motors ... 7-15 Reporting Safety Defects to the Canadian Government ... 7-15 Reporting Safety Defects to the United States Government ...
Page 445 Eight-Way Power Seats ... 1-3 Electrical System Add-On Equipment ... 5-95 Fuses and Circuit Breakers ... 5-96 Headlamp Wiring ... 5-96 Instrument Panel Fuse Block ... 5-96 Power Windows and Other Power Options ... 5-96 Underhood Fuse Block ... 5-98 Windshield Wiper Fuses ...
Page 446 Fuel ... 5-4 Additives ... 5-5 California Fuel ... 5-5 Filling a Portable Fuel Container ... 5-9 Filling Your Tank ... 5-6 Fuels in Foreign Countries ... 5-6 Gage ... 3-48 Gasoline Octane ... 5-4 Gasoline Speciﬁcations ... 5-5 Low Warning Light ... 3-48 Fuses Fuses and Circuit Breakers ...
Page 447 Hood Checking Things Under ... 5-10 Release ... 5-11 Horn ... 3-6 How to Use This Manual ... ii How to Wear Safety Belts Properly ... 1-19 Ignition Positions ... 2-32 Infants and Young Children, Restraints ... 1-37 Inﬂation – Tire Pressure ... 5-60 Instrument Panel Overview ...
Page 448 Light (cont.) Security ... 3-47 TCS Warning Light ... 3-43 Traction Control System (TCS) Warning ... 3-43 Lighting Delayed ... 3-19 Entry ... 3-19 Exit ... 3-20 Loading Your Vehicle ... 4-32 Lockout Protection ... 2-14 Locks Automatic Door Lock ... 2-14 Delayed Locking ...
Page 449 Odometer ... 3-36 Odometer, Trip ... 3-36 Off-Road Recovery ... 4-15 Engine ... 5-15 Pressure Light ... 3-46 Oil, Engine Oil Life System ... 5-18 Older Children, Restraints ... 1-34 Online Owner Center ... 7-4 ® ® OnStar System, see OnStar Manual ...
Page 450 Power (cont.) Retained Accessory (RAP) ... 2-33 Six-Way Seats ... 1-2 Sliding Door ... 2-17 Steering Fluid ... 5-37 Windows ... 2-27 Pretensioners, Safety Belt ... 1-33 Programmable Automatic Door Unlock ... 2-14 Questions and Answers About Safety Belts ... 1-18 Radiator Pressure Cap ...
Page 451 Retained Accessory Power (RAP) ... 2-33 Right Front Passenger Position, Safety Belts ... 1-28 Roadside Assistance Program ... 7-6 Rocking Your Vehicle to Get it Out ... 4-32 Running the Engine While Parked ... 2-43 Safety Belt Passenger Reminder Light ... 3-37 Pretensioners ...
Page 452 Shifting Out of Park (P) ... 2-41 Shoulder Belt Height Adjuster ... 1-27 Signals, Turn and Lane-Change ... 3-7 Sliding Door, Power ... 2-17 Sliding Doors, Dual ... 2-14 Spare Tire Accessory Inﬂator ... 5-68 Compact ... 5-86 Installing ... 5-75 Removing ...
Page 453 Tires (cont.) Compact Spare Tire ... 5-86 Different Size ... 5-64 If a Tire Goes Flat ... 5-70 Inﬂation -- Tire Pressure ... 5-60 Inﬂator, Accessory ... 5-68 Inspection and Rotation ... 5-61 Installing the Spare Tire ... 5-75 Removing the Flat Tire ... 5-75 Removing the Spare Tire and Tools ...
Page 454 Warning Lights, Gages and Indicators ... 3-34 Warnings DIC Warnings and Messages ... 3-56 Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-66 Different Size ...

Save PDF
