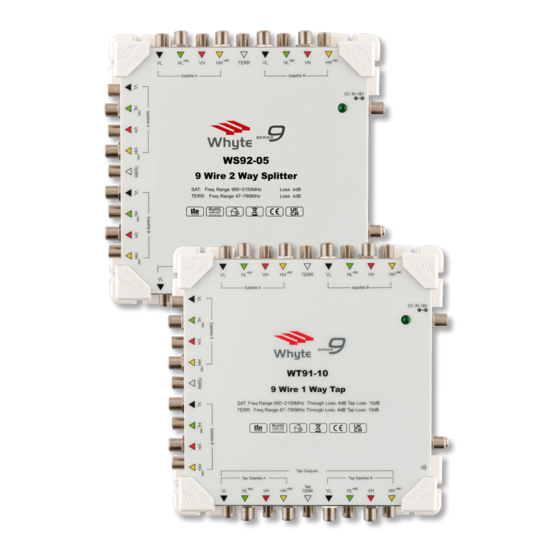

- Page 1 Series 9 Tap & Splitter INSTRUCTION MANUAL WT91-10 | WS92-05 www.whytetechnologies.com In the interest of continuous improvement, all specifications of products within this brochure are subject to change without notice.
- Page 2 CONTENTS Safety Precautions Guarantee General Description Technical Description Example Configuration Specifications...
- Page 3 Do not over tighten the F connectors (finger tight only). GUARANTEE All Whyte products are guaranteed for a period of 4 years from the date of purchase against defects. Within this guarantee period, Whyte Technologies will repair or replace the faulty product. In the unlikely event, please return any faulty products to your dealer.
- Page 4 GENERAL DESCRIPTION WT91-10 Whyte Series 9 Taps are part of the range of 9 wire passive devices that distribute IF and Terrestrial Signals. The Trunk inputs are on the top of the unit. The Tap outputs are located on the bottom of unit as indicated on the device label. The Trunk output is on the left hand side.
- Page 5 TECHNICAL DESCRIPTION WT91-10 Whyte Series 9 Taps are DC passing on all IF Trunk Lines. The HL and HH Tap Lines are DC passing while the VL, VH and Terrestrial Tap Lines are isolated. An 18V DC input is provided to inject DC on the HL and HH Trunk and Tap lines upwards and downwards.
- Page 6 EXAMPLE CONFIGURATION SAT A SAT B WATS-930 2.5A Power Supply Unit Short Circuit & Overload Prorection Model: WPSU-2.5A Input: 110-240V AC 50/60Hz Output: 18V 2.5A WPSU-2.5A DC Block DC Block WS92-05 WT92-10 2.5A Power Supply Unit 2.5A Power Supply Unit Short Circuit &...
- Page 7 Dimensions W x L x H (mm) 175 x 175 x 43 175 x 175 x 43 Weight 514g 600g Whyte Technologies - Unit 1 Watermill Business Centre, Edison Road, Enfield, EN3 7XF | Tel: 0330 999 1980 | www.whytetechnologies.com...
- Page 8 Unit 1, Watermill Business Centre. Edison Road, Enfield. EN3 7XF Tel: 0330 999 1980 | info@whytetechnologies.com | www.whytetechnologies.com Technical Support North Region South Region Daniel Hawkins MSCTE Paul Barnes MSCTE 07718 654108 07703 468149 dan@whytetechnologies.com paul@whytetechnologies.com Copyright © Whyte Technologies August 2021...
