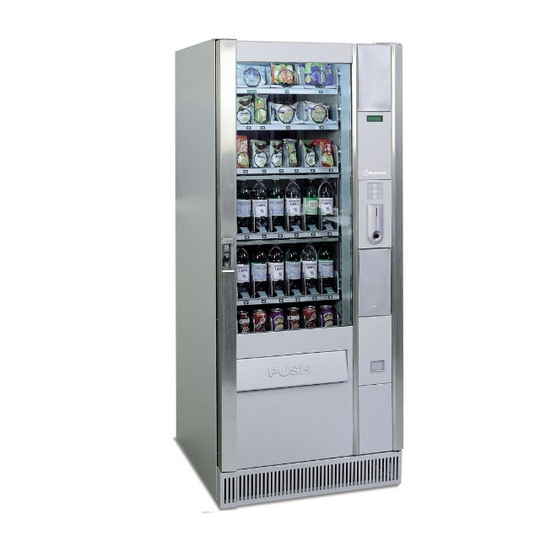

AUTOMATIC VENDING
INSTALLATION AND MAINTENANCE MANUAL
SA.ETY SYMBOLS
ATTENTION: Important safety indications
READ the instruction manual machine carefully before using the machine
.or any service or maintenance switch off the machine
ATTENTION: machine switched on
BE.ORE USING THE MACHINE, READ THIS MANUAL CARE.ULLY .OR ITS CORRECT USE IN
PICTOGRAMS
IMPORTANT NOTICES
USER
The user is defined as the person authorized to collect drinks from the automatic distributor.
The user is not allowed to undertake any maintenance operations either ordinary or extraordinary.
In the event of a fault the user is obliged to notify the maintenance technician or the person responsible
for running the automatic distributor.
MAINTENANCE TECHNICIAN
The maintenance technician is defined as being the person responsible for filling up the containers with
soluble products, sugar, coffee, stirrers and cups.
The maintenance technician is also responsible for cleaning the distributor (see operations indicated in
chapter 9.0). In the event of a fault the maintenance technician must call the installation technician.
INSTALLATION TECHNICIAN
The installation technician is defined as the person responsible for the installation of the automatic distributor,
the starting up operations and the function settings.
Each regulation operation is the exclusive responsibility of the installation technician who also holds the
programming access password.
ACCORDANCE WITH THE CURRENT SA.ETY STANDARDS.
8AC=
1
VEGA
Cod. 11086621 - ed. 01/01
