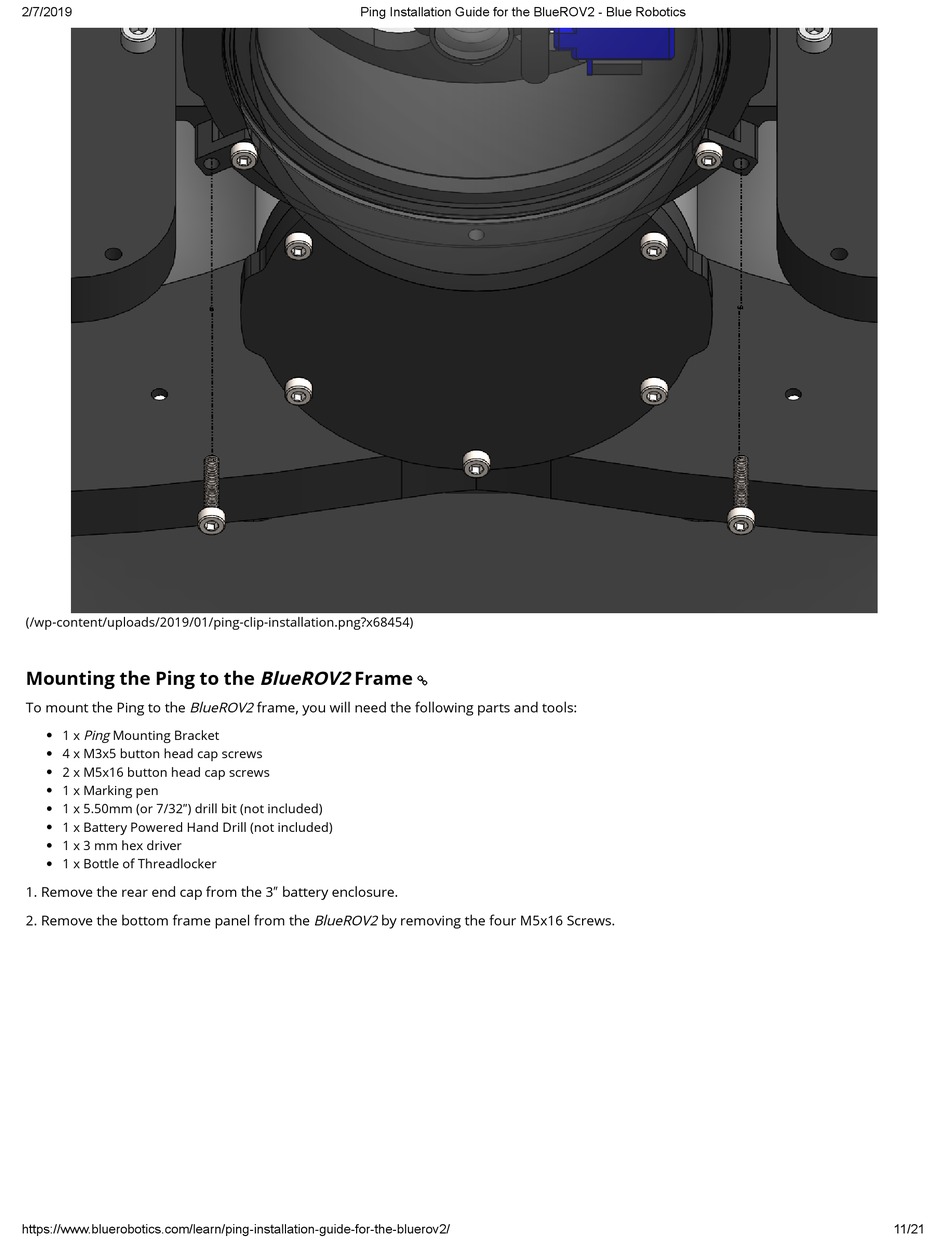

Mounting the Ping to the BlueROV2 Frame
To mount the Ping to the BlueROV2 frame, you will need the following parts and tools:
1 x Ping Mounting Bracket
4 x M3x5 button head cap screws
2 x M5x16 button head cap screws
1 x Marking pen
1 x 5.50mm (or 7/32") drill bit (not included)
1 x Battery Powered Hand Drill (not included)
1 x 3 mm hex driver
1 x Bottle of Threadlocker
1. Remove the rear end cap from the 3" battery enclosure.
2. Remove the bottom frame panel from the BlueROV2 by removing the four M5x16 Screws.
