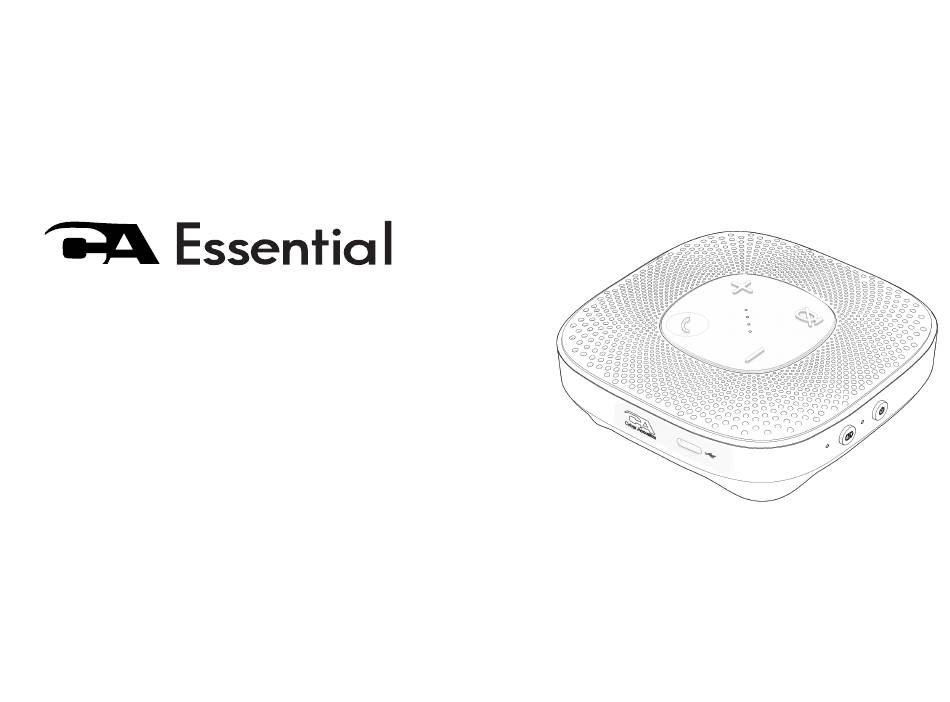

- Page 1 Quick Start Guide Speakerphone SP-2000 CA P/N: SP-2000 Rev. A00 www.CyberAcoustics.com 2021-03...
- Page 2 In the Package Quick Start Guide Speakerphone SP-2000 CA P/N: SP-2000 Rev. A00 www.CyberAcoustics.com 2021-03 Quick Start Guide USB Type A to C cable Note: The USB Type A to C cable is packed in the inner tray inside the box. Speakerphone SP-2000...
-
Page 3: Table Of Contents
Table of Contents Pages Connecting the Speakerphone Getting Started Lights Controls Technical Specifications Frequently Asked Questions 8,9,10 Customer Support Safety and Precautions Compliance Information 13,14... -
Page 4: Connecting The Speakerphone
Connecting the Speakerphone Best for Use In Office Center / USB Page 1... -
Page 5: Getting Started
Getting Started Bluetooth connection Before you start, please fully charge up the speaker. Switch on the device and it will begin “Bluetooth pairing” mode. With your audio source (smartphone, tablet, laptop, etc.), find the Bluetooth device list and look for “CA Essential SP”. Select it to pair/connect with the speaker. Bluetooth will auto reconnect last connected device after toggle key between from USB Audio source Bluetooth will reconnect last connected device after power off and power on... - Page 6 Getting Started USB connection Toggle source key to USB source Insert the end of the USB Type A Cable into the USB Type A port on your computer as show. The CA Essential Speakerphone features full plug and play support for Windows, OSX / MacOS and Chromebooks.
-
Page 7: Lights
Lights Volume LED Indicator - Volume level Indicator Light - LED is lit solid White (1 to 4 LEDs) - Mic (Voice) Indicator Light when call active - Light will flash White (1 to 4 LEDs) - Mic Muted - LEDs are lit solid Red (All 4 LEDs) Zoom Meeting/Phone Functionality - Meeting Invite or Incoming Call - Light will flash Red... -
Page 8: Controls
Controls Zoom Meeting/Phone Functionality Not supported for other Applications) Press to accept a meeting invite or answer a call. During the call, Long press the "Call" key for 1 seconds to hang up. When the call comes, long press 2 seconds to reject the call. - Page 9 Controls Main unit can’t enter standby mode when inserted DC in or when in USB Audio mode. Main unit will auto power off mode within 15 minutes if the Bluetooth is disconnected. Wake up function description Press “Power” key once in main unit to wake up main unit from standby mode. If main unit is connected with the computer through the USB type-c cable, it will also wake up from standby mode.
-
Page 10: Technical Specifications
Technical Specifications Specifications Power: • 5W * 1 for Music play (Mono) • Speaker: 20 - 20,000Hz Frequency response • Microphone: 100 - 16,000Hz • Speaker: 32 ohms Impedance • Microphone: 2.2k ohms Recommended system requirements Supported operating system Windows 10, Windows 8, Windows 7, Mac OS X 10.4.11, or higher. Operating temperature Product working at ambient temperature for 0~35°C Page 7... -
Page 11: Frequently Asked Questions
Frequently Asked Questions Frequently Asked Questions Possible Solutions Bluetooth connection • Turn off the speaker. Can’t connect for the first time • Check your Bluetooth source device and be sure you have found the section that allows you to discover new Bluetooth products. If you see the speaker on the list, but cannot connect, you may need to try and synch again. - Page 12 Frequently Asked Questions Frequently Asked Questions Possible Solutions • Open the control panel Window. USB connection • In the upper-right corner, change “View by” to Small icons. Windows 7/8: • Double click on “Sound”, then click on the “Playback” tab. Speakerphone does not set up automatically •...
- Page 13 Frequently Asked Questions Frequently Asked Questions Possible Solutions - Check the computer’s volume level. USB connection Speakerphone does not have sound / - Check proper seating of cable connection. Microphone is not working - Verify the application settings you are using. Some applications have separate volume level control.
-
Page 14: Customer Support
Customer Support If you have a question about your CA Essential Speakerphone, our Customer Support Team wants to assist you. Contact us at: www.cyberacoustics.com/support/contact Page 11... -
Page 15: Safety And Precautions
- Do not expose to excessive heat (e.g. from storage in direct sunlight, fire or the like). 2021 Cyber Acoustics or its subsidiaries. All rights reserved. Cyber Acoustics and other trademarks are trademarks of Cyber Acoustics or its subsidiaries. Other trademarks may be trademarks of their respective owners. -
Page 16: Compliance Information
Unique Identifier: (SP-2000) Responsible Party - Cyber Acoustics LLC 3109 NE 109th Ave., Vancouver, WA 98682 cyberacoustics.com Compliance Information Statement: FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. - Page 17 IC WARNING This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
