Installation And Mounting; Wiring Instructions - Code 3 CD5031 Installation And Operation Instructions Manual

Installation and Mounting:

IMPORTANT! This unit is a safety device and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.
Note: It is recommended to isolate wires/blunt wires that were cut or not used.
The light head has a small round hole covered with vent membrane that must face downward when mounting the light head.
10in-lbs max.
screw torque

Wiring Instructions:

CD5031XX
RED Wire:
WHITE Wire:
BLACK Wire:
BLUE Wire:
BLUE Wire to Positive:
YELLOW Wire:
(Up to 8 units can be Synchronized)
Figure 1
Positive, Colors 1 & 3 (need to add
2A fuse)
Positive, Colors 2 & 4 (need to add
2A fuse)
Negative
Pattern Select to Negative
DIM
Synchronized Function
CAUTION!
When drilling into any vehicle surface, make sure that the
area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged.
10in-lbs max.
screw torque

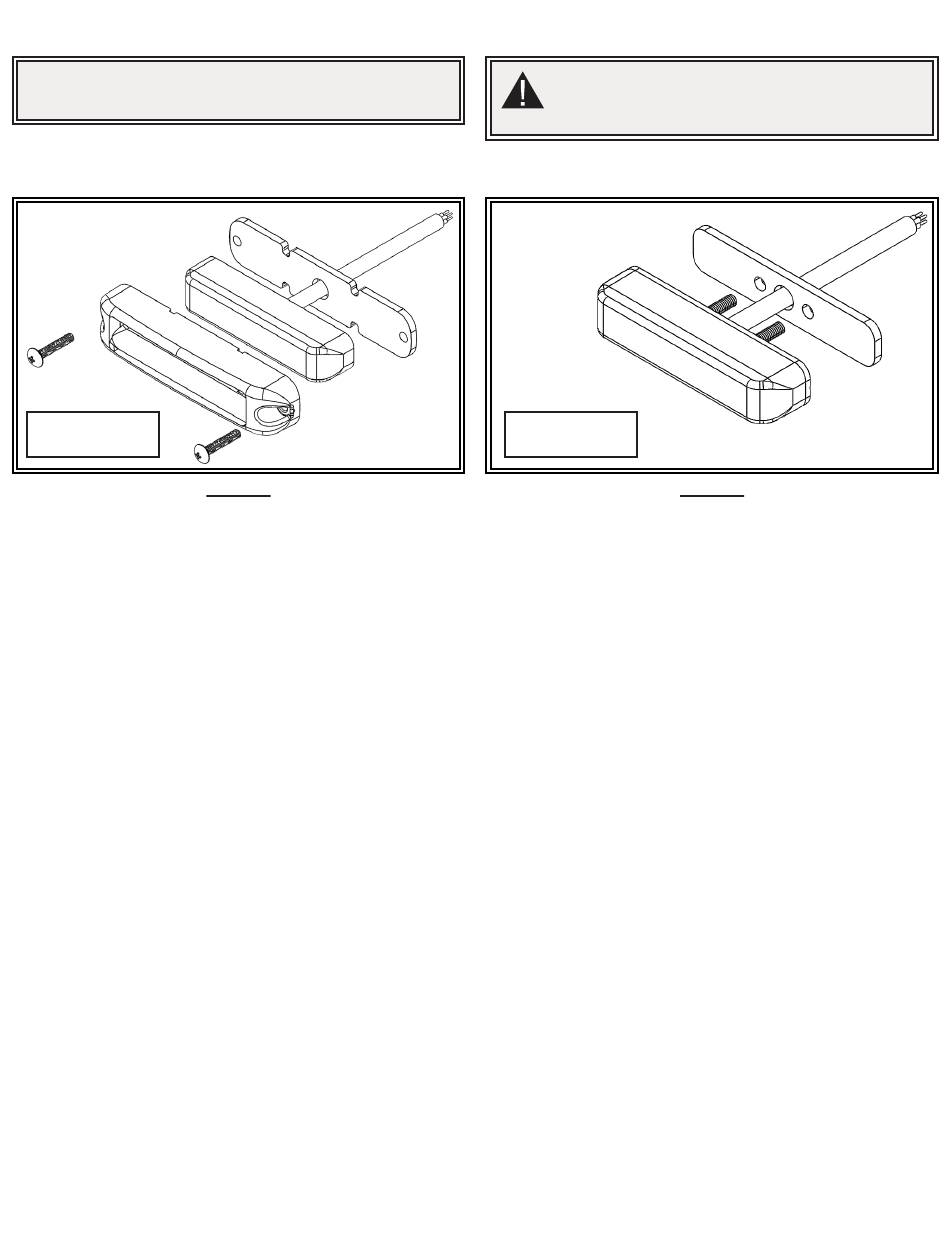

Figure 2
