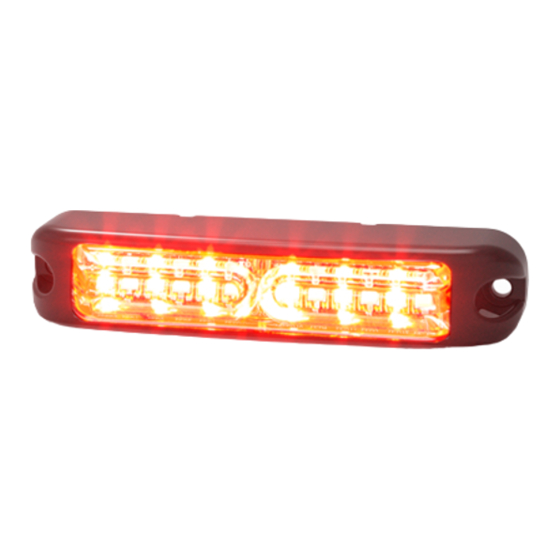

Surface mount/stud mount,12led, dual color
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

IMPORTANT! Read all instructions before installing and using. Installer: This manual must be delivered to the end user.
WARNING!
Failure to install or use this product according to manufacturer's recommendations may result in property damage, serious injury, and/
or death to those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understood the safety information
contained in this manual.
1.
Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to
ensure the safety of emergency personnel and the public.
2.
Emergency warning devices often require high electrical voltages and/or currents. Exercise caution when working with live electrical
connections.
3.
This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,
which can cause personal injury and/or severe vehicle damage, including fire.
4.
Proper placement and installation is vital to the performance of this warning device. Install this product so that output performance of
the system is maximized and the controls are placed within convenient reach of the operator so that they can operate the system without
losing eye contact with the roadway.
5.
Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an air bag
deployment area may reduce the effectiveness of the air bag or become a projectile that could cause serious personal injury or death.
Refer to the vehicle owner's manual for the air bag deployment area. It is the responsibility of the user/operator to determine a suitable
mounting location ensuring the safety of all passengers inside the vehicle particularly avoiding areas of potential head impact.
6.
It is the responsibility of the vehicle operator to ensure daily that all features of this product work correctly. In use, the vehicle operator
should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors),
people, vehicles or other obstructions.
7.
The use of this or any other warning device does not ensure all drivers can or will observe or react to an emergency warning signal.
Never take the right-of-way for granted. It is the vehicle operator's responsibility to be sure they can proceed safely before entering an
intersection, drive against traffic, respond at a high rate of speed, or walk on or around traffic lanes.
8.
This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws
regarding emergency warning devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The
manufacturer assumes no liability for any loss resulting from the use of this warning device.
Specifications:
Input Voltage:
Max Current:
CD5031XX
Temp. Range:
Installation and Operation Instructions
CD5031 SURFACE MOUNT/STUD
MOUNT,12LED, DUAL COLOR
12 - 24VDC
0.6A @ 12VDC
-40ºC to 65ºC
-40ºF to 149ºF
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD5031 and is the answer not in the manual?

Questions and answers

Summary of Contents for Code 3 CD5031

  • Page 1 Installation and Operation Instructions CD5031 SURFACE MOUNT/STUD MOUNT,12LED, DUAL COLOR IMPORTANT! Read all instructions before installing and using. Installer: This manual must be delivered to the end user. WARNING! Failure to install or use this product according to manufacturer’s recommendations may result in property damage, serious injury, and/...
  • Page 2: Installation And Mounting

    Installation and Mounting: IMPORTANT! This unit is a safety device and it must be connected CAUTION! to its own separate, fused power point to assure its continued When drilling into any vehicle surface, make sure that the operation should any other electrical accessory fail. area is free from any electrical wires, fuel lines, vehicle upholstery, etc.
  • Page 3: Flash Patterns

    Flash Patterns: Phase Operation: Phase 1 (Ph1) flashes simultaneously with Ph1 Phase 2 (Ph2) flashes simultaneously with Ph2 Ph1 alternates with Ph2 (Up to 8 units can be Synchronized) Apply BLUE TO BLACK wire: -Less than 1 sec. for next pattern -Between 1-3 sec for previous pattern -Between 3-5 sec.
  • Page 4 Dual Color Flash Pattern Chart SAE J595 CAT 13 ECE R65 LED Color 1 & Color LED Color LED Color 3 LED Color 2 & Pattern 1 & Color 3 2 & Color 4 FLASH PATTERN Color 4 Red & White Red Wire White Wire Wire...
  • Page 5 Dual Color Flash Pattern Chart (Continued) SAE J595 CAT 13 ECE R65 LED Color 1 & Color LED Color LED Color 3 LED Color 2 & Pattern 1 & Color 3 2 & Color 4 FLASH PATTERN Color 4 Red & White Red Wire White Wire Wire...
  • Page 6 Dual Color Flash Pattern Chart (Continued) SAE J595 CAT 13 ECE R65 LED Color 1 & Color LED Color LED Color 3 LED Color 2 & Pattern 1 & Color 3 2 & Color 4 FLASH PATTERN Color 4 Red & White Red Wire White Wire Wire...
  • Page 7 Notes Page 7 of 24...
  • Page 8: Troubleshooting

    *Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.;...
  • Page 9 Installation and Operation Instructions MONTAJE EN SUPERFICIE/EN PERNO DE LA SERIE CD5031, CON 12 LUCES IMPORTANTE Lea todas las instrucciones antes de la instalación y el uso del producto. Instalador: se debe entregar este manual al usuario ¡ADVERTENCIA! Si no sigue las instrucciones del fabricante a la hora de instalar o usar el producto, pueden producirse daños materiales, y lesiones graves o incluso mortales a aquellos que pretende proteger.
  • Page 10: Instalación Y Montaje

    Instalación y montaje: IMPORTANTE Esta unidad es un dispositivo de seguridad, y debe PRECAUCIÓN: conectarse a una toma independiente de alimentación con fusible Cuando taladre cualquier superficie del vehículo, asegúrese para garantizar su funcionamiento continuo si fallase cualquier de que no exista el riesgo de dañar cables eléctricos, tubos de combustible, tapicería de vehículo, etc.
  • Page 11 Patrones de parpadeo: Funcionamiento de fase: La fase 1 (Ph1) parpadea simultáneamente con Ph1 La fase 2 (Ph2) parpadea simultáneamente con Ph2 Ph1 se alterna con Ph2 (se pueden sincronizar hasta 8 unidades) Aplique el cable AZUL al cable NEGRO: - Menos de 1 segundo para el siguiente patrón - Entre 1 y 3 segundos para el patrón anterior - Entre 3 y 5 segundos para el patrón predeterminado de fábrica...
  • Page 12 Tabla de patrones de parpadeo de color doble SAE J595 CAT 13 ECE R65 Color 2 y Color 1 y 3 del LED, Color 1 y 3 4 del LED y color 2 y 4 del Patrón del LED para PATRÓN DE PARPADEO SINCRO- para el ca-...
  • Page 13 Tabla de patrones de parpadeo de color doble (continuación) SAE J595 CAT 13 ECE R65 Color 2 y Color 1 y 3 del LED, Color 1 y 3 4 del LED y color 2 y 4 del Patrón del LED para PATRÓN DE PARPADEO SINCRO- para el ca-...
  • Page 14 Tabla de patrones de parpadeo de color doble (continuación) SAE J595 CAT 13 ECE R65 Color 2 y Color 1 y 3 del LED, Color 1 y 3 4 del LED y color 2 y 4 del Patrón del LED para PATRÓN DE PARPADEO SINCRO- para el ca-...
  • Page 15 Notas Page 15 of 24...
  • Page 16: Solución De Problemas

    Si un producto debe devolverse para su reparación o sustitución*, póngase en contacto con nuestra fábrica para obtener un número de autori- zación de devolución de productos (número RGA por sus siglas en inglés) antes de enviar el producto a Code 3®, Inc. Escriba el número RGA de forma clara en el paquete junto a la etiqueta de correos.
  • Page 17: Caractéristiques

    Installation and Operation Instructions MONTAGE EN SURFACE/MONTAGE À ERGOT CD5031, 12 LED, BICOLORE ATTENTION ! Lisez toutes les instructions avant d'installer et d'utiliser le produit. Installateur : ce manuel doit être remis à l'utilisateur final. AVERTISSEMENT ! Une installation ou une utilisation non conforme aux recommandations du fabricant peut entraîner des dommages matériels et des blessures graves, voire mortelles pour les personnes que vous cherchez à...
  • Page 18: Installation Et Montage

    Installation et montage : ATTENTION ! Cette unité est un dispositif de sécurité et elle doit ATTENTION ! être connectée à son propre point d'alimentation indépendant Avant de percer la surface d'un véhicule, assurez-vous protégé par fusible pour garantir son fonctionnement continu en qu'elle ne comporte aucun fil électrique, aucune conduite de carburant, aucune garniture du véhicule, etc.
  • Page 19 Modes de clignotement : Fonctionnement en phase : La phase 1 (Ph1) clignote simultanément avec Ph1 La phase 2 (Ph2) clignote simultanément avec Ph2 Ph1 alterne avec Ph2 (jusqu'à 8 unités peuvent être synchronisées) Appliquer le fil BLEU VERS NOIR : -Moins de 1 sec pour le mode suivant -Entre 1 et 3 sec pour le mode précédent -Entre 3 et 5 sec pour le mode par défaut d'usine...
  • Page 20 Tableau des modes de clignotements bicolores SAE J595 CATÉGORIE 13 ECE R65 LED couleur 1 et cou- couleur 1 et couleur 2 et leur 3 LED couleur 2 Modèle MODE DE CLIGNOTEMENT couleur 3 : couleur 4 : et couleur 4 : câbles SYN- câble rouge câble blanc...
  • Page 21 Tableau des modes de clignotements bicolores (suite) SAE J595 CATÉGORIE 13 ECE R65 LED couleur 1 et cou- couleur 1 et couleur 2 et leur 3 LED couleur 2 Modèle MODE DE CLIGNOTEMENT couleur 3 : couleur 4 : et couleur 4 : câbles SYN- câble rouge câble blanc...
  • Page 22 Tableau des modes de clignotements bicolores (suite) SAE J595 CATÉGORIE 13 ECE R65 LED couleur 1 et cou- couleur 1 et couleur 2 et leur 3 LED couleur 2 Modèle MODE DE CLIGNOTEMENT couleur 3 : couleur 4 : et couleur 4 : câbles SYN- câble rouge câble blanc...
  • Page 23 Remarques Page 23 of 24...
  • Page 24: Dépannage

    à utiliser suffisamment de matériaux d'emballage pour éviter que le produit ne soit endommagé pendant le transport de retour. *Code 3®, Inc. se réserve le droit d'effectuer toute réparation ou tout remplacement à sa discrétion. Code 3®, Inc. décline toute responsabilité liée aux frais occasionnés par la dépose et/ou la réinstallation de produits nécessitant une réparation et/ou un entretien, liée à...
