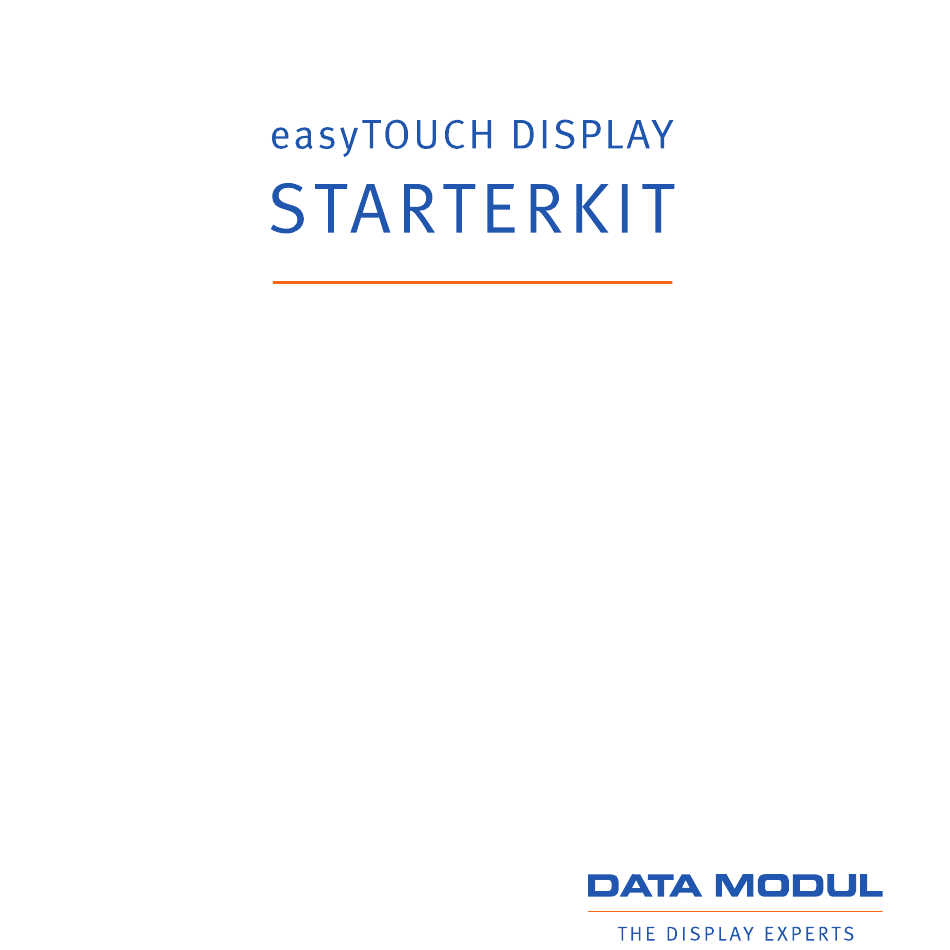

- Page 1 QUICK START GUIDE...
- Page 2 SCOPE OF DELIVERY easyTOUCH Display OSD cable eMotion board* USB cable OSD board +12V power supply DVI/HDMI cable Power cord (EU) LVDS cable Power cord (US) LED cable easyANALYZER software (USB stick) *Connector numberings (CN) can be found on the front of the eMotion board.
- Page 3 The components can be assembled together in just a few steps using our guidelines! The perfect combination of our in-house developed easyTOUCH Display and eMotion board enable you to evaluate our PCAP and display performance. Further PCAP tuning and debugging is possible using the easyANALYZER software developed by our engineers for our easyTOUCH solutions.
- Page 4 (CN108) LVDS cable and LED cable Connect OSD board with eMotion board by using (CN112) OSD cable Connect USB cable with USB touch controller board on the back side of the easyTOUCH Display Connect DVI cable with (CN100) eMotion board...
- Page 5 Connect HDMI USB cable to your host system After ALL other connections have been made, supply +12V power to eMotion board Plug in power cord (EU) / (US) Optional: Install easyANALYZER software on your host system (for Windows and Linux) Let´s start!
- Page 6 DATA MODUL AG I www.data-modul.com Landsberger Str. 322 I DE-80687 Munich I Phone: +49 89 56017 0...
