QUICK START GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the easyTOUCH and is the answer not in the manual?

Questions and answers

Related Manuals for Data Modul AG easyTOUCH

Summary of Contents for Data Modul AG easyTOUCH

  • Page 1 QUICK START GUIDE...

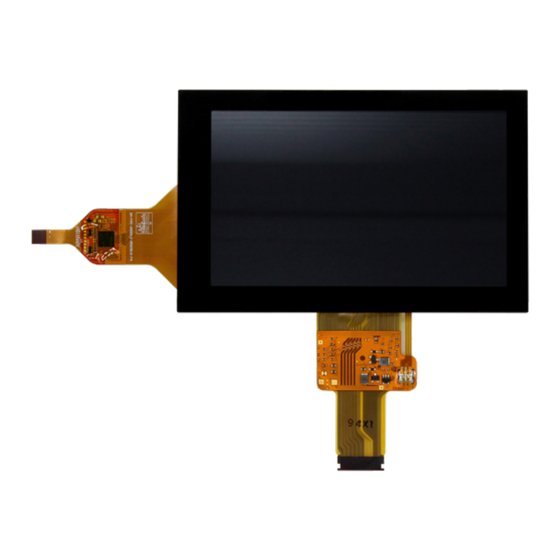

  • Page 2 The components can be assembled together in just a few steps using our guidelines! The perfect combination of our in-house developed easyTOUCH Display and eMotion board enable you to evaluate our PCAP and display performance. Further PCAP tuning and debugging is possible using the easyANALYZER software developed by our engineers for our easyTOUCH solutions.

  • Page 3: Scope Of Delivery

    SCOPE OF DELIVERY easyTOUCH Display LED cable I2C-to-USB adaptor OSD cable Dispcon board USB cable eMotion board* +12V power supply OSD board Power cord (EU) DVI/HDMI cable Power cord (US) LVDS cable easyANALYZER software (USB stick) *Connector numberings (CN) can be found on the front of the eMotion board.
  • Page 4 INSTALLATION GUIDE Connect easyTOUCH Display PCAP flex tail (CN X1) with I2C-to-USB adaptor board Connect easyTOUCH Display LCD flex tail to (CN X300) the Dispcon board (CN X100) Connect Dispcon board (CN105) eMotion board using LVDS cable (CN X200) Connect Dispcon board...
  • Page 5 Connect DVI cable with (CN100) eMotion board Connect HDMI and USB cable to your host system After all other connections have been made, (CN103) supply +12V power to emotion board Plug in power cord (EU)/ (US) Optional: Install easyANALYZER software on your host system (for Windows and Linux)
  • Page 6 DATA MODUL AG I www.data-modul.com Landsberger Str. 322 I DE-80687 Munich I Phone: +49 89 56017 0...
