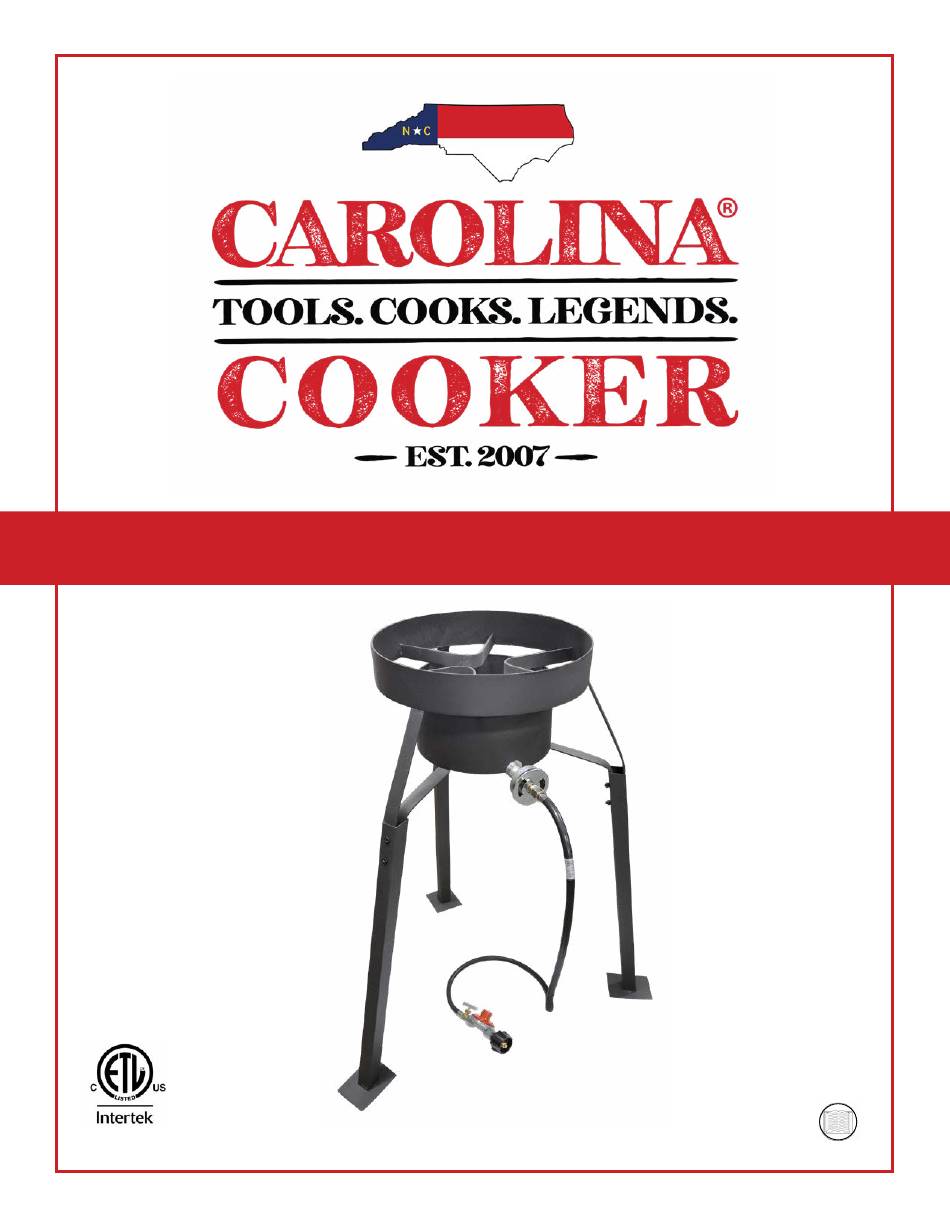

- Page 1 Discada Burner Stand Owner’s Guide M116672 Read and understand this manual to safely operate and maintain this product. 5015287...
- Page 3 Failure to follow these hazard instructions when using the Carolina Cooker® Discada Burner Stand (appliance) could result in a fire or explosion causing property damage, personal injury, or even death. DANGER If you smell gas: 1. Shut off gas to the appliance.
-
Page 4: Table Of Contents
5. Assembly and Startup Procedure ... 11 1.1 Welcome to the Carolina Cooker® Family ..2 5.1 General Assembly Instructions....11 5.2 Contents . -
Page 5: General Information
Congratulations on your choice of a Carolina Cooker® • Safety labels on the appliance or LP cylinder. Discada Burner Stand. This Owner’s Guide covers the •... -
Page 6: Contents
1.6 Specifications M116672 Specifications Description Specification Cooking Weight Capacity 40 pounds 32in. High x 14 in. Overall Size Diameter Maximum Pot Diameter 14 inches Hose and Pressure Regulator Included Hose Length 48 inches Wind Shield 5 inches High BTU Output 46,000 BTU Carolina Cooker® Model M116672 844-478-4334 January 2021... -
Page 7: Safety Nomenclature
NOTICE Carolina Cooker® cannot anticipate every possible Indicates that equipment or property damage can circumstance that might involve a potential hazard. result if instructions are not followed. -
Page 8: Safety Icon Nomenclature
No alcoholic influence No drug influence No smoking No use by young children Do not operate inside a vehicle, such as a food truck Do not operate inside a tent or other temporary structure Carolina Cooker® Model M116672 844-478-4334 January 2021... -
Page 9: General Safety
No Unattended Use area. Never leave the appliance unattended. Even with low flame, heat will build up Carbon monoxide is odorless, colorless, and quickly and may ignite foods or other combustible material. tasteless, which makes it difficult to detect. Most cases of carbon monoxide poisoning are due to No Unauthorized Modifications inadequate ventilation or poor maintenance of the Do not modify the appliance or any of appliance. its safety devices. Do not weld on the appliance or burner. Unauthorized modifications may impair its function and safety. Personal injury or Early symptoms of carbon monoxide (CO) poisoning death can result from unauthorized modifications. can mimic many common ailments and may easily be If the appliance has been altered in any way from the confused with food poisoning, viral infections, flu, or original design, the distributor does not accept any simple tiredness. Symptoms to watch for include: liability for injury or warranty. Model M116672 Carolina Cooker® January 2021 844-478-4334... -
Page 10: Location Safety
Burn Protection contain a cooking fire. Use well-insulated, properly fitting pot holders or oven mitts for protection from hot surfaces or splatter Fire Hazard – DO NOT USE WATER from cooking liquids. In the event of an oil/grease fire, do not attempt to extinguish with water. If a Eye Protection fire extinguisher is not available, use dirt, sand, or Safety goggles are recommended for eye protec- baking soda. tion whenever using hot cooking liquids. Stay Clear Do not use the appliance if it is damaged in Clear the area of people, especially small children any way. If in doubt, do not use the and pets, before using the appliance. Under no circum- appliance. stances should children, pets, or unauthorized persons be allowed near the appliance. Carolina Cooker® Model M116672 844-478-4334 January 2021... -
Page 11: Lp (Propane) Gas And Lp Cylinder Safety
Use an open vehicle, such as a pickup truck. 2. Allow only qualified LP gas dealers to properly fill or repair the LP cylinder. DO NOT OVER FILL. Model M116672 Carolina Cooker® January 2021 844-478-4334... -
Page 12: Terminology And Appliance Nomenclature
Device pressure regulator. Cooking Oil, grease, or water. A manually-operated device which permits Liquid Valve the control of gas flow. The temperature at which oil or grease will Flash Point catch on fire. Carolina Cooker® Model M116672 844-478-4334 January 2021... -
Page 13: Nomenclature
Hose Gas Pressure Regulator Control Valve (ON/ OFF) Gas Pressure Regulator Gas Pressure Regulator Connector (black threaded portion) Detachable Legs, Assembled Air Shutter, Spring and Orifice Gas Pressure Regulator, Hose Assembly Model 116672 Model M116672 Carolina Cooker® January 2021 844-478-4334... - Page 14 The shipping box should contain: a. The base assembly. b. Regulator hose assembly with cut-off valve. c. Air shutter, spring and orifice. d. Detachable Legs. e. Hardware bag. Model 116672 Model 116672 Carolina Cooker® Model M116672 844-478-4334 January 2021...
- Page 15 Note: To prevent damage to fittings or burner assembly position. when tightening connection, hold the brass fitting with one wrench while tightening the regulator hose assembly fitting with the other wrench. Do not tighten the connection using a single wrench. Model M116672 Carolina Cooker® January 2021 844-478-4334...
- Page 16 LP cylinder. Keep the fuel supply hose away WARNING from any heated surface(s). 5.4.2 Connecting Instructions 1. Make sure the LP cylinder is upright and the valve is closed by turning the knob clockwise. Carolina Cooker® Model M116672 844-478-4334 January 2021...
-
Page 17: Soapy Water Test
LP Cylinder valves and disconnect it. 9. Replace the protective LP cylinder cap when the tank is not connected. 2. Prepare a soapy water solution by combining one part dish washing liquid with three parts water. Model M116672 Carolina Cooker® January 2021 844-478-4334... -
Page 18: Lighting Instructions
7. If the burner flame does not burn blue, check the burner venturi for any obstructions. Dirt daubers, spiders, and other insects will build nests blocking air and gas flow. Carolina Cooker® Model M116672 844-478-4334 January 2021... -
Page 19: Cooking Guidelines
Never operate this appliance in temperature to decrease to 350° F (177° C) or less an enclosed structure such as before relighting. a house, pavilion, tent structure, or food serving vehicle. When cooking with oil or grease, a thermometer MUST be used to prevent overheating of the oil. 6.1.1 Prior to Cooking Always completely thaw and towel dry food before Do NOT leave the appliance unattended while the placing it in the appliance. Introduction of water or burner is lit or while heating oil, grease, water, or ice, especially from frozen or thawed food prod- when cooking food. ucts, into the oil/grease may cause overflow and severe burns from hot oil and steam. Carefully monitor the appliance, especially Use extreme care when lowering food into hot when the cooking oil, grease, or water is above 100° F (38° C). cooking liquid. Never drop or throw food or acces- sories into hot cooking liquid. Slowly lower food or accessories into the cooking liquid in order to prevent splashing or overflow. Model M116672 Carolina Cooker® January 2021 844-478-4334... -
Page 20: After Cooking
LP gas can cause severe burns form freezing. Turn OFF the burner. Carolina Cooker® Model M116672 844-478-4334 January 2021... - Page 21 Keep all flammable products such as paper use, this is another reason not to leave cooking oil towels and other cloth items away from the unattended during heat up and cooking. appliance. Model M116672 Carolina Cooker® January 2021 844-478-4334...
- Page 22 4. Store the appliance away from the reach of children. 10. Warranty Carolina Cooker® warrants, to the original purchaser, Note: Paint finish may burn off under normal use and, the appliance to be free of defects in material and therefore, it carries no warranty.
- Page 23 Obstruction of combustion and WARNING ventilation airflow can prevent proper gas mixture inside the burner, resulting in a burner tube fire. Model M116672 Carolina Cooker® January 2021 844-478-4334...
- Page 24 Part Description Number High-Pressure Cast Iron Burner (burner diameter and length: 84555 3-3/4 in. x 8-3/4 in.) High-Pressure Regulator Hose Assembly with 119225 Cut-off Valve Shutter, Orifice & Spring 109135 Detachable Leg 119306 Carolina Cooker® Model M116672 844-478-4334 January 2021...
-
Page 25: Parts Breakdown
13. Parts Breakdown M116672 Component Parts M116672 Component Parts Item Description Material Qty. Item Part Material Qty. Brass Orifice Connector Brass Steel Stand Steel Steel, brass Burner Cast Iron Regulator & Hose Assembly and PVC Long Bolt M6X60 Steel Detachable Leg... -
Page 26: Troubleshooting
Blockage in the burner tube or diffuser. Clean the burner. Water in burner head. Remove water and make sure burner is completely dry before relighting. Faulty burner. Replace burner with factory certified replacement part. Carolina Cooker® Model M116672 844-478-4334 January 2021... - Page 28 Distributed by Direct Distributors, Inc. Carolina Cooker ® P.O. Box 799 Garner, NC 27529 Orders: 833‑926‑6537 Inquiries: 844‑478‑4334 Web: www.CarolinaCooker.com For a full‑size versions of the English, Spanish & French Owner’s Guide, scan the QR Code. © Direct Distributors Inc. 2021 No portion of this material may be reproduced or modified without the express written agreement of Direct Distributors Inc.
