Summary of Contents for Carolina Cooker M64482

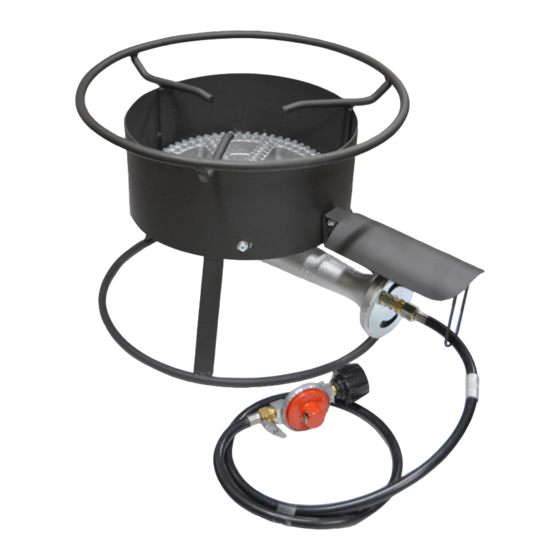

- Page 1 Banjo Burner Owner’s Guide M64482 Read and understand this manual to safely operate and maintain this product. 5015287...
- Page 2 Failure to follow these hazard instructions when using the Carolina Cooker® Banjo Burner (appliance) could result in a fire or explosion causing property damage, personal injury, or even death. DANGER If you smell gas: 1. Shut off gas to the appliance.
-
Page 3: Table Of Contents
5. Assembly and Startup Procedure ... 11 1.1 Welcome to the Carolina Cooker® Family ..2 5.1 General Assembly Instructions....11 5.2 Contents . -
Page 4: General Information
Congratulations on your choice of a Carolina Cooker® • Safety labels on the appliance or LP cylinder. Banjo Burner. This Owner’s Guide covers the Carolina Cooker®... -
Page 5: Unanswered Questions
Do not use any materials or components from the appliance or the LP cylinder for any other purpose. 1.6 Specifications M64482 Banjo Burner Specifications Description Specification Cooking Pot Capacity 100 Quarts 12-1/4 in. High x 16-1/4 in. -
Page 6: Safety Nomenclature
NOTICE Carolina Cooker® cannot anticipate every possible Indicates that equipment or property damage can circumstance that might involve a potential hazard. result if instructions are not followed. -
Page 7: Safety Icon Nomenclature
No alcoholic influence No drug influence No smoking No use by young children Do not operate inside a vehicle, such as a food truck Do not operate inside a tent or other temporary structure Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 8: General Safety
Carbon monoxide is odorless, colorless, and No Unattended Use Never leave the appliance unattended. tasteless, which makes it difficult to detect. Most Even with low flame, heat will build up cases of carbon monoxide poisoning are due to quickly and may ignite foods or other combustible inadequate ventilation or poor maintenance of the material. appliance. No Unauthorized Modifications Early symptoms of carbon monoxide (CO) poisoning Do not modify the appliance or any of can mimic many common ailments and may easily be its safety devices. Do not weld on the confused with food poisoning, viral infections, flu, or appliance or burner. Unauthorized modifications may simple tiredness. Symptoms to watch for include: impair its function and safety. Personal injury or death can result from unauthorized modifications. If the appliance has been altered in any way from the original design, the distributor does not accept any liability for injury or warranty. Model M64482 Carolina Cooker® June 2020 844-478-4334... -
Page 9: Location Safety
Burn Protection fire extinguisher may, but not necessarily always, Use well-insulated, properly fitting pot holders contain a cooking fire. or oven mitts for protection from hot surfaces or splatter from cooking liquids. Fire Hazard – DO NOT USE WATER In the event of an oil/grease fire, do not Eye Protection Safety goggles are recommended for eye protec- attempt to extinguish with water. If a tion whenever using hot cooking liquids. fire extinguisher is not available, use dirt, sand, or baking soda. Stay Clear Clear the area of people, especially small chil- dren and pets, before using the appliance. Under Do not use the appliance if it is damaged in no circumstances should children, pets, or unauthorized any way. If in doubt, do not use the persons be allowed near the appliance. appliance. Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 10: Lp (Propane) Gas And Lp Cylinder Safety
Use an open vehicle, such as a pickup truck. 2. Allow only qualified LP gas dealers to properly fill or repair the LP cylinder. DO NOT OVER FILL. Model M64482 Carolina Cooker® June 2020 844-478-4334... -
Page 11: Terminology And Appliance Nomenclature
Device pressure regulator. Cooking Oil, grease, or water. A manually-operated device which permits Liquid Valve the control of gas flow. The temperature at which oil or grease will Flash Point catch on fire. Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 12: Nomenclature
Gas Pressure Regulator and Hose Assembly (10 PSI) Hose Gas Pressure Regulator Control Valve (ON/OFF) Gas Pressure Regulator Gas Pressure Regulator Connector (black threaded portion) Gas Pressure Regulator and Hose Assembly M64482 Burner Model M64482 Carolina Cooker® June 2020 844-478-4334... -
Page 13: Assembly And Startup Procedure
If parts are damaged or missing, call 800-345-0169. Contents Item Description M64482 Base (frame) with Burner Hose Assembly and Regulator with Straight Brass Orifice Fitting, Air Shutter, and Spring Heat Shield Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 14: Connecting The Lp Cylinder
“6. Cooking Guidelines” on page 16. Never use a cooking pot or SAFETY other vessel that does not INSTRUCTIONS correctly fit or is not properly suspended inside the circular frame of the appliance. Model M64482 Carolina Cooker® June 2020 844-478-4334... -
Page 15: Soapy Water Test
Keep your hands, hair, and face away from the burner. Do not lean over the appliance when lighting the burner or cooking Carolina Cooker® Model M64482 844-478-4334 June 2020... - Page 16 LP cylinder valve OFF. Wait five minutes for fumes to diminish before relighting. 4. After the burner is lit, open the shut-off valve until the flame is blue in color. Model M64482 Carolina Cooker® June 2020 844-478-4334...
-
Page 17: Cooking Guidelines
Never use a cooking container larger than the vat. capacity of the appliance. For Boilers, the appliance is only WARNING In cases of bad weather such as rain, snow, hail, intended for heating water (not sleet, or other forms of precipitation while cooking oil or grease). with oil or grease, cover the cooking vessel immediately. This appliance gets dangerously hot while in Turn off the burners and gas supply and do not attempt to use. Use well-insulated pot holders or oven mitts move the appliance. for protection from hot surfaces or splatter from cooking Do NOT move the appliance when in use. Allow the liquids. Safety glasses or goggles are also recommended cooking liquid to cool to 100° F (38° C) before to protect from oil splatter. moving or storing. Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 18: After Cooking
Cover the food item with at least two inches of water while still allowing at least three inches of space between the top of the pot and the water. Model M64482 Carolina Cooker® June 2020 844-478-4334... -
Page 19: Reusing Cooking Oil
9. Remove the cooked food and test it with an accurate food grade thermometer. USDA Recommended Safe Minimum Internal Temperatures Meat Temperature Poultry 165° F Ground meats 160° F Fresh beef, lamb, or veal 145° F Pork and ham 145° F Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 20: Cleaning
4. Store the appliance away from the reach of children. 10. Warranty Carolina Cooker® warrants, to the original purchaser, Note: Paint finish may burn off under normal use and, the appliance to be free of defects in material and therefore, it carries no warranty. -
Page 21: Maintenance
Obstruction of combustion and WARNING ventilation airflow can prevent proper gas mixture inside the burner, resulting in a burner tube fire. Carolina Cooker® Model M64482 844-478-4334 June 2020... -
Page 22: Replacement Parts
1-800-345-0169 (phone) 1-919-284-2306 (fax) Our mail order hours of operation are Monday through Friday, 7:30am to 10:00pm, and Saturday from 8:00am to 5:00pm (EST). M64482 Banjo Burner Replacement Parts Description Part Number Cast Iron Burner 64494 (burner diameter and length: 10 in. x 15 in. -
Page 23: Parts Breakdown
13. Parts Breakdown M64482 Component Parts Item Parts Material Qty. Steel Stand Steel Burner Cast Iron Shutter Steel Spring Steel Brass Orifice Connector Brass Regulator and hose assembly Steel, brass and PVC Wind Shield Steel M6 X16 Bolt Steel M6 X12 Bolt Steel Carolina Cooker®... -
Page 24: Troubleshooting
Blockage in the burner tube or diffuser. Clean the burner. Water in burner head. Remove water and make sure burner is completely dry before relighting. Faulty burner. Replace burner with factory certified replacement part. Model M64482 Carolina Cooker® June 2020 844-478-4334... - Page 25 Notes Carolina Cooker® Model M64482 844-478-4334 June 2020...
- Page 26 Notes Model M64482 Carolina Cooker® June 2020 844-478-4334...
- Page 28 Distributed by Direct Distributors, Inc. Carolina Cooker ® P.O. Box 799 Garner, NC 27529 Orders: 800-345-0169 Inquiries: 844-478-4334 Web: www.CarolinaCooker.com © Direct Distributors Inc. 2020 No portion of this material may be reproduced or modified without the express written agreement of Direct Distributors Inc.
