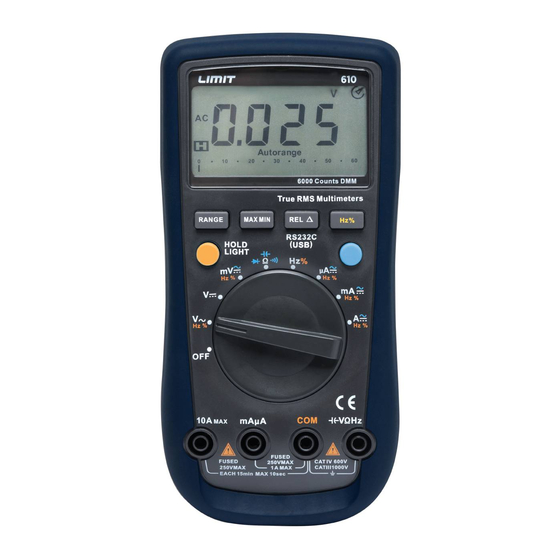

- Page 6 This Operating Manual covers information on safety and cautions. Please read the relevant information carefully and observe all the Warnings and Notes strictly. Limit 610 is a digits instrument for professional use. Large display with backlight. Analogue bar graph for quick and unstable signals. True RMS for voltage and current measurements of non linear signals.
- Page 7 English Safety Information This Meter complies with the standards IEC61010: in pollution degree 2, category CAT III 1000V, CAT IV 600V over voltage and double insulation. Warning To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment under test, adhere to the following rules:.

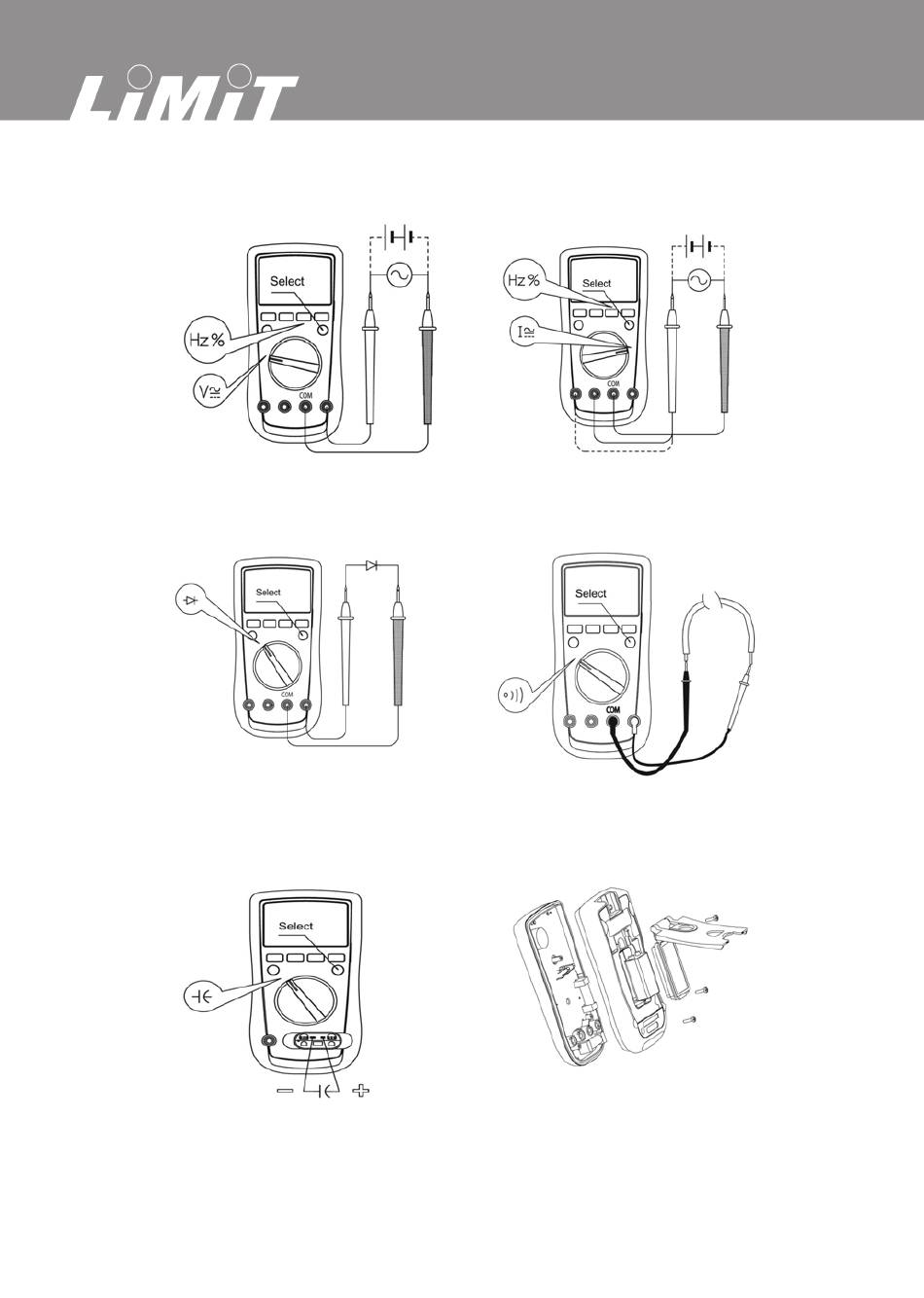

- Page 8 English • Change between DC and AC when V, µA, mA or A are selected. • Change between , Diodes test, Continuity test or Capacitance when rotary switch are selected for any of this functions. Voltage measurement DC and AC (See fig 1) 1.
- Page 9 English Note • The test leads can add 0.1 to 0.3 of error to resistance measurement. To obtain precision readings in low-resistance measurement, that is the range of 400 , short-circuit the input terminals beforehand, using the relative function. Push REL button for automatically subtract the value from the short-circuited test leads.
- Page 10 English Relative value Relative mode applies to all function except frequency/duty cycle. It subtracts a stored value from the present value. For instance, if the stored value is 20 V. Push REL button and the reading will be 0 V. If the voltage increase to 23 V the reading will be 3 V. Displays shows when relative function is selected.
