- Page 7 English ....................... 8 Svenska ....................19 Norsk ....................... 25 Dansk ...................... 29 Suomi ...................... 37 Deutsch ....................44 Netherlands ................... 52 Français ....................60 Italiano ..................... 68 Español....................76 Português ....................83 Ελληνικά ....................90 Polski ....................... 98 Eesti....................... 106 Lietuviškai ....................113 Latviski....................
- Page 8 English Limit 210 Contents Overview General specification Safety information Button function Voltage DC and AC Resistance Diode testing Continuity test Frequency Capacitance Battery...

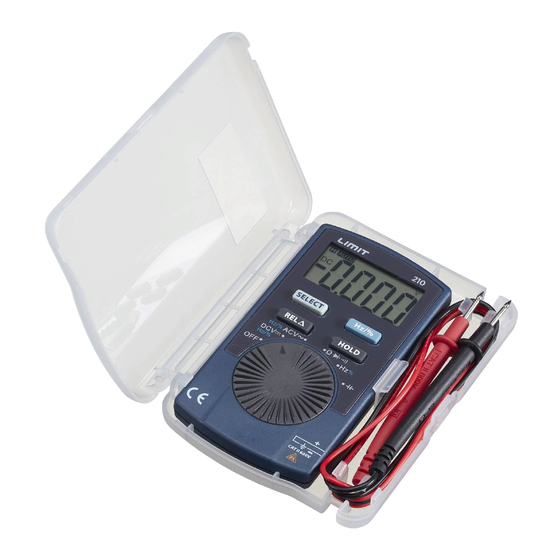

- Page 9 This Operating Manual covers information on safety and cautions. Please read the relevant information carefully and observe all the Warnings and Notes strictly. Limit 210 pocket sized 3 ¾ digits multimeter with steady operations, fashionable design and highly reliable hand-held measuring instrument.
- Page 10 English • Certification: CE Safety Information This Meter complies with the standards IEC61010. Isolation CAT II 600 V. Warning To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment under test, adhere to the following rules: •...
- Page 11 English • Do not use or store the Meter in an environment of high temperature; humidity, explosive, inflammable and strong magnetic fields. The performance of the Meter may deteriorate after dampened. • When using the test leads, keep your fingers behind the finger guards. •...

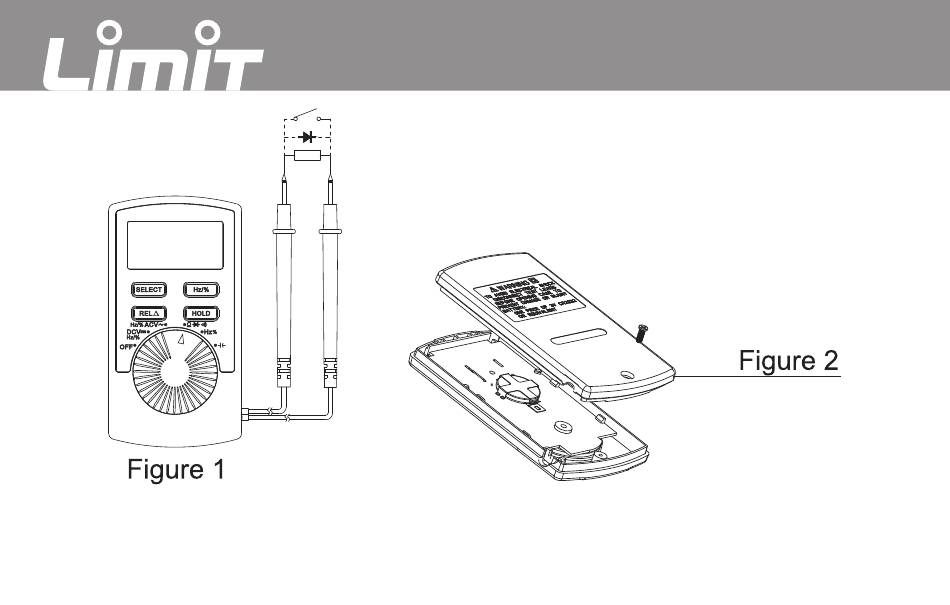

- Page 12 English Note. The meter will be at max DCV 400 mV or ACV 4 V when Hz/Duty mode is on. It is important to turn off and on again to resume to auto range mode when measuring higher voltage. Voltage measurement DC and AC (See fig 1) 1.
- Page 13 English Diode test (See fig 1) Use the diode test to check diodes, transistors, and other semiconductor devices. The diode test sends a current through the semiconductor junction, and then measures the voltage drop across the junction. A good silicon junction drops between 0.5V and 0.8V. 1.
- Page 14 English 3. Connect the test leads across with the object being measured. The measured value shows on the display. Capacitance (See fig 1) 1. Turn the rotary switch to ╫ position. 3. Push REL Δ button. 4. Connect the test leads across with the object being measured. The measured value shows on the display.
