Noise Canceling
Headphones
MDR-NC200D
©2011 Sony Corporation Printed in Malaysia
English
Noise Canceling Headphones
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To reduce the risk of electrical shock, do not open the
cabinet. Refer servicing to qualified personnel only.
The validity of the CE marking is restricted to only those countries
where it is legally enforced, mainly in the countries EEA (European
Economic Area).
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The following FCC statement applies only to the
version of this model manufactured for sale in the USA.
Other versions may not comply with FCC technical
regulations.
NOTE
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
–
Reorient or relocate the receiving antenna.
–
Increase the separation between the equipment and receiver.
–
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
–
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
Features
•
Digital noise canceling headphones with Sony’s unique DNC
Software Engine.
Creation of a high-precision canceling signal delivers outstanding
noise canceling performance.
•
AI (Artificial Intelligence) Noise Canceling function.
Select AI NC button for optimal noise canceling mode based on
intelligent analysis of the environmental ambient noise.
•
Digital Equalizer and full digital S-Master amplifier delivers ideal
frequency response and high-quality music reproduction.
•
Large 40 mm dynamic type driver units deliver a wide frequency
range and broad dynamic range.
•
Pressure relieving urethane cushion in the earpad.
The earpad structure provides comfort without stress even after
extended use.
•
Lightweight design creates extremely comfortable wearing fit.
•
Foldable, flat-storage design for easy portability.
•
Built-in monitor function to hear surrounding sound without taking
off the headphones.
•
Able to use as a regular headphones even when the POWER switch is
set to “OFF”.
•
Supplied plug adaptor for easy connectivity to stereo or dual jack for
in-flight music services.
4-283-466-11 (1)
Operating Instructions
Manual de instrucciones

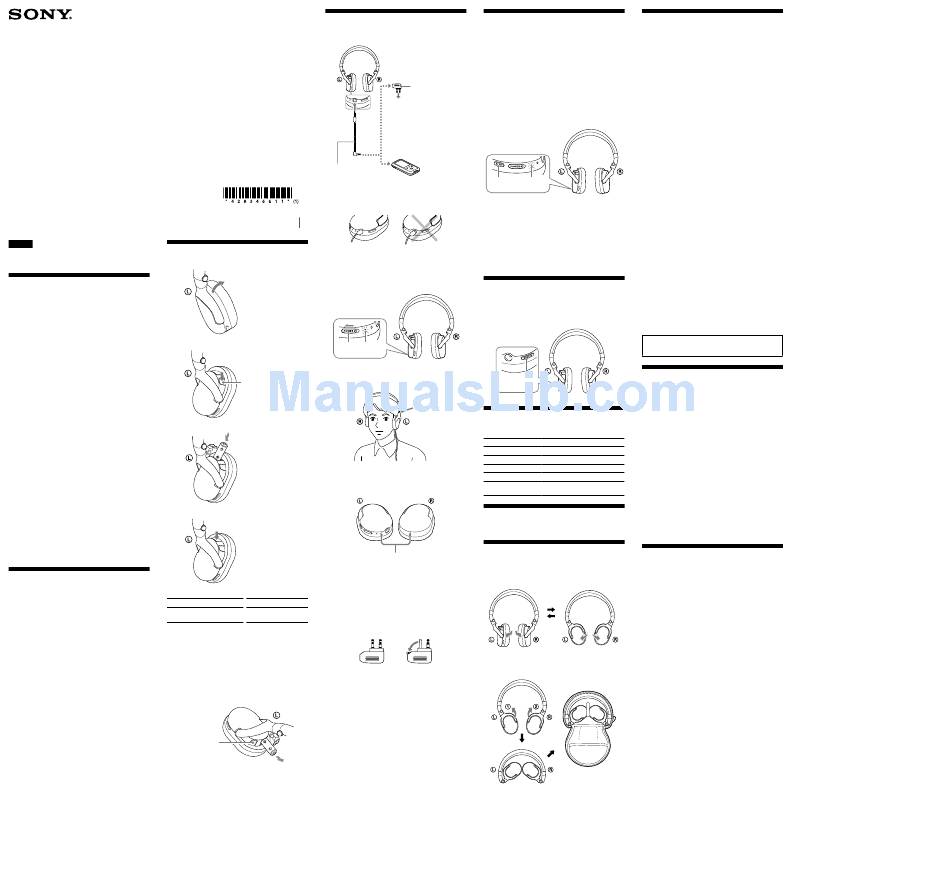

Installing a battery
1
Adjust the left housing as illustrated.
2
Push the PUSH OPEN button to open the battery lid.
PUSH OPEN
button
3
Insert one LR03 (size AAA) battery with end first.
4
Close the battery lid.
Battery life
Battery
Approx. hours*
1
Sony alkaline battery
22 hours*
2
LR03 SIZE AAA
1 kHz, 0.1 mW + 0.1 mW output
*
1
Time stated above may vary, depending on the temperature or conditions of
*
2
use.
Note
The supplied battery was included in the package during manufacturing (as a
convenience to the user), it is possible that the battery life may be depleted by the
time of purchase. The actual life of the supplied battery may be shorter than the
standard time described in this manual when using a fresh battery.
When the battery is low
•
Replace the battery with a new one when the POWER indicator blinks
or lights off. Push the PUSH OPEN button to open the battery lid and
remove the battery in the direction as illustrated.
PUSH OPEN button
•
You can use the headphones even without turning on the power. In
this case, the noise canceling function, Digital Equalizer and S-Master
are not active, and the headphones operate as passive headphones.
Listening to the music
1
Connect the headphones to the AV equipment.
When connecting to dual or
stereo mini jacks of in-flight music
services.
Plug adaptor (supplied)
To headphone jacks
on airplane seats
When connecting to the stereo
mini jack of a WALKMAN*, etc.
Connecting cord
(supplied)
* “WALKMAN” and “WALKMAN” logo are registered trademarks of Sony
Corporation.
Notes
•
When connecting the cord, insert the plug into the jack until the green
portion of the plug disappears.
•
To disconnect the cord, pull it out by the plug, not the cord, as the inner
conductors may break.
2
Turn on the power of the headphones.
The POWER indicator lights up in green. When power is
turned on, ambient noise is reduced, and you can listen to
music more clearly at a lower volume.
POWER
POWER
POWER
indicator
switch
3
Wear the headphones marked on your right ear and the
one marked ( has a tactile dot for ease of use.) on your
left ear.
Tactile dot
(on the left)
Notes
•
Adjust the earpads so that they cover your ears, otherwise noise canceling
will not function properly.
•
Do not cover the microphone of the headphones with your hands. The
noise canceling function may not work properly.
Microphone
•
After you turn on the power of the headphones, you may hear a slight
hiss. This is the operating sound of the noise canceling function, not a
malfunction.
•
Because the headphones are of a high density enclosure, forcing them
against your ears may result in eardrum damage. Avoid using the
headphones where they are liable to be struck by people or other objects,
such as a ball, etc. Pressing the headphones against your ears may produce
a diaphragm click sound. This is not a malfunction.
4
Turn on the power of the AV equipment.
Notes on using on the airplane
•
The supplied plug adaptor can be connected to the dual or stereo mini
jacks of in-flight music services.
dual jacks
stereo mini jacks
•
Do not use the headphones when use of electronic equipment is
prohibited or when use of personal headphones for in-flight music
services is prohibited.
Utilizing the AI Noise Canceling
AI Noise Canceling
AI Noise Canceling is a useful function that automatically selects one
of the noise canceling modes. This function provides the most effective
noise canceling mode by immediately analyzing ambient sound
components when the AI NC button is pressed.
Press the AI NC button.
When you press the AI NC button and the POWER switch is set to
“ON”, beep sounds come from the headphones to inform you that
the unit has started analyzing ambient sound components (approx. 3
seconds).
During analysis, sound reproduction from the unit is stopped and the
POWER indicator blinks.
When analysis is completed, the most effective noise canceling mode is
set automatically, and sound reproduction from the headphones starts.
POWER
AI NC
indicator
button
Noise canceling mode types
NC Mode A: Noise mainly in an airplane is effectively reduced.
NC Mode B: Noise mainly in a bus or a train is effectively reduced.
NC Mode C: Noise mainly found in an office environment (PC, copier,
air ventilation, etc.) is effectively reduced.
Tips
•
When the power of the headphones is turned on, NC Mode A is set. (See
“Noise canceling mode types” for details about NC Mode A.)
•
Press the AI NC button again to reset the noise canceling mode if ambient
noise has changed, such as when you move outdoors from a room.
Hearing environment sound
for safety
Press the MONITOR button while the POWER switch is set to “ON”,
playback silences, and you can hear the surrounding environment.
To cancel this function, press the MONITOR button again.
MONITOR
button
Beep sound and indicator
status
Status/Function
Beep sound
Indicator
Power off
No beep
Lights off
Power on
Beep once
Lights on
AI NC
Beep twice
Blinks twice
MONITOR
Beep once
Blinks slowly
Low battery
Long beep
Blinks quickly
(2 seconds)
After use
Turn off the power of the headphones and the AV equipment.
Folding the headphones
Flat storage
Rotate the housings to make them flat for easy storage in the seat pocket.
Restore to their usual position before using.
Putting the headphones in the carrying case
Fold the headphones as illustrated before putting them in the carrying case
(supplied).
Precautions
The headphones contain a noise canceling circuit.
What is noise canceling?
The noise canceling circuit actually senses outside noise with built-in
microphones and sends an equal-but-opposite canceling signal to the
headphones.
•
The noise canceling effect may not be pronounced in a very quiet
environment, or some noise may be heard.
•
The noise canceling effect may vary depending on how you wear the
headphones.
•
The noise canceling function works for noise in the low frequency
band primarily. Although noise is reduced, it is not canceled
completely.
•
When you use the headphones in a train or a car, noise may occur
depending on street conditions.
•
Mobile phones may cause interference and noise. Should this occur,
locate the headphones further away from the mobile phone.
Notes on usage
•
Clean the headphones with a soft dry cloth.
•
Do not leave the plug dirty otherwise the sound may be distorted.
•
Be sure to consult a Sony dealer when the earpads become dirty or
damaged, or when the headphones require repair work.
•
Do not leave the stereo headphones in a location subject to direct
sunlight, heat or moisture.
•
Do not subject the headphones to excessive shock.
•
Handle the driver units carefully.
•
If you feel drowsy or sick while using these headphones, stop use
immediately.
Notes on headphones
Preventing hearing damage
Avoid using headphones at high volume. Hearing experts advise
against continuous, loud and extended play. If you experience a ringing
in your ears, reduce the volume or discontinue use.
Do not use headphones while driving and cycling, etc.
As headphones reduce outside sounds, they may cause a traffic
accident. Also, avoid listening with your headphones in situations
where hearing must not be impaired, for example, a railroad crossing, a
construction site, etc.
Note on static electricity
In particularly dry air conditions, noise or sound skipping may occur,
or mild tingling may be felt on your ears. This is a result of static
electricity accumulated in the body, and not a malfunction of the
headphones.
The effect can be minimized by wearing clothes made from natural
materials.
If you have any questions or problems concerning the system that
are not covered in this manual, please consult the nearest Sony
dealer.
Troubleshooting
No sound
•
Replace the battery. You can use the headphones even without turning
on the power. In this case, the noise canceling function, Digital
Equalizer and S-Master are not active, and the headphones operate as
passive headphones.
•
Check the connection of the headphones and the AV equipment.
•
Check that the connected AV equipment is turned on.
•
Turn up the volume of the connected AV equipment.
The noise canceling effect is not sufficient
•
The noise canceling function is effective in low frequency ranges such
as airplanes, trains, or offices (near air-conditioning, etc.) and is not as
effective for higher frequencies, such as human voices.
•
Turn on the headphones.
Distorted sound
•
Turn down the volume of the connected AV equipment.
Power does not turn on
•
Check if the battery has expired (the POWER indicator lights off).
Replace the battery with a new one.
No operation works
•
Set the POWER switch of the headphones to “OFF”, confirm the
connections, and then set the POWER switch back to “ON”.
Specifications
General
Type
Dynamic, closed
Driver units
40 mm, dome type (CCAW adopted)
Power handling capacity
50 mW
Impedance
68
at 1 kHz
(when the power is on)
35
at 1 kHz
(when the power is off)
Sensitivity
103 dB/mW (when the power is on)
102 dB/mW (when the power is off)
Frequency response
8 Hz – 23,000 Hz
Total Noise Suppression Ratio*
1
Approx. 17.5 dB*
2
Power source
DC 1.5 V, 1 LR03 (size AAA) battery
Mass
Approx. 180 g (6.4 oz)
Included items
Headphones (1)
Plug adaptor for in-flight use*
(single/dual) (1)
3
Connecting cord (1.5 m, gold plated L type stereo mini plug) (1)
Carrying case (1)
Sony LR03 (size AAA) battery (1)
Operating Instructions (1)
Warranty card (1)
Under the Sony measurement standard.
*
1
Equivalent to approx. 98.2% reduction of energy of sound compared with not
*
2
wearing headphones.
May not be compatible with some in-flight music services.
*
3
Design and specifications are subject to change without notice.
Advertisement
Related Manuals for Sony MDR-NC200D
Summary of Contents for Sony MDR-NC200D
- Page 1 Close the battery lid. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Features • Digital noise canceling headphones with Sony’s unique DNC Battery life Software Engine. Creation of a high-precision canceling signal delivers outstanding Battery Approx. hours* noise canceling performance. Sony alkaline battery 22 hours* • AI (Artificial Intelligence) Noise Canceling function. LR03 SIZE AAA Select AI NC button for optimal noise canceling mode based on intelligent analysis of the environmental ambient noise.
- Page 2 Características Duración de la batería • Auriculares de supresión de ruido digital con el exclusivo motor de Batería Hora aprox.* software DNC de Sony. Batería alcalina Sony 22 hora* La creación de una señal de supresión de alta precisión proporciona LR03 TAMAÑO AAA un excelente rendimiento de supresión de ruido. • Función de supresión de ruido de IA (Inteligencia Artificial).
