TBS TANGO 2 Radio
Compact all-in-one Remote Control Radio with TBS CROSSFIRE System
The TBS TANGO 2 remote control is an all-in-one system made for R/C enthusiasts. It features a built-in

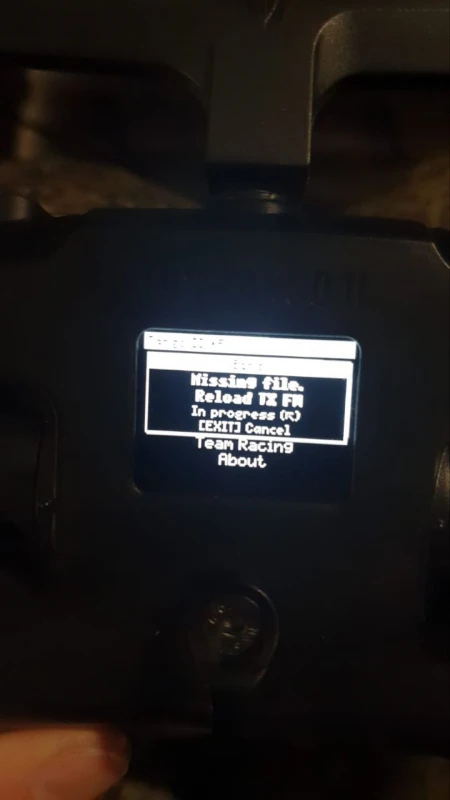

TBS CROSSFIRE Micro TX radio module. Input controls are provided by full-size hall gimbals. A bright
Display shows the radio status and telemetry.
Key features
•
Compact and ergonomic All-in-one (AIO) radio
•
Integrated TBS CROSSFIRE Micro TX - up to 500/250mW (rev3/ revision1+2)
•
Runs TBS FreedomTX, a temporary OpenTX fork
•
Industry's lowest latency - only achievable with an AIO solution!
•
Travel and beginner friendly
•
Full-size digital hall gimbals
•
Unconventional low-profile switches for transportability, reliability, and durability
•
Foldable antenna - also doubles as a kickstand
•
Tbs Cloud ready (future proof)
•
Digital trims (compatible with traditional R/C aircraft)
•
Solid build with quality components
•
Multi-module capable (rev2 + 3)
