Installation and operating
manual

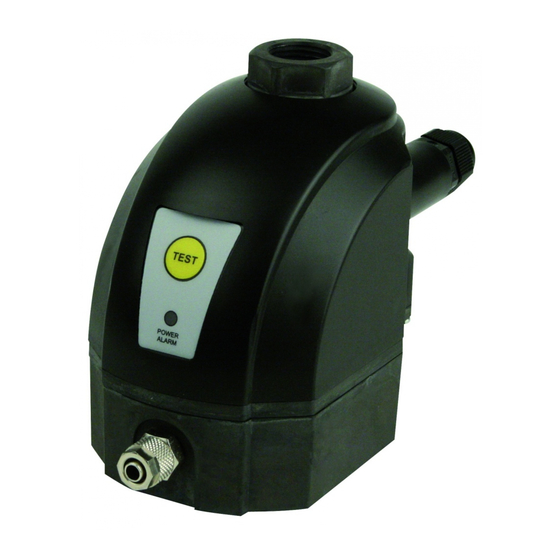

ECD 15B / ECD 40B / ECD 90B / ECD 150B
Please read the following instructions carefully before installing electronic drain unit into
service. Trouble free and safe operating of the unit can only be guaranteed if
recommendations and conditions stated in this manual are respected.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omega ECD 15B
Summary of Contents for Omega ECD 15B
- Page 1 Installation and operating manual ECD 15B / ECD 40B / ECD 90B / ECD 150B Please read the following instructions carefully before installing electronic drain unit into service. Trouble free and safe operating of the unit can only be guaranteed if...
-
Page 2: Technical Data
ECD 15B / 40B / 90B / 150B - Installation and operating manual Technical data Type ECD 15B ECD 40B ECD 90B ECD 150B 115 VAC 115 V +/-10% Voltage 230 VAC 230 V +/-10% 115 VAC 24 VA Power... -
Page 3: Safety Instructions
ECD 15B / 40B / 90B / 150B - Installation and operating manual Safety instructions Depressurize the system before carrying out any work on the piping. Installation and maintenance work may only be carried out when the device is ... - Page 4 ECD 15B / 40B / 90B / 150B - Installation and operating manual Operating Condensate flows through inlet connection (1) and accumulates in the reservoir (2). Sensor (3) is measuring condensate level. When reservoir (2) is detected full sensor (3) sends signal to electronic board.
-
Page 5: Installation
ECD 15B / 40B / 90B / 150B - Installation and operating manual Installation Inlet pipe (1) size at least ½” (inner diameter > 13mm). Collecting condensate line (3) size at least ¾ “. At least 1% inlet pipe slope recommended. - Page 6 ECD 15B / 40B / 90B / 150B - Installation and operating manual Trapped air prevents the condensate being purged from drain (5). During installation ensure that no water pockets are formed in the piping (6). When drainage is to take place directly from a pipeline it is recommended to arrange the...
- Page 7 ECD 15B / 40B / 90B / 150B - Installation and operating manual In case there are problems with inflow, it is necessary to install a venting line (12). In this case back connection is used as inlet and upper connection is used as air ventilation. Venting line must never be installed as it is on pictures 9, 10 and 11.
- Page 8 ECD 15B / 40B / 90B / 150B - Installation and operating manual Functions LED indicator / TEST button Power on At power on there are few short green flashes. These tell us ECD type. 1. One flash: ECD 15B 2.
-
Page 9: Operating Modes
ECD 15B / 40B / 90B / 150B - Installation and operating manual Operating modes NORMAL When sensor detects condensate the valve opens up to one second to discharge. The exact period depends on type of a drain. Minimal time between two discharges is 5 seconds. -
Page 10: Maintenance
ECD 15B / 40B / 90B / 150B - Installation and operating manual Maintenance Service: It is recommended to clean/change internal strainer and clean reservoir at least once a year. Sealing elements are subject to wear, which depends on various operating parameters such as pressure, temperature, dirt content, etc. - Page 11 ECD 15B / 40B / 90B / 150B - Installation and operating manual Components Poz. Part Housing Sensor husing O-ring 15x1,5 Spacer 5x5 Washer M3 DIN6798A Screw M3x10 DIN912 Damper Plunger sealing Spring base Spring Plunger Valve housing O-ring 5,8x1,5...
-
Page 12: Troubleshooting
ECD 15B / 40B / 90B / 150B - Installation and operating manual Trouble shooting Problem Possible cause Solution Faulty or no power supply Check power supply No LED signal PCB defective Replace PCB Pressing TEST...
