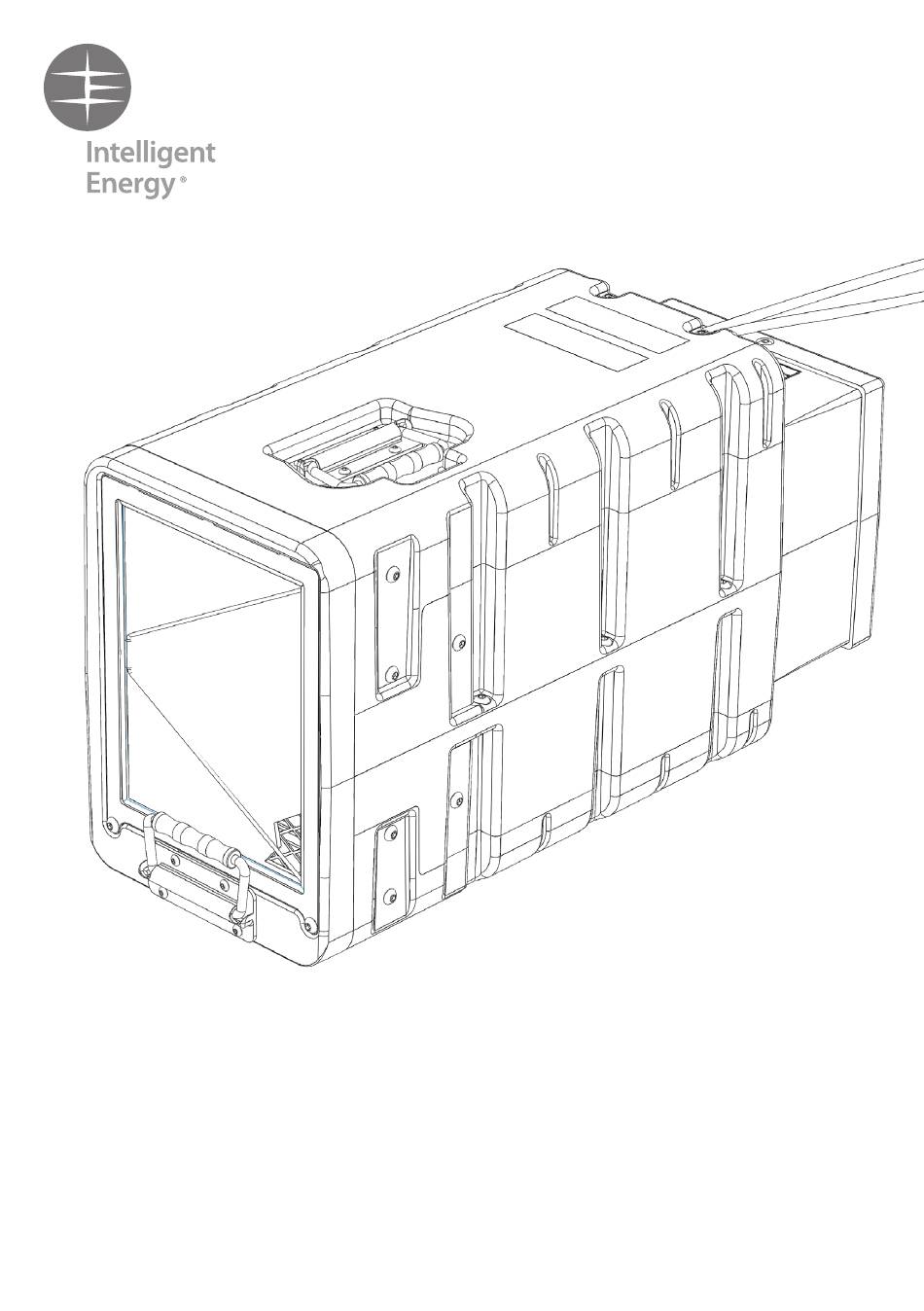

- Page 1 FCM-801 User Manual Read before installation and use.
-
Page 2: Table Of Contents
Procedure to reset the fault Warning 10 Installation and set up 2 Product specification 10.1 Label information 10.2 Mechanical mounting points 3 Parts of the FCM-801 10.3 Mechanical protection and covers 10.4 Vibration and shock loads 4 Product interface 10.5 Air supply and ventilation 10.6... -
Page 3: Safety And Warnings
Intelligent Energy Limited. Intelligent Energy has made every effort to ensure that this User Manual is accurate and disclaims liability for any inaccuracies or omissions that may... -
Page 4: Product Specification
Product specification Performance Rated net power 1.2kW @ 48V or 0.96kW @ 24V Output voltage regulation to ETS 300-132-2 Rated current 25A @ 48V or 40A @ 24V Emissions Water vapour in warm exhaust air Fuel Fuel type Hydrogen gas Fuel pressure 500mbar.g –... -
Page 5: Parts Of The Fcm-801
Parts of the FCM-801 The major components of the FCM-801 are: Power cables Carry handle Air filter Exhaust air Rear view Inlet air Communication Port Grab handle Power cables Air filter fixings Hydrogen inlet... -
Page 6: Product Interface
Product Interface Interface specification Performance Function Specification Hydrogen inlet Fuel supply G1/8 parallel thread, with 500mbar.g – 700mbar.g face seal Average flow rate 16 slpm (peak flow 80 slpm for <1sec during purge) Air inlet Ambient air filtration and 170 × 240mm duct 0 –... -
Page 7: Fcm-801 Overview
FCM-801 overview The FCM-801 provides regulated DC at nominal 24V or 48V output (configurable by the user at point of order). The FCM-801 will hold the DC output at the nominal voltage while connected to an external battery or power supply so that the system will act as a hybrid system. -
Page 8: Connections
Do NOT disconnect the main power leads with the Enable signal present. Warning: Do NOT use the FCM-801 if complete installation does not have a negative earth. When the FCM-801 is running the power output will stay electrically live if the power cables are disconnected. -
Page 9: Air Supply
· Ammonia Hydrogen fuel The FCM-801 has a G1/8 parallel thread connection. The hydrogen supply needs to be regulated to 600mbar.g (±100mbar.g), and will see a maximum flow of 16 slpm. When installing and operating hydrogen systems, hydrogen general safety guidance should be considered: ·... -
Page 10: Communication Connection
Connections Communication connection To operate the FCM-801, communications need to be provided through the D type connector. The pins of the connector have the following functions: Pin No. Description Function Enable / Reset (-ve) Negative for Enable / Reset line... -
Page 11: Can Connection
A continuous FCM-801 status signal will be present whilst the fuel cell is running (with no fault present). FCM Status is an open collector output and 0V signifies running. If the Run signal is present and there is no FCM-801 status signal present then the FCM-801 is in Standby or Fault. -
Page 12: Fcm-801 Software States
Fault state Enable / Reset Off Please note the following points: 1 The small circle in each state box indicates the condition of the FCM-801 status pin. This is low (black: ) in all states apart from fuel cell running... -
Page 13: Operation Of Fcm-801
In the hybrid system, the battery is used to provide power to the FCM-801 whilst the fuel cell system starts. It supports the load during the fuel cell performance optimisation cycle process and while the system is in the standby mode. -
Page 14: Fault State
· Products will be most efficient if operated between 10°C – 20°C. Faults Procedure to reset the fault If the FCM-801 has a fault it will disconnect the internal DC-DC converter and stop providing power. To reset a fault follow the procedure below: Detailed Instruction... -
Page 15: Installation And Set Up
Installation and set up 10.1 Label information The FCM-801 is labelled as shown below. It should be visible or duplicated on the full installation outer case. Unit serial number Name plate information DC power hazard warning Flammable gas hazard warning 10.2... -
Page 16: Mechanical Protection And Covers
The FCM-801 should be mounted with protection from weather and the elements. The FCM-801 has been designed to comply with IP20 rating and it must be mounted within an enclosure which is at least IP23 if used outside. If installed inside, the installer must ensure there is sufficient ventilation, see Section 10.5 –... -
Page 17: Air Supply And Ventilation
Do not use if the air has smoke or corrosive gas present. Warning: Hot air that is generated by other equipment within 0.6m of the inlet of the FCM-801 is of concern and should be limited to 5% of expected operating power of the FCM-801 in order to limit the ingestion of hot air. -
Page 18: Hydrogen Connection
0.5 Bar.g to 0.7 Bar.g. The FCM-801 will consume less than 16 slpm at rated power. It must be noted that the flow will spike high during hydrogen purges which, if poorly regulated, can lead to a pulse of low pressure. It is important that the fuel cell has the correct grade of hydrogen (see Section 6.2 –... -
Page 19: Troubleshooting Guide
Troubleshooting guide If you have any questions regarding your FCM-801 please email Intelligent Energy at product.support@intelligent-energy.com Fault Cause Action No command to start Verify that the module is in Enable and Run modes Hydrogen leak See 11.1 Check for fuel leak... -
Page 20: Fuel Check Procedure
Check that the regulator Increase pressure to pressure is >500mbar.g 600mbar ±100mbar.g Check that the regulator Does restarting the FCM-801 clear the over pressure? pressure is <700mBar Investigate if the Reduce pressure to Switch on the FCM-801 regulator is letting fuel 600mbar ±100mBar... -
Page 21: Electrical System Check Procedure
Does design have an external power supply? Does the total battery Charge the bank have sufficient battery FCM-801 is designed to operate voltage to meet the bank as a hybrid system. Contact IE specification? Product Support Team to discuss. -
Page 22: Stack Temperature Check Procedure
7 The dirty filter can be pulled out. 8 Discard dirty filter. 9 Place clean filter in front of FCM-801 and refit frame and screws. Warning: Do not touch or create a short in the fuel cell stack during this procedure as it may be live (fuel cell stack will have voltage present even after it has been switched off). -
Page 23: Maintenance Procedures
For all other maintenance tasks, please contact Intelligent Energy. 12.2 Contact Intelligent Energy Product Support In the event of a fault with the FCM-801, please contact the Intelligent Energy Product Support Team. Either contact your local representative or email product.support@intelligent-energy.com... -
Page 24: Control Parameters And Standard Factory Setting
Control parameters and standard factory setting Parameter Unit Range Factory Setting Factory Setting (48V) (24V) Target Output Voltage 15.0 to 56.0 Delayed Start Under-Voltage 0.0 to 60.0 Delayed Start Qualification Time 0 to 14400 Immediate Start Under-Voltage 0.0 to 60.0 Delayed Stop Over-Voltage 0.0 to 60.0 Delayed Stop OV Qualification Time... - Page 25 Control parameters and standard factory setting The available power that can be delivered by the FCM Power Range FCM, for different target voltages. † FCM Current Range The available current for each FCM. † System Index (-) This is to allow multiple systems to be connected together via CAN. The voltage that the FCM will try to maintain in normal operation.
-
Page 26: Spare Parts, Storage And Disposal
For spare parts contact IE Product Support Team at product.support@intelligent-energy.com Spare part list · Filter intake air: 009016 · Filter retaining plate: 009015 · Filter retaining screws: 000969 14.4 When the FCM-801 reaches end of life, please contact Intelligent Energy for support with reconditioning or disposal at product.support@intelligent-energy.com... -
Page 27: Eu Declaration Of Conformity
2014/30/EU The Electromagnetic Compatibility Directive Intelligent Energy Limited hereby declares that: · FCM-801 - 1.2kW Standalone Stationary Power Fuel Cell Module · Part Number: 10004359 Is in conformity with the applicable requirements of the Directives set out above and the following standards documents: ·... - Page 28 Energy’s business and its technology. This publication and its contents do not include all details which may be relevant to particular circumstances and should not be regarded as being a complete source of Information. To the fullest extent permitted by law, Intelligent Energy offers no warranty as to the accuracy of the content of this publication, shall not be liable for the content of this publication and no element of this publication shall form the basis of any contractual relationship with a third party.
