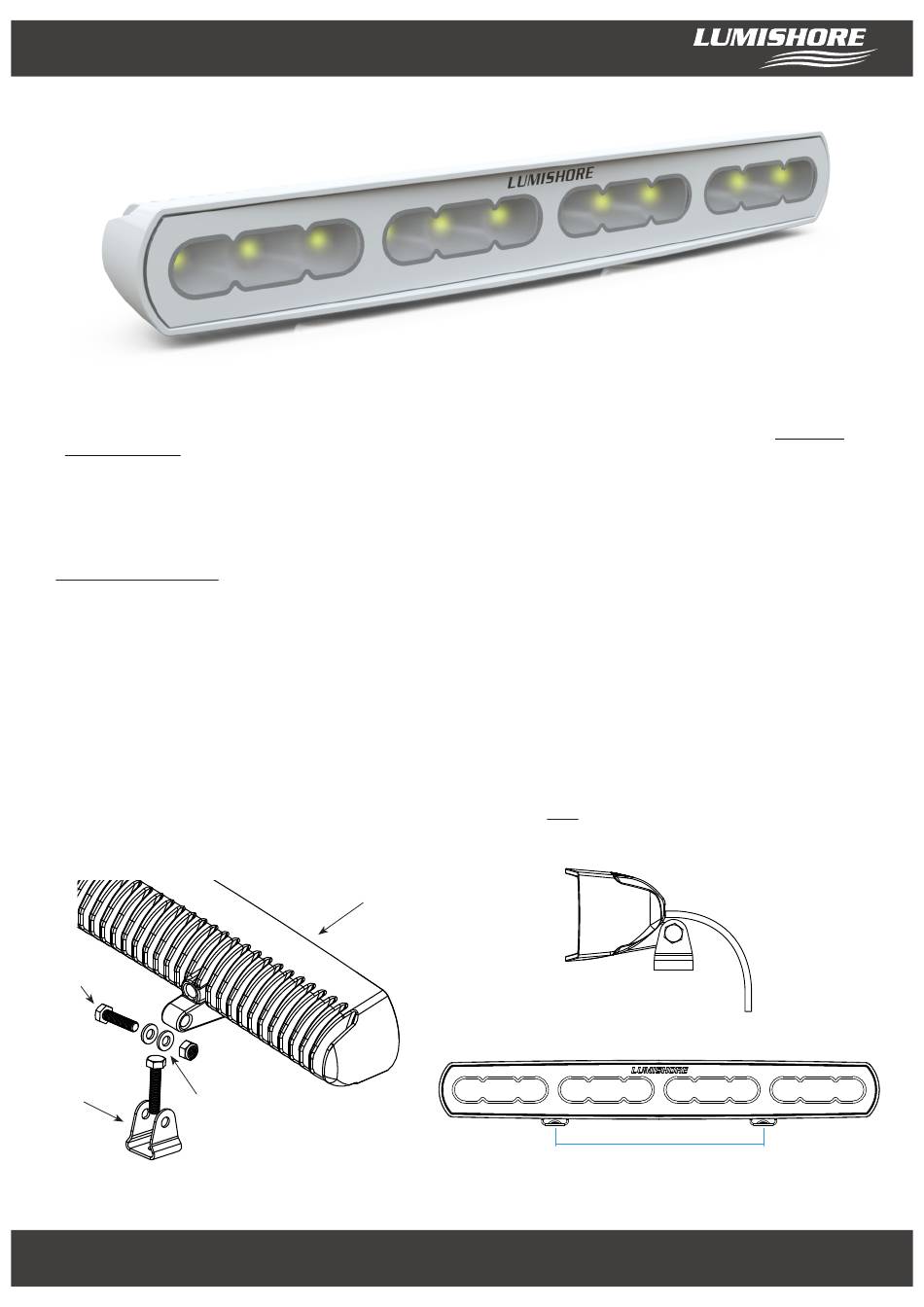

lumishore Flood Light 18 Installation Manual

Flood Light 18" Installation Manual
Please read the following pages before attempting installation to ensure complete understanding of
Lumishore Flood Light 18". This product should only be installed, inspected, and maintained by a qualified
electrician only, in accordance with all applicable electrical codes. Be certain electrical power is OFF before
and during installation and maintenance.
Colour Output
Single Colour 18"

Installation Instructions:

1. Select mounting location. Mounting location should be flat and durable.
2. Using a suitable bit, drill the bracket holes. Bracket has a 6.5mm hole suitable for an M6 bolt (supplied), a louvre feature
has been added to lock onto the bolt head and to avoid spinning when tightening.
3. Drill a 7mm (0.275in) hole for the cable. The cable should always be in a 'fixed' position, no movement or rotation.
The cable entry should be made watertight, the use of a cable gland is recommended.
4. Fix brackets in place using supplied M6 bolts and nylon insert nuts. Apply the appropriate torque based on fixings used
and mounting surface.
5. Mount the flood light to brackets using the supplied M6 bolt, washers and nylon insert nut. Ensure nylon washers are
placed on the inside of the stainless steel bracket. Tighten to a torque of 5Nm, DO NOT overtighten.
M6 Fasteners
Light Bracket
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | +44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
Voltage Amps (max)
10-31VDC 9.2A
Flood Light
Please note use of
Nylon washers
186mm (7.32in)
186mm (7.32in)
45-0186-RevB
