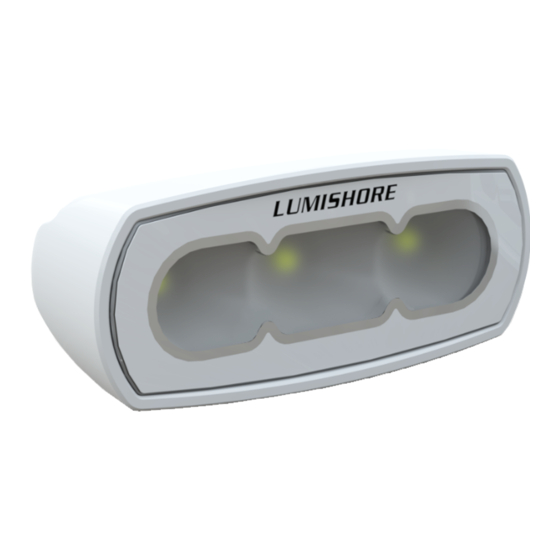

Flood Light 4" Installation Manual
Please read the following pages before attempting installation to ensure complete understanding of
Lumishore Flood Light 4". This product should only be installed, inspected, and maintained by a quali-
fied electrician only, in accordance with all applicable electrical codes. Be certain electrical power is OFF
before and during installation and maintenance.
Colour Output
Single Colour 4"

Installation Instructions:

1. Select mounting location. Mounting location should be flat and durable.
2. Using a suitable bit, drill the bracket hole. Bracket has a 6.5mm hole suitable for an M6 bolt (supplied), a louvre feature has
been added to lock onto the bolt head and to avoid spinning when tightening.
3. Drill a 6mm (0.236in) hole for the cable. The cable should always be in a 'fixed' position, no movement or rotation.
The cable entry should be made watertight, the use of a cable gland is recommended.
4. Fix bracket in place using supplied M6 bolt and nylon insert nut. Apply the appropriate torque based on fixings used and
mounting surface.
5. Mount the flood light to bracket using the supplied M6 bolt, washers and nylon insert nut. Ensure nylon washers are
placed on the inside of the stainless steel bracket. Tighten to a torque of 5Nm, DO NOT overtighten.
M6 Fasteners
Light Bracket
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | +44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
Voltage Amps (max)
10-31VDC 1.7A
Please note use of Nylon
washers
Flood Light
45-0185-RevB
www.Lumishore.com
