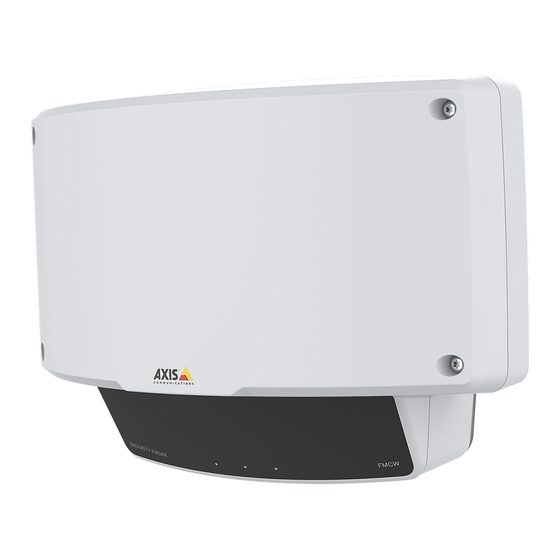

AXIS D2110-VE Security Radar
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2110-VE and is the answer not in the manual?

Questions and answers

Related Manuals for Axis D2110-VE

Summary of Contents for Axis D2110-VE

  • Page 1 AXIS D2110-VE Security Radar Installation Guide...
  • Page 2 Operation is subject to the following two conditions: Every care has been taken in the preparation of this document. Please inform your local Axis office of any This device may not cause harmful interference, and inaccuracies or omissions. Axis Communications AB cannot...
  • Page 3 This equipment may generate or use radio frequency energy. The user could lose the authority to operate this equipment Hierbij verklaart Axis Communications AB dat het toestel in if an unauthorized change or modification is made. overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EG.
  • Page 4 • find answers to resolved problems in the FAQ database, search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff •...

  • Page 5: Package Contents

    AXIS D2110-VE Security Radar Package contents • AXIS D2110-VE Security Radar • Mount bracket • Pipe adapter (2x) • Screw T30 (4x) for use with pole mount. • Torx screwdriver TR20 • Mounting tool for RJ45 • Cable shoe •...

  • Page 6: Product Overview

    AXIS D2110-VE Security Radar Product overview Control button Network LED Status LED Power LED PoE out LED microSD card slot DC power connector I/O connector Relay connector 10 Grounding screw 11 Network connector (PoE in) 12 Network connector (PoE out)

  • Page 7: Mounting Height

    AXIS D2110-VE Security Radar Where to install the product The detector is intended for monitoring open areas. Any solid object (such as a tree or a bush) in the coverage area will create a blind spot (radar shadow) behind it.
  • Page 8 AXIS D2110-VE Security Radar The following table shows the detection range at different mounting heights when detecting a 1.8 m (6 ft) tall person walking. Mounting height 3.5 m (11 ft) 4 m (13 ft) 4.5 m (15 5 m (16 ft) Near detection limit 4.5 m (15 ft)

  • Page 9: How To Install The Product

    AXIS D2110-VE Security Radar How to install the product 1. Use the drill template and drill holes in the wall. 2. Fasten the mounting bracket to the wall. 3. Route the network cable through the mounting bracket. Leave approximately 30 cm (12 in) of cable for connecting the detector.
  • Page 10 AXIS D2110-VE Security Radar Hook, bracket side Hook, detector side Screw (2x) 8. Attach the detector to the mounting bracket with the hooks and tighten the screws with 1 N m (0.7 lb ft) torque. Network PTZ camera...
  • Page 11 AXIS D2110-VE Security Radar Power Ground/Relay 9. Remove the left cable gasket and pull the tab to open a hole for the network cable. CAUTION Risk of water leaks. • Only open holes in cable gaskets that are used. • If a cable gasket is torn, replace it with a new cable gasket.

  • Page 12: Find The Device On The Network

    21. Configure the detector. See the User Manual at axis.com/products/axis-d2110-ve/support-and-documentation. Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 13 Edge Safari ® Windows recommended ® OS X recommended Other operating systems To find out more about how to use the device, see the User Manual available at axis.com. If you need more information about recommended browsers, go to axis.com/browser-support.

  • Page 14: Reset To Factory Default Settings

    AXIS D2110-VE Security Radar Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values. To reset the product to the factory default settings: 1.

  • Page 15: Further Information

    To check if there is updated firmware available for your device, see axis.com/support • For useful online trainings and webinars, see axis.com/academy Optional accessories For a complete list of available accessories for this product, go to the product’s page on axis.com and select Software & Accessories.

  • Page 16: Specifications

    AXIS D2110-VE Security Radar Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED Indicators Status LED Indication Green Steady green for normal operation. Amber Steady during startup. Flashes when restoring settings.

  • Page 17: Network Connector

    AXIS D2110-VE Security Radar The control button is used for: • Resetting the product to factory default settings. See page 14. Connectors Network connector RJ45 Ethernet connector with Power over Ethernet Plus (PoE+). Network connector (PoE out) Use this connector to supply power to a camera.
  • Page 18 AXIS D2110-VE Security Radar 3– Configurable Digital input – Connect to pin 1 to activate, or 0 to max 30 V DC (Input or leave floating (unconnected) to deactivate. Output) 0 to max 30 V DC, Digital output – Internally connected to pin 1 (DC...
  • Page 19 AXIS D2110-VE Security Radar Relay connector CAUTION Use single core wires for the relay connector. Function Specifications Type Normally open Rating 30 V DC/5 A 125 V AC/10 A 250 V AC/5 A Isolation from other circuitry 2.5 kV...

  • Page 21: Safety Information

    AXIS D2110-VE Security Radar Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 22: Safety Instructions

    Axis or a third party. Axis recommends using Axis power source equipment compatible with your product. • Use only spare parts provided by or recommended by Axis. • Do not attempt to repair the product yourself. Contact Axis support or your Axis reseller for service matters. Transportation...
  • Page 23 AXIS D2110-VE Security Radar Battery Lithium coin cell 3.0 V batteries contain 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), CAS no. 110-71-4. WARNING • Risk of explosion if the battery is incorrectly replaced. • The battery should be replaced with an identical battery only.
  • Page 24 Installation Guide Ver. M1.14 AXIS D2110-VE Security Radar Date: October 2019 © Axis Communications AB, 2018 - 2019 Part No. 1922502...
