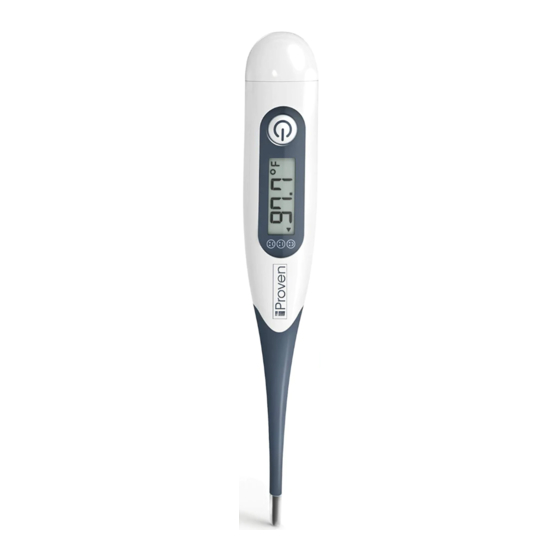

Proven DTR-1221BLU User Manual

Digital Thermometer
Model: DTR-1221BLU, DTR-1221BG,
DTR-1221P and DTR-1221BGW, DTR-1221A
Thermometric
LCD
sensor
Thermometer tip
This thermometer comes in four color variations
Congratulations on your purchase of this product.
Please read the instructions carefully before using
the thermometer for the first time and keep these
instructions in a safe place. This product is intended for
measurement of human body temperature.
Operating Instructions
1. Please disinfect the probe before use.
2. Press the button to activate the thermometer.
• A short beep will sound and the thermometer runs a
check showing all the digital segments on the LCD.
• After the check, the last measurement result is
shown for 2 seconds.
• As soon as - -.- - appears in the LCD the thermome-
ter is ready.
3. Put the thermometer sensor in the desired
measurement position (oral or rectal).
4. Wait for the beep to sound and the ºC or ºF icon to
stop flashing. The measurement is now completed.
5. Read the result from the display.
This is a maximum thermometer and the displayed
temperature can slightly increase if you leave the
thermometer in the measurement position after the
beeps. Please follow the instructions described in the
"Methods of measuring temperature" section.
Fever alarm
If the detected body temperature exceeds
100.0ºF/37.8ºC the thermometer will sound an alarm:
"bi-bi-bi---bi-bi-bi---. " The alarm indicates a fever may
be approaching.
Fever indication
Over 100.0ºF/37.8ºC; elevated temperature —
fever may be approaching!
99.1-99.9ºF/37.3-37.7ºC; slightly elevated
temperature
<99.0ºF/<37.2ºC; normal temperature
Auto-off function
When the measurement is completed, switch the
thermometer off by pressing the ON/OFF button.
If not switched off, the thermometer will switch off
automatically after 10 minutes.
Memory function
When the thermometer is switched on, the last
Battery
ON/OFF
compartment
button
Fever indicator
measurement will be shown for 2 seconds. Press the
button again to turn the thermometer off. When the
thermometer will remain turned on, the result will be
overwritten by the new measurement.
Methods of measuring temperature
It is important to remember that the accuracy of
the body temperature reading depends on the
measurement position. When keeping track of the
results, the measurement position must always be
specified in order to ensure that a correct temperature
reading is recorded.
Rectal Measurement
From a medical point of view, this is the most accurate
method because the temperature at this measurement
position is closest to the core body temperature. The
thermometer tip is inserted carefully into the rectum
for a maximum of 2 cm (1"). The usual measuring time
is approximately 8 to 15 seconds.
Oral Measurement
There are different heat zones in the mouth. As a
general rule, the oral temperature is 0.3-0.8˚C
(0.5-1.4ºF) lower than the rectal temperature. To
ensure that the reading is as accurate as possible,
place the thermometer tip to the left or right of the
root of the tongue. The thermometer tip should
remain in constant contact with the tissue under the
tongue during the reading. The mouth should remain
closed during the reading. The usual measuring time is
approximately 8 to 15 seconds.
Important! As eating, drinking and breathing through
the mouth influence the temperature of the mouth
tissue, we highly recommend not to eat, drink or
breathe through the mouth within 15 minutes before
taking an oral measurement.
Axillary Measurement is NOT recommended
It is NOT recommended to use this device for taking
axillary (under arm) temperature measurements.
This quick reading thermometer will not accurately
measure the axillary temperature.
Switching the temperature scale (˚C or ˚F)
First make sure the thermometer is switched off. If it is
still switched on, press the button once to switch off.
When the thermometer is off, press and hold the
button for 3 seconds to switch the measuring scale.
The new scale (˚C or ˚F) is now and saved.
Cleaning and disinfection
The best way to clean the thermometer tip is by
applying a disinfectant (e.g. 70% ethyl alcohol) with
a damp cloth. This waterproof thermometer can be
immersed in lukewarm water for thorough cleaning
and disinfection.
Safety precautions
• Do not expose the thermometer to hot water over
50ºC (122ºF).
• Do not expose the thermometer to high
temperatures or direct sunlight.
