Related Manuals for Proven ET-828-BT
Summary of Contents for Proven ET-828-BT

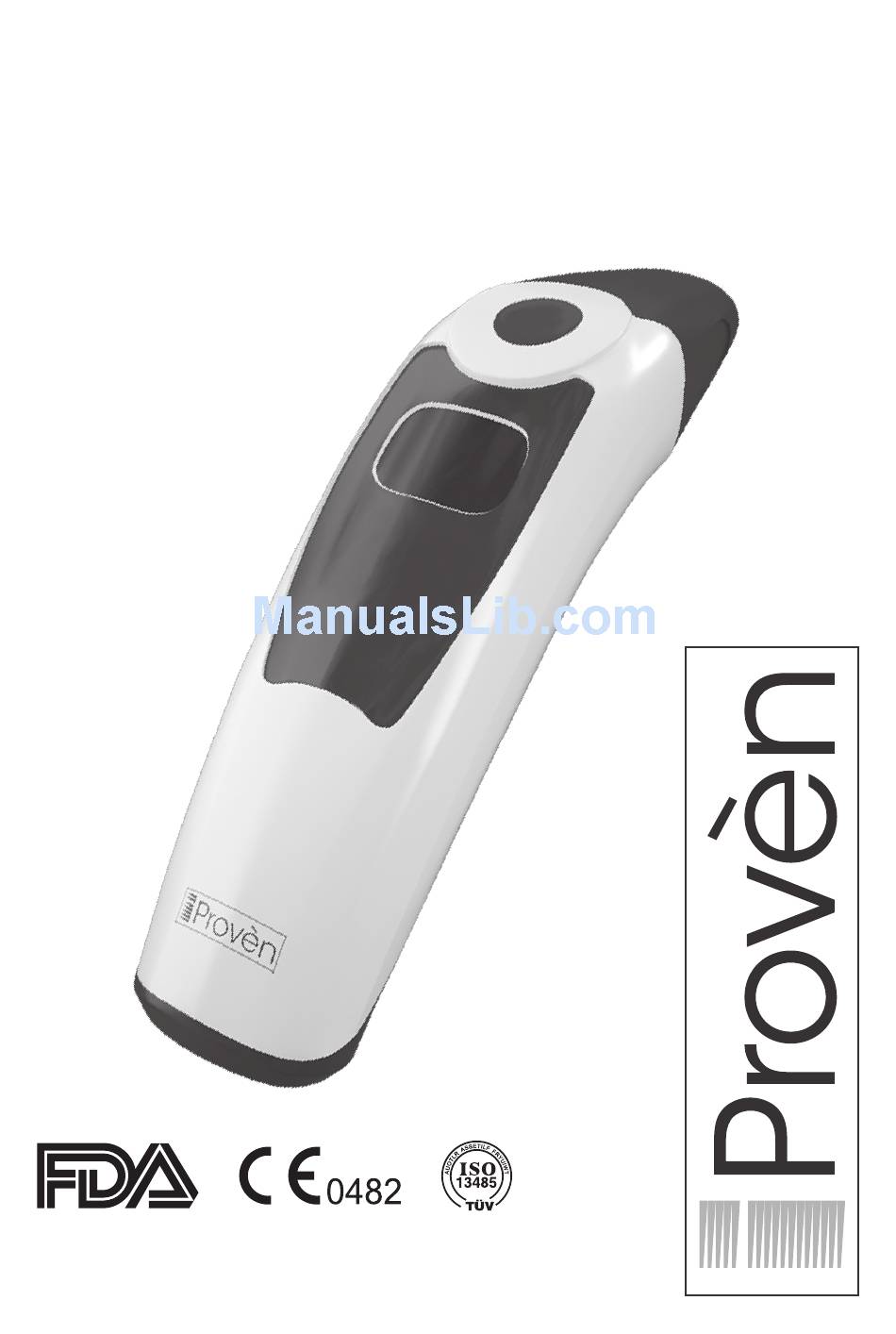

- Page 1 ET-828-BT Infrared Ear Thermometer Instruction manual Manual Ver.: 1.0 Issuing Date: 2016/07/27...
- Page 2 Thank you for choosing the iProvèn Infrared Ear Thermometer with wireless data transmission technology. The ET-828-BT can be used for measuring the body tempera- ture by sensing the radiated heat from the eardrum. It can also be used to measure the ambient temperature.
-
Page 3: Table Of Contents
Contents 1. Safety instructions and precautions ..........4 2. Purpose of the device ................4 2.1 Description of the device ..............5 3. Setup instructions .................6 3.1 First use ....................6 3.2 Replacing the batteries ..............6 4. Operating instructions ................6 4.1 How to make sure you get accurate measurements .....6 4.2 How to take the temperature ............7 4.3 Memory retrieval .................7 4.4 Data transmission ................7... -
Page 4: Safety Instructions And Precautions
1. Safety instructions and precautions • This thermometer is not suitable for children under 6 months. For children younger than 6 months we recommend using the forehead mode of a dual mode thermometer such as the iProvèn DMT-489 a rectal digital thermometer with a flexible tip such as the iProvèn DTK-117A. -
Page 5: Description Of The Device

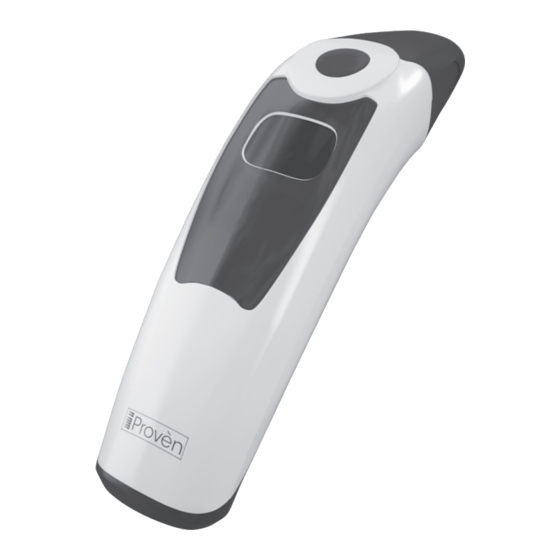

2.1 Description of the device Sensor cap (uncap to take the temperature.) Start button LCD display Battery cover Display symbols Ambient temperature Ready for measurement Ear temperature ˚F / ˚C sign Battery low Memory Digits - 5 -... -
Page 6: Setup Instructions
3. Setup instructions 3.1 First use When using this product for the first time, the battery protection tab must be remo- ved. Remove this plastic tab by gently pulling it out of the battery compartment. 3.2 Replacing the batteries To replace the batteries, follow these instructions: Release the battery cover by gently sliding it down. -
Page 7: Memory Retrieval
To place the thermometer sensor correctly; follow these instructions: Take off the sensor cap to expose the sensor probe. Pull the ear backward and upward with your free hand to straighten the ear canal (image 1). Gently insert the sensor into the ear canal and make sure the sensor is almost touching the eardrum (image 2). -
Page 8: C / ˚F Switch
To switch between Celsius and Fahrenheit follow these instructions: Make sure the thermometer is off. If it shows anything on the display, leave the buttons untouched for 10 seconds. Press and hold the button for 10 seconds until the display shows “- - -˚C” or “- - -˚F”. -
Page 9: Ambient Temperature Function
normal. When a normal body temperature is measured; one beep will sound and the display will light green. Body temperatures between 99.7˚F <108˚F or 37.6˚C <42.2˚C are considered fever. When the body temperature is increased, which is when it is 99.5 ˚F (or 37,5˚C) or higher, the thermometer will sound an alarm;... -
Page 10: Technical Information
Error: Display shows “ ER1” + backlight is red + 3 beeps sound Meaning: Ambient temperature dropped below 10˚C/ 50˚F or exceeded 40˚C/ 104˚F. Desired action: Please store the thermometer at room temperature. Error: Display shows “ ERC” + backlight is red + 3 beeps sound Meaning: EEPROM data reading error or the correcting process is not finished. -
Page 11: Warranty
Model: infrared ear thermometer ET-828-BT Applicable regulations and laws: ASTM 1965/EN12470-5/GB/T 19146-2010 Temperature units: ˚C/˚F, adjustable Measurement range 0.0˚C-100.0˚C / 32.0˚F-212.0 ˚F Precision: ±0.2˚C /±0.4˚F Display resolution: 0.1˚C/0.1˚F Latency Time: 1 second Sound: Volume≧50 dB (Distance from dB Volume sensor to thermometer is 10cm) Automatic shutdown function: ±10s... - Page 12 WAREHOUSE Beaverton, Oregon 9450 SW Gemini Dr Beaverton, OR 97008-7105 Phone: 1-503-974-0913 HEADQUARTERS Ebweg 12D 2991 LT Barendrecht The Netherlands Version: ET-828-BT 20160727 Phone: +31(0)84-8838876 - 12 -...
