Digital Voice Systems VC-20 Application Note page 8

Serial speech data interface
Hide thumbs Also See for VC-20:
1
2
3
4
5
6
7
8
9

Advertisement

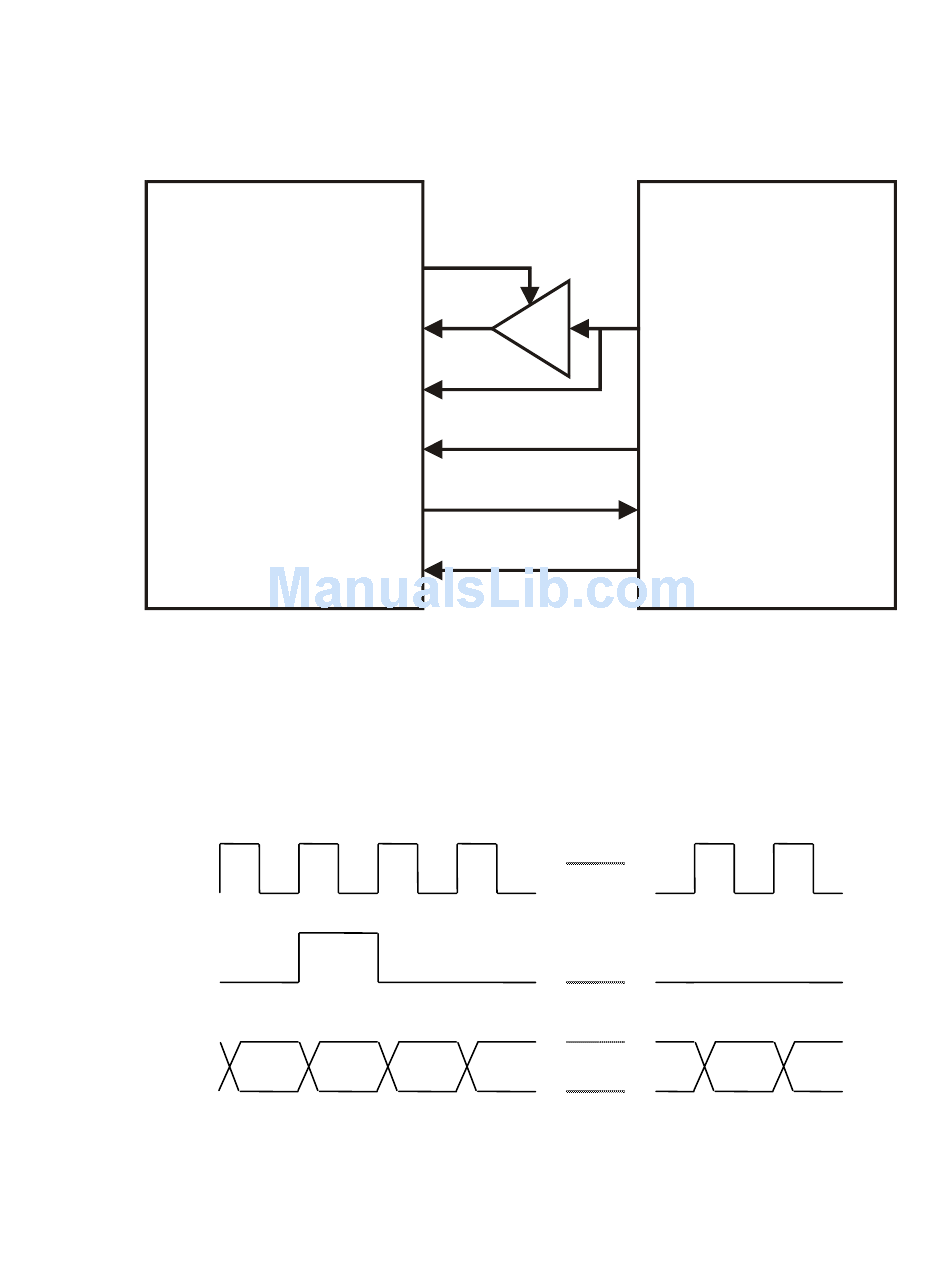

5. Example Configuration
6. Timing Diagrams
Burst Mode (128kHz. < SCLK < 5.16 MHz.)
SCLK
FSX / FSR
DX / DR
VC 20
SP_RDY (C7)
FSX (B7)
FSR (B12)
SCLK (B9)
DX (B6)
DR (B11)
MSB
External Codec
Tri-state Driver
SYNC
CLK
DI
DO
LSB
