Quick Start Guide
MC20
This Quick Start Guide shows you how to set up and begin using
your new adapter.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC20 and is the answer not in the manual?

Questions and answers

Related Manuals for SMART/RG MC20

Summary of Contents for SMART/RG MC20

  • Page 1 Quick Start Guide MC20 This Quick Start Guide shows you how to set up and begin using your new adapter.

  • Page 2: Installation

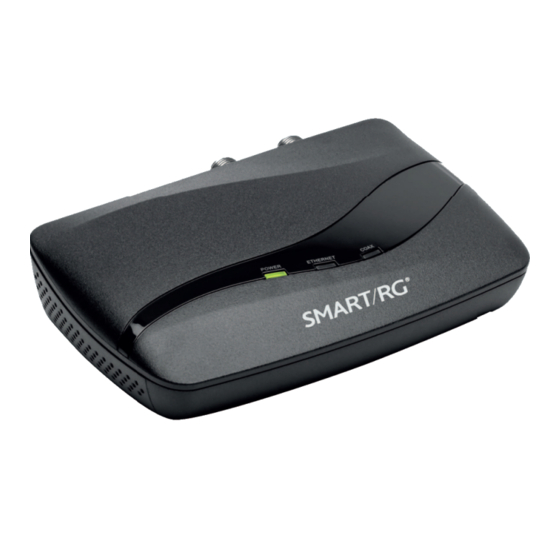

    INSTALLATION The MC20 adapter is installed between the incoming coaxial wall jack and the destination device, such as a TV or a set-top box. Connect a coax cable to the cable wall jack and to the ® MoCA IN port on the adapter.
  • Page 3 ® TV OUT MoCA ETHERNET RESET DC SV ON/OFF...

  • Page 4: Led Indicators

    LED INDICATORS The LEDs on the top of the MC20 can help you understand the current state of your adapter. Legend: Green Green blinking White White blinking Action Explanation Power Adapter has power Ethernet Ethernet is connected Data being transmitted ®...

  • Page 5: Optional Wall Mount

    OPTIONAL WALL MOUNT Insert the two included screws into the wall using the template below. Using wall anchors is recommended. 1/16” (2-3mm) Wall Anchor 2 1/2” (64 mm) Slide the adapter down on the screws.

  • Page 6: Additional Support

    ADDITIONAL SUPPORT If you require further instructions, please contact your local ISP Support. SMARTRG INC. ALL RIGHTS RESERVED. COPYRIGHT 2017 ©...
