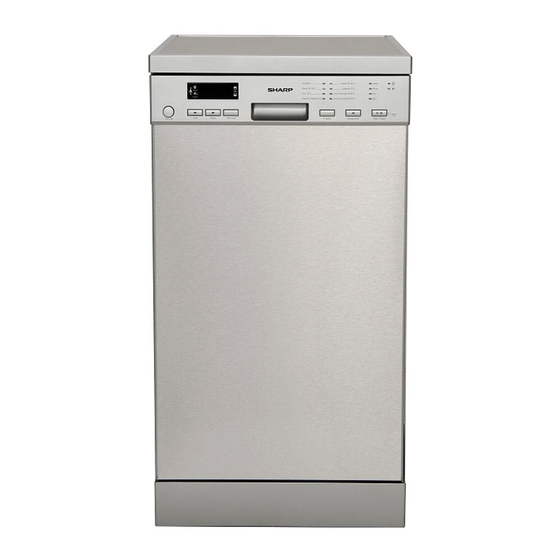

- Page 1 Home Appliances Dishwashing User Manual Fullsize Dishwasher QW-S24F443I-FR For Life...
-
Page 3: Table Of Contents
CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Fitting the machine undercounter... -
Page 4: Chapter-1: Explanation Of Product
CHAPTER -1: EXPLANATION OF PRODUCT 7. Rating plate 1. Worktop 8. Control Panel 2. Upper basket with racks 9. Detergent and rinse-aid dispenser 3. Upper spray arm 10. Salt dispenser 4. Lower basket 11. Upper basket track latch 5. Lower spray arm 12. -
Page 5: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 10 place settings Height 850 mm Height (without worktop) 820 mm Width 450 mm Depth 598 mm Net Weight 40 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W... -
Page 6: Chapter-2: Safety Information And Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling. - Page 7 • Do not leave the door open, to avoid accidents. • Place knives and other sharp-ended objects in the cutlery basket in blade- down position. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or competent technican in order to prevent a hazard.
-
Page 8: Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only whenever necessary. •... -
Page 9: Water Connections
CHAPTER -3: INSTALLING THE MACHINE If the door of the machine does not close properly, check if the machine is stable on the floor on which it stands; if not, adjust the feet and ensure its stable position. Water connection İndoor plumbing must be suitable for installing a dishwasher. -
Page 10: Electrical Connection
CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes may remain dirty. In such a case, our company will not accept liability. Electrical connection The grounded plug of your machine should be connected to an grounded outlet supplied by a suitable voltage and current. -
Page 11: Fitting The Machine Undercounter
CHAPTER -3: INSTALLING THE MACHINE Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration. - Page 12 CHAPTER -3: INSTALLING THE MACHINE Adjust the machine’s feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product Without Insulation With Insulation All Product For 2nd Basket For 3rd Basket Height 820 mm...
-
Page 13: Prior To Using The Machine
CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •... -
Page 14: Adjusting Salt Consumption
CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21... -
Page 15: Combined Detergent
CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties in them. Before using a detergent, please read and follow the instructions well. Generally, combined detergents produce sufficient results only under certain conditions. Points to consider when using these types of products: •... -
Page 16: Chapter-5: Loading Your Dishwasher
The upper basket is for thin and narrow items. You are recommended to use the cutlery basket in order to obtain the best result. To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets. - Page 17 CHAPTER-5: LOADING YOUR DISHWASHER Top basket height adjustment while it is full The basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
- Page 18 Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-18...
-
Page 19: Alternative Basket Loads
CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket EN-19... - Page 20 CHAPTER-5: LOADING YOUR DISHWASHER Faulty loads ñ Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. EN-20...
-
Page 21: Chapter -6: Programme Descriptions
CHAPTER -6: PROGRAMME DESCRIPTIONS PROGRAMME DESCRIPTIONS Programme items Name of Program Pre-washing Auto Delicate Auto Intense Dual Wash Washing – 30-50 50-70 65°C Temperature Type of Food Fresh less Detects contamination level of dishes soups, sauces,pasta, Fragment dirty,cofee,milk, and sets temperature and amount of eggs, pilaf,potato and washing water and washing period oven dishes, fried... - Page 22 CHAPTER -6: PROGRAMME DESCRIPTIONS PROGRAMME DESCRIPTIONS Programme items Name of Program Quick 30 min. Express Hygiene 70°C 50’min. Washing 40°C 50°C 65°C 70 °C Temperature Type of Food Fresh coffee, coffee, milk, tea, soups, sauces, Dishes with dense Fragment milk, cold meats, pasta, eggs, dirt waiting for a...
-
Page 23: Chapter -7: Switching On The Machine And Selecting Aprogramme
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 1.) ON/OFF Button When pressed on ON/OFF button, the machine is energized and the light on Start/Standby button goes on. 2.) Extra Fast / Silent Button Extra Fast Function Washes the dishes with more pressure, thus shortens the time of the selectedprogram and provides economical water usage. - Page 24 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 9.) Salt Lack Warning indicator In order to see whether softening salt in your machine is sufficient or not, check salt lack warning light on the display.When salt light warning light starts coming on, you need to fill in the salt chamber. Rinse aid Lack Warning indicator In order to check that there is sufficient rinse aid in your machine check rinse aid lack warning light on the display.When rinse aid warning light starts coming on , fill in rinse aid chamber.
-
Page 25: Switching On The Machine
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your d˜shes v˜a the Program Selector button. -
Page 26: Changing A Programme With Resetting
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Changing a programme with resetting If you would like to cancel a program while a washing program is resumed. Hold Start/Pause buttonpressed for approx. 3 sec.until Finish light blinks. Once Finish light comes on, it means that the cycle has been cancelled. -
Page 27: Chapter-8: Maintenance And Cleaning
CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine regularly prolongs the machine’s service life. Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature. -
Page 28: Chapter-9: Failure Codes And What To Do İn Case Of Failure
If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp helpdesk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released. -
Page 29: Chapter-10: Practical And Useful Information
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •... - Page 30 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
