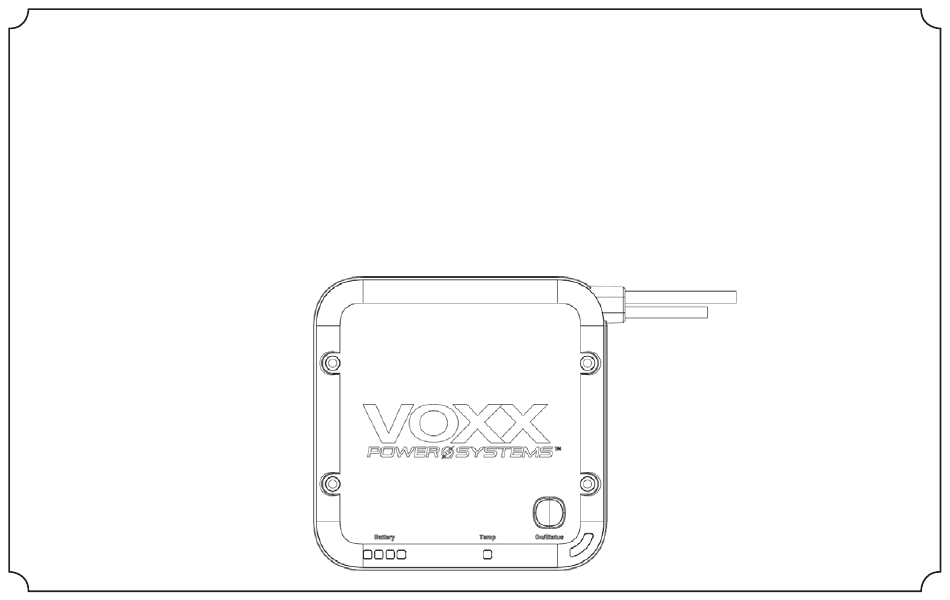

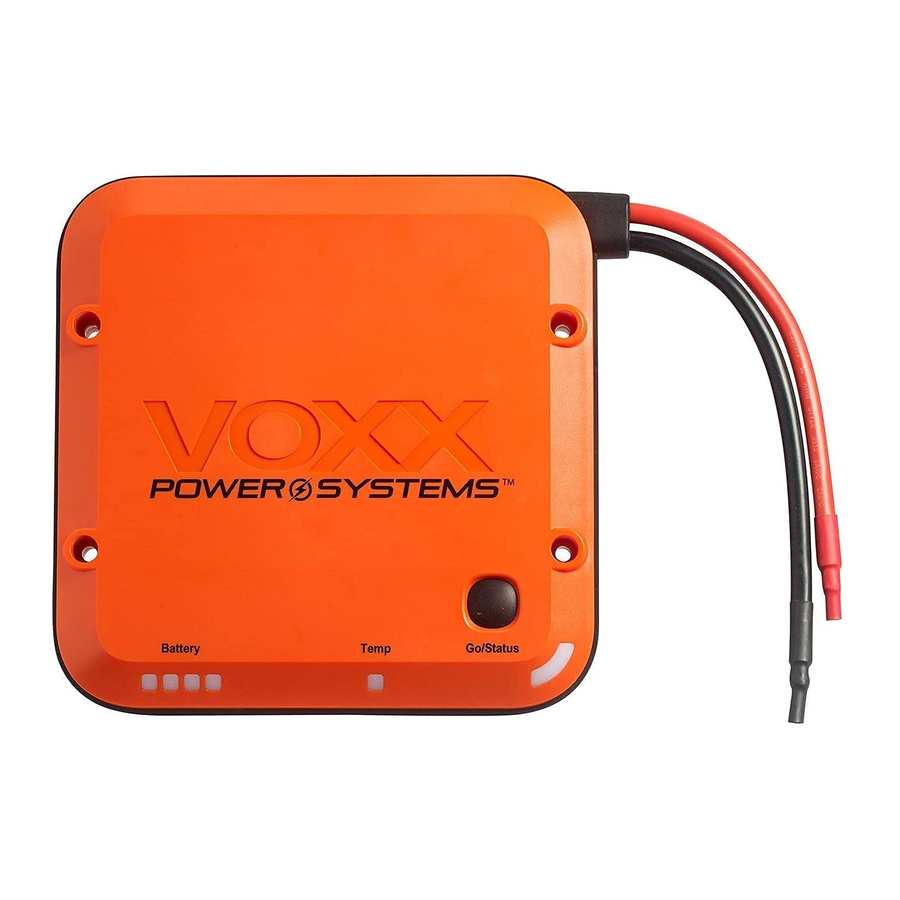

- Page 1 INSTALLATION MANUAL POWV3.5 / 250-9900 INSTALLED BATTERY BACKUP SYSTEM INSTALLATION MANUAL...
- Page 2 POWV3.5 be installed by a qualified professional 12v installation technician. The POWV3.5 is to be installed inside of a vehicles cabin or trunk, and as such, it is important to use the proper gauge cable to maintain the current needed for operation of the POWV3.5.
- Page 3 The POWV3.5 is supplied with two vinyl insulated barrel style butt connectors to extend the POWV3.5’s 6 AWG power leads to the vehicles battery. Please refer to the in parallel to the vehicle’s starter battery and self-regulates its charge while the engine is running so that it always ready for use. When needed, the POWV3.5 can be Cable Gauge/Distance chart to determine the proper gauge cable needed for the power cable run.
- Page 4 Because the product requires direct connection to the vehicle’s electrical system, it must be installed by a qualified professional installer. Installation of requires careful planning and preparation. The POWV3.5 should be installed under a seat or in a trunk in a location where the GO/Status button can be accessed, and the POWV3.5 requires careful planning and preparation.
- Page 5 (black) wire must be electrically distance from the POWV3.5 to the vehicle’s battery (See Wire Gauge/Distance Guide). In order to allow high currents to pass, no fuse should be used in the electrical path.
- Page 6 General Specifications Notes _______________________________________________________________________________________________________________________________ POWV3.5 POWV6.0 _______________________________________________________________________________________________________________________________ Nominal Voltage 13.3V 13.3V _______________________________________________________________________________________________________________________________ Peak Current 850 Amps 1200 Amps _______________________________________________________________________________________________________________________________ Cranking Current 525 Amps 900 Amps _______________________________________________________________________________________________________________________________ Battery Capacity 3500 mAh 6000 mAh _______________________________________________________________________________________________________________________________ Jumps Per Charge > 20 (typically) > 20 (typically)
- Page 7 > 20 (typically) 12 L 10 L IP67 -40C to 85C ©2021 VOXX Electronics Corporation • 2351 J. Lawson Blvd, Orlando, FL 32824 • 800-290-6650 • www.VOXXelectronics.com -40C to 60C -40 to 85C 1.2A nths > 6 months th Low Energy (BLE)
