Summary of Contents for Iluminarc LOGIC Series

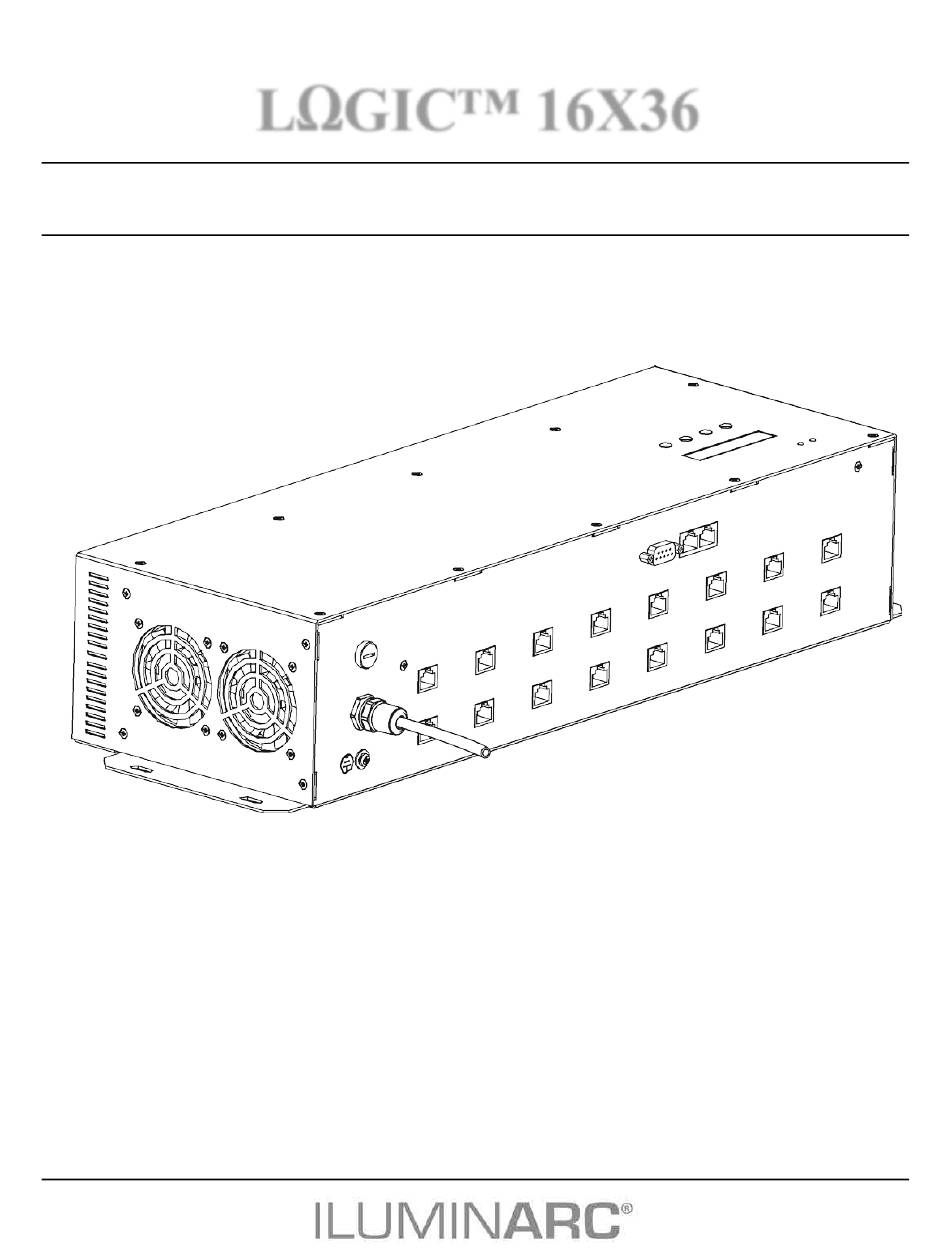

  • Page 1 LΩGIC™ 16X36 User Manual...
  • Page 2 ILUMINARC to notify any person or company of ® such revision or changes. This does not constitute in any way a commitment by ILUMINARC ® make such changes. ILUMINARC may issue a revision of this manual or a new edition of it to incorporate such changes.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Introduction ....................1 What is Included ......................1 Unpacking Instructions ....................1 Text Conventions ......................1 Safety Notes ......................... 2 Personal Safety ........................2 Mounting and Installation .....................2 Power and Wiring ........................2 Operation ..........................2 2.
  • Page 4 Table of Contents 5. Technical Information ................. 19 System Maintenance ....................19 Product Repairs ......................19 Troubleshooting Guide ....................20 LED Disclaimer ......................21 LED Life ..........................21 LED Binning........................21 Color Rendering Index (CRI) ..................... 21 Returns Procedure ..................... 22 Claims.........................
  • Page 5: Introduction

    ® Immediately upon receiving a product from ILUMINARC , carefully unpack the carton. Check the contents of the box to ensure that all parts are present and that they are in good condition. If This icon...
  • Page 6: Safety Notes

    User Manual will only apply to · Always disconnect this product from its power source before servicing. properly ILUMINARC ® · Always connect this product to a grounded circuit to avoid the risk of electrocution.
  • Page 7: Product Description

    Product Description 2. Product Description The LΩGIC™ 16X36 product is the power supply and control for the LΩGIC™ series of products. The LΩGIC™ 16X36 consists of seven (7) personalities for the RGB mode, which are configurable from the control panel. The output of the LΩGIC™ 16X36 is sixteen RJ-45 type connections.
  • Page 8: Product Overview

    Product Description Product Overview Power Signal Power Input Indicator Indicator Control Panel Mounting Bracket Outputs RS-232 Fuse (Future Use) Holder LΩGIC™ 16X36 User Manual (Rev. 06)
  • Page 9: Installation

    Installation 3. Installation AC Power Always connect the LΩGIC™ The LΩGIC™ 16X36 has an auto-ranging power supply that can work with an input voltage 16X36 to a range of 100~240 VAC, 50/60 Hz. protected circuit with an appropriate electrical Make sure that you are connecting this product to the proper voltage, as per the specifications in ground to avoid the risk of this guide, the product’s user manual, or on the product’s sticker.
  • Page 10: Dmx Linking

    If you are not familiar with the DMX standard, or if you need information about the DMX DMX signal. cables needed to link the LΩGIC™ 16X36 to a DMX controller, you may download the “DMX Primer” document from the ILUMINARC® web site: www.iluminarc.com. USITT recommends...
  • Page 11: Lωgic™ 16X36 Product Linking

    Continue linking the LΩGIC™ 16X36 products using more signal patch cables, as shown in the diagram below. Do not use the ILUMINARC recommends using a signal terminator after the last LΩGIC™ 16X36 splitter as a coupler. product.The easiest way to assemble a signal terminator is by soldering or crimping a 120 ohms resistor between the terminals corresponding to DATA + and DATA –...
  • Page 12: Maximum Output Line Loading

    Installation Maximum Output Line Loading The LΩGIC™ 16X36 product has sixteen (16) output lines. This means that the user can combine various output lines to create zones. Each output line has three channels. Each channel can support up to 12 LEDs. As a result, the maximum number of LEDs supported by an output line is 36.
  • Page 13: Cable Connections

    Installation Cable Connections RJ-45 Plug DMX XLR (male) (male) (male) 3-pin RJ-45 Plug Pin Assignment 5-pin View facing pins RJ-45 Plug 3-pin XLR Male 5-pin XLR Male Pin 1: Not Used Pin 2: Not Used Pin 3: Not Used Pin 4: Not Used Pin 4: Not Used Pin 5: +5 V Pin 5: Not Used...
  • Page 14: Mounting

    Always mount this product in any safe position while making sure that there is adequate room around it for ventilation, configuration, and maintenance. Installation The LΩGIC™ 16X36 consists of a single product with 4 mounting points. ILUMINARC Make sure to ®...
  • Page 15: Operation

    Operation 4. Operation Control Panel Description Button Function Exits from the current menu or function <MENU> Enables the currently displayed menu or sets the currently selected value in <ENTER> to the current function Navigates upwards through the menu list and increases the numeric value <UP>...
  • Page 16: Master/Slave

    Operation Master/Slave On the Master product: Go to MENU>OPERATION and select DMX. Go to MENU>PLAY AUTO and select any Auto program. On each of the Slave products: Go to MENU>OPERATION and select SLAVE. The slave products will follow the program played by the Master. Static Colors Go to MENU>PLAY STATIC.
  • Page 17: Rgb To White Setting

    Operation RGB to White Setting When RGB TO W is active, the product will automatically use the RGB values for a balanced white look. When inactive, the product will use the most powerful intensity. Go to MENU>SETTTINGS>RGB TO WHITE. Select YES or NO. Whites Setting Go to MENU>SETTINGS>CALIBRATION.
  • Page 18: Password

    Operation Password When KEYLOCK is active, the product will ask you to enter the password (<UP>, <DOWN>, <UP>, and <DOWN>) after 30 seconds of control panel inactivity or upon The Password is power up. fixed by default. It Go to MENU >SETTINGS. is not able to be changed.
  • Page 19: Menu Options

    Operation Menu Options Main Programming Steps Instructions 1. Play auto RGB 1~10 RGBL 1~10 1~255 Choose from 10 automatic programs 2. Play CUSTOM 1~10 Choose from 10 user-defined programs custom GREEN L1~16 0~255 3. Play Static BLUE Configure and/or play a single step program LALL DIMMER 0~20...
  • Page 20 Operation Continued from previous page Main Programming Steps Instructions Work with a DMX controller 9. Operation SLAVE Slave mode EASY PLAY Optional remote SUNDAY~ SATURDAY RGBL (Different 1~10 schedules for CUSTOM After selecting DOW, schedule #, and program, enter each DOW) 10.
  • Page 21: Dmx Values

    Operation DMX Values EFFECT Channel Function Value Percent/Setting 0~100% 000 ó 255 Step Time When CUS. 01-10 in CH. 7 is activated Green 0~100% 000 ó 255 Step Time When CUS. 01-10 in CH. 7 is activated 000 ó 255 Blue 0~100% 000 ó...
  • Page 22: Dmx Values

    Operation DMX Values Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Green 0~100% 000 ó 255 Blue 0~100% RGB + D Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Green 0~100% 000 ó 255 Blue 0~100% 000 ó...
  • Page 23: Technical Information

    Product Repairs ® ILUMINARC strongly advises you against attempting any repairs to this product unless you ® are an authorized ILUMINARC technician. Always dry the external optics ® ILUMINARC presents the information contained in the Troubleshooting Table as a guide and glass only.
  • Page 24: Troubleshooting Guide

    Action(s) Dirty lens assembly Clean the product regularly General low light intensity Misaligned lens assembly Return for service to Iluminarc® Faulty LED PCB Return for service to Iluminarc® No LED illuminates Faulty LED patch cable Return for service to Iluminarc®...
  • Page 25: Led Disclaimer

    LED. Data from the manufacturer of ® the LED are not independently verified or measured by ILUMINARC . When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer.
  • Page 26: Returns Procedure

    ® damage report and any related claims with the carrier, not ILUMINARC . The customer must submit the report upon reception of the damaged merchandise. Failure to do so in a timely Always keep the manner may invalidate the customer’s claim with the carrier.
  • Page 27: Technical Specifications

    Technical Information Technical Specifications Length Width Height Weight Dimensions and Weight 21.4 in (544 mm) 6.9 in (176 mm) 4.3 in (108 mm) 15lbs (6.8 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Electrical Switching (internal)
  • Page 28 ILUMINARC® 5200 NW 108th Avenue Sunrise, FL 33351 U.S.A. Tel.: (954) 923-3680 www.iluminarc.com LΩGIC™ 16X36 User Manual Rev. 06 May 2013...
