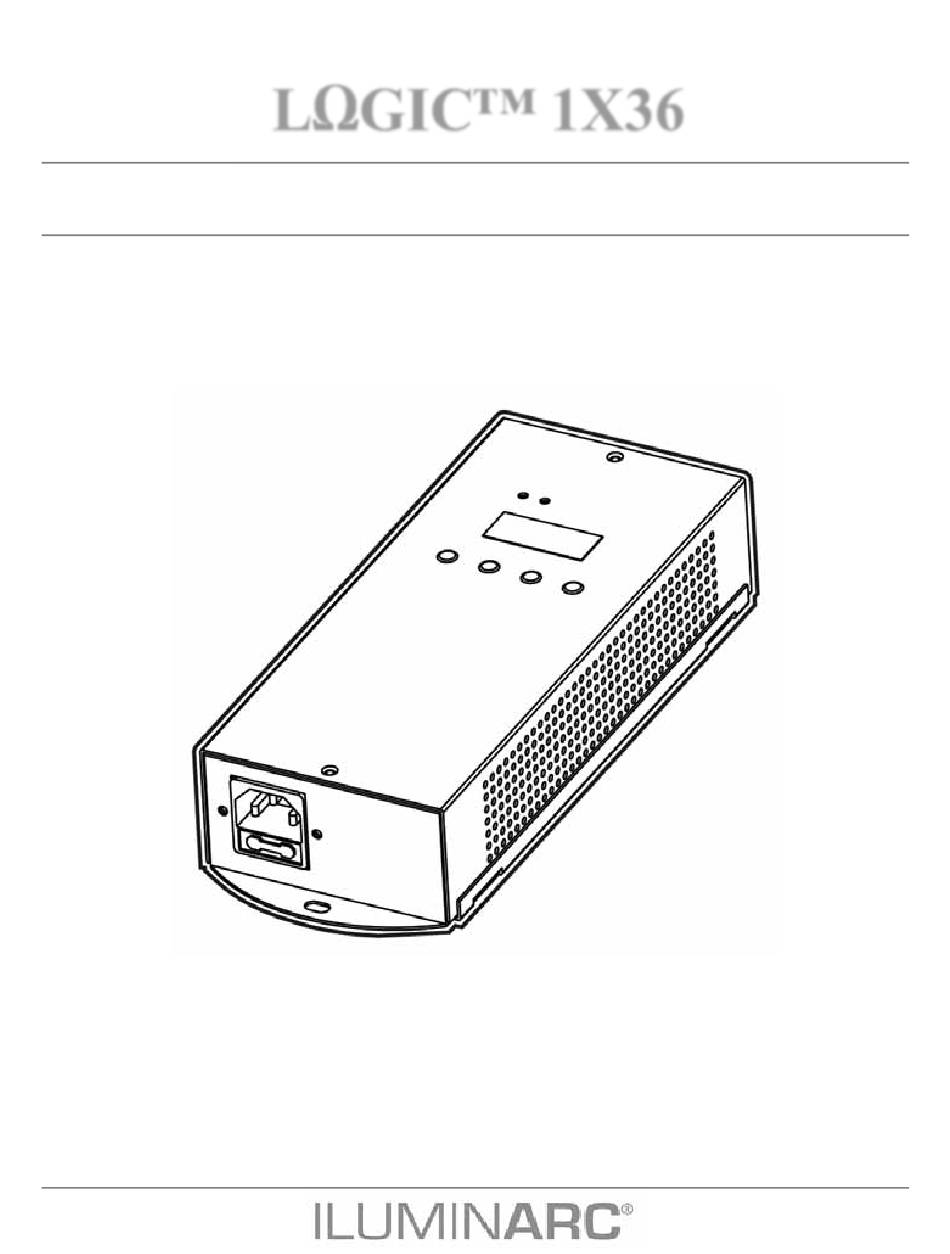

- Page 1 LΩGIC™ 1X36 User Manual...
- Page 2 ILUMINARC to notify any person or company of ® such revision or changes. This does not constitute in any way a commitment by ILUMINARC ® make such changes. ILUMINARC may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction ...................... 1 What is Included ......................1 Unpacking Instructions ....................1 Text Conventions ......................1 Safety Notes ......................... 2 Personal Safety ........................2 Mounting and Installation ..................... 2 ... - Page 4 Table of Contents Whites Setting ........................16 Set Time and Date ......................16 Set Schedule ........................16 Playing Schedule ....................... 16 Password ........................... 17 Reset ..........................17 Menu Options RGB Mode ..................18 ...
-
Page 5: Introduction
® Immediately upon receiving a product from ILUMINARC , carefully unpack the carton. Check the contents of the box to ensure that all parts are present and that they are in good condition. If This icon... -
Page 6: Safety Notes
User Manual will only apply to Always disconnect this product from its power source before servicing. properly ILUMINARC ® Always connect this product to a grounded circuit to avoid the risk of electrocution. -
Page 7: Product Description
Product Description 2. Product Description The LΩGIC™ 1X36 product is the power supply and control for the LΩGIC™ series of devices. The LΩGIC™ 1X36 consists of five personalities for the RGB mode and five personalities for the SpectraWhite™ mode, all of which are configurable from the control panel. The output of the LΩGIC™... -
Page 8: Product Overview
Product Description Product Overview RS-232 (Future Use) Output Signal Indicator Power Indicator Control Panel Mounting Bracket Power Input Fuse Holder LΩGIC™ 1X36 User Manual Rev. 07... -
Page 9: Installation
Installation 3. Installation AC Power Always connect the LΩGIC™ The LΩGIC™ 1X36 has an auto-ranging power supply that can work with an input voltage 1X36 to a range of 100~240 VAC, 50/60 Hz. protected circuit with an appropriate electrical Make sure that you are connecting this product to the proper voltage, as per the specifications in ground to avoid the risk of this guide, the product’s user manual, or on the product’s sticker. -
Page 10: Dmx Linking
If you are not familiar with the DMX standard, or if you need information about the DMX limiting the total cables needed to link the LΩGIC™ 1X36 to a DMX controller, you may download the “DMX length of the DMX cable Primer” document from the ILUMINARC® web site: www.iluminarc.com (from the first product/controller to the... -
Page 11: Lωgic™ 1X36 Product Linking
5. Continue linking the LΩGIC™ 1X36 products using more signal patch cables, as shown in the diagram below. ILUMINARC recommends using a signal terminator after the last LΩGIC™ 1X36 product. Do not use the The easiest way to assemble a signal terminator is by soldering or crimping a 120 ohms resistor splitter as a between the terminals corresponding to DATA + and DATA –... -
Page 12: Maximum Output Line Loading
Installation Maximum Output Line Loading The LΩGIC™ 1X36 product has a single output line. The single output line has three channels whose names change depending on the selected operation mode. (Red, Green, and Blue in the RGB mode, or Warm, Natural, and Cool in the SpectraWhite™ mode). Each channel can support up to 12 LEDs. -
Page 13: Cable Connections
Installation Cable Connections RJ-45 Plug DMX XLR (male) (male) (male) 3-pin RJ-45 Plug Pin Assignment 5-pin View facing pins RJ-45 Plug 3-pin XLR Male 5-pin XLR Male Pin 1: Not Used Pin 2: Not Used Pin 3: Not Used Pin 4: Not Used Pin 4: Not Used Pin 5: +5 V Pin 5: Not Used... -
Page 14: Mounting
Installation Make sure to The LΩGIC™ 1X36 consists of a single product with two (2) mounting points with 5mm mount this ® holes. ILUMINARC recommends following the general guidelines below when mounting product away the LΩGIC™ 1X36. from any flammable ... -
Page 15: Operation
Operation 4. Operation Control Panel Description Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected value in <SET> to the current function Navigates upwards through the menu list and increases the numeric value <UP>... -
Page 16: Master/Slave
Operation Master/Slave On the Master product: 1. Go to MENU>RUN and select DMX. 2. Go to MENU>AUTO and select any Auto program. On each of the Slave products: 1. Go to MENU>RUN and select SLAVE. The slave products will follow the program played by the Master. Static Colors 1. -
Page 17: Rgb To W Setting
Operation RGB to W Setting When RGB TO W is active, the product will automatically use the RGB values for a balanced white look. When inactive, the product will use the most powerful intensity. 1. Go to MENU>SET>RGB TO W. 2. -
Page 18: Password
Operation Password The Password is When KEYLOCK is active, the product will ask you to enter the password (<UP>, fixed by default. It is not able to be <DOWN>, <UP>, and <DOWN>) after 30 seconds of control panel inactivity or upon changed. -
Page 19: Programming (Spectrawhite™ Mode)
Operation Programming (SpectraWhite™ Mode) Refer to the Menu Options section on page 20 to learn how the menu options relate to each other. The Menu Options section has a Main level and a variable number of programming levels for each option. To go to an option in the Main level, press <MENU>... -
Page 20: Master/Slave
Operation Master/Slave On the Master product: 1. Go to MENU>RUN and select DMX. 2. Go to MENU>MOOD. 3. Select COOL, WARM, or NATURAL. 4. Select DIM [000~255] On each of the Slave products: 1. Go to MENU>RUN and select SLAVE. The slave products will follow the program played by the Master. -
Page 21: Password
Operation Password When KEYLOCK is active, the product will ask you to enter the password (<UP>, <DOWN>, <UP>, and <DOWN>) after 30 seconds of control panel inactivity or upon power up. 1. Go to MENU >SET. 2. Select ON/OFF. Reset 1. -
Page 22: Menu Options Rgb Mode
Operation Menu Options RGB Mode Main Programming Steps Instructions RGB 1~10 1~255 Choose from 10 automatic programs 1. Auto Choose from 10 user-defined programs 2. Custom CUSTOM 1~10 GREN 0~255 3. Static BLUE Configure and/or play a single step program DIMM STRO 0~20... - Page 23 Operation Continued from previous page Main Programming Steps Instructions Work with a DMX controller Slave mode 9. Run SLAVE EASY PLAY Optional remote SUNDAY~ SATURDA 1~10 (Different CUSTOM schedules for After selecting DOW, schedule #, and program, enter each DOW) 10.
-
Page 24: Menu Options Spectrawhite™ Mode
Operation Menu Options SpectraWhite™ Mode Main Programming Steps Instructions WARM 1. Mood NATURAL 1~255 Choose a white effect and intensity COOL COOL WARM 0~255 Configures and/or plays a single step program per output 2. Static line DIMME STROB 0~20 3. Play SCHEDULE PLAYING! Play scheduled program schedule... -
Page 25: Dmx Values Rgb Mode
Operation DMX Values RGB Mode EFFECT Channel Function Value Percent/Setting 0~100% 000 255 Step Time When CUS. 01-10 in CH. 7 is activated Green 0~100% 000 255 Step Time When CUS. 01-10 in CH. 7 is activated 000 255 Blue 0~100% 000 ... -
Page 26: Dmx Values Rgb Mode (Cont.)
Operation DMX Values RGB Mode (Cont.) Channel Function Value Percent/Setting 000 255 0~100% 000 255 Green 0~100% 000 255 Blue 0~100% RGB + D Channel Function Value Percent/Setting 000 255 0~100% 000 255 Green 0~100% 000 ... -
Page 27: Dmx Values Spectrawhite™ Mode
Operation DMX Values SpectraWhite™ Mode STUD W Channel Function Value Percent/Setting 000 255 Warm White 0~100% 000 255 Cool White 0~100% STUD W+D Channel Function Value Percent/Setting 000 255 Dimmer 0~100% 000 255 Warm White 0~100% 000 ... -
Page 28: Technical Information
Product Repairs ® ILUMINARC strongly advises you against attempting any repairs to this product unless you Always dry the ® are an authorized ILUMINARC technician. external optics ® ILUMINARC presents the information contained in the Troubleshooting Table as a guide... -
Page 29: Troubleshooting Guide
Action(s) Dirty lens assembly Clean the product regularly General low light intensity Misaligned lens assembly Return for service to Iluminarc® Faulty LED PCB Return for service to Iluminarc® No LED illuminates Faulty LED patch cable Return for service to Iluminarc®... -
Page 30: Led Disclaimer
LED. Data from the manufacturer of ® the LED are not independently verified or measured by ILUMINARC . When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 31: Returns Procedure
® damage report and any related claims with the carrier, not ILUMINARC . The customer must submit the report upon reception of the damaged merchandise. Failure to do so in a timely Always keep the manner may invalidate the customer’s claim with the carrier. -
Page 32: Technical Specifications
Technical Specifications Dimensions and Length Width Height Weight Weight 9.8 in (250 mm) 3.9 in (100 mm) 2.0 in (50 mm) 1.95lbs (.88 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal) 100~240 V, 50/60 Hz Auto-ranging... - Page 33 Technical Information ILUMINARC® 5200 NW 108th Avenue Sunrise, FL 33351 U.S.A. Tel.: (954) 923-3680 www.iluminarc.com LΩGIC™ 1X36 User Manual Rev. 07 August 2011 LΩGIC™ 1X36 User Manual Rev. 07...
