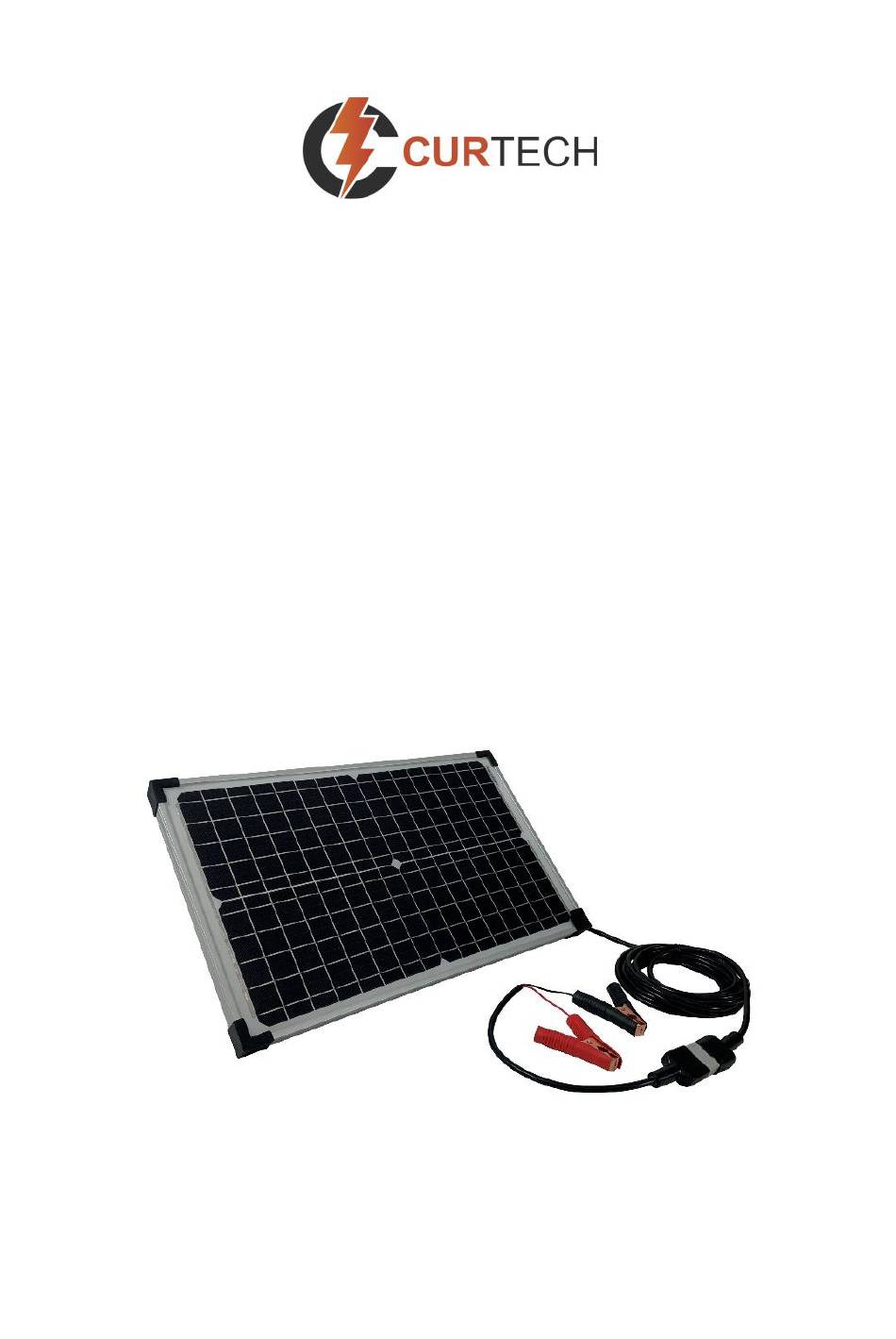

- Page 1 35W Monocrystalline Solar Panel Kit User Manual...
- Page 2 Installation 1. Remove solar panel kit from the box. 2. Fully extend battery lead and connect the battery clips to the + positive (red) & - negative (black) battery terminals. Ensure that the connection is secure. 3. Extend the leg to support the solar panel. 4.
- Page 3 Trouble shooting if system does not function Check all connections to ensure they are secure and free from moisture & debris. SC1205 PWM Solar Controller (see Manual enclosed) Protection of solar charge controller • Over-charge protection • Over-discharge protection • Reverse-current protection •...
- Page 4 1. Aluminium Frame 6. Cable 2. Aluminium Support Leg 7. Anderson Plugs 3. Solar Charge Controller 8. Battery Clips 4. Junction Box 9. Fuse 5. Label WARNING Solar panels produce power in sunlight. Care should be taken to store the kit out of the sun. Do not touch the positive and negative battery clips together, short circuit and fire maybe caused.
