Summary of Contents for lbx INCR-070-001

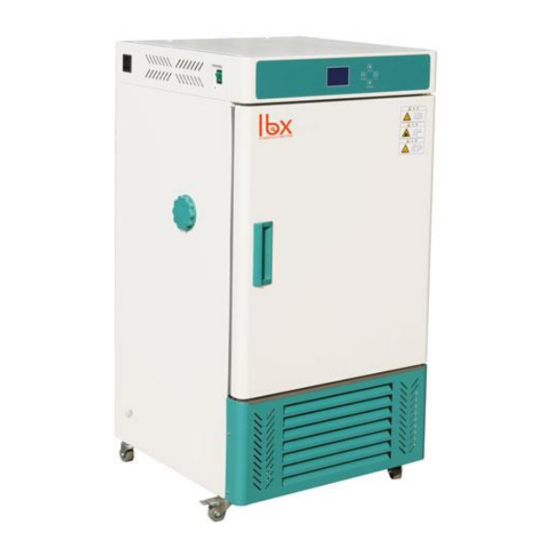

- Page 1 LBX INC-R Refrigerated Incubator Please read the User Manual carefully before use, and follow all operating and safety instructions! user manual english...
-
Page 2: Warranty
User Manual LBX INC-R Refrigerated Incubator Preface Users should read this Manual carefully, follow the instructions and procedures, and beware of all the cautions when using this instrument. Service If help is needed, you can always contact your dealer or Labbox via www.labbox.com... -
Page 3: Structure Features
4. Sole Temp. limited alarm system. Over-Temp. electric cut off and timing function. 5. R134A compressor and fans. 6. Double doors, inner door is of mirror stainless steel, silicon seal, outside door is of magnetic silicon. 7. 50mm diameter test hole. Product specifications Model INCR-070-001 INCR-150-001 Voltage 220~240V 50Hz/60Hz Temp. Range 0-65℃... -
Page 4: Working Conditions
Working conditions 1. Environment Temp.: 5～32℃ (if setting temp.≦10℃，environment≦28℃). 2. Humidity：≦80%RH 3. Air Pressure： 80-106Kpa 4. There must be no shaking of the incubator and no caustic air around the chamber. 5. Should avoid light and cooling environment. 6. Keep distance of dust, install horizontally and make sure there is distance between the equipment and wall. Safety information 1. - Page 5 Controller operation instruction ⅰ. Controller Specification Temp. setting range: 0.0 - 60.0 ℃ Timer setting range: 0 - 99minutes 59 seconds Display error: < 0.5% Sensor： PT100 ⅱ. Instruction of panel Tem. testting number Alarm 3 0.0 ℃ U P / L i g h t Refrigeration Heating Tem.
- Page 6 1. The internal parameters as follows: (Range) Parameter Name Function Factory Specification Password :“Lc=3”can modify the specification Proportional band : Time proportional adjust function: (2.0～25.0) Down P, can heat fast, UP P will reduce the over- 15.0 adjust AL-- Over-Temp. Display error alarm: (0.0～20.0) 3.0℃...
- Page 7 2. Check ambient Temperature Press the set button for more than 3 seconds, it will show “LC”, change it to “18” using up and down keys. Click set button and screen will show the ambient temperature. Press set button 3 seconds to exit this screen, the specification will keep automatically.
- Page 8 XI. Fault Analysis Phenomenon Cause analysis Treatment Power director does not Without power Inspect the plug show Fuse broken Change fuse Temp. Controller Sensor broken Change sensor shows“□□□□” Controller broken Change controller Open the door Over 50 degree make dry and frequently when doing reduce open door Evaporator frost or...
- Page 9 ota importante para los aparatos electrónicos vendidos en España Important note for electronic devices sold in Spain Remarque importante pour les appareils électroniques vendus en Espagne Instrucciones sobre la protección del medio ambiente y la eliminación de aparatos electrónicos: Los aparatos eléctricos y electrónicos marcados con este símbolo no pueden desecharse en vertederos.
- Page 10 www.labbox.com...
