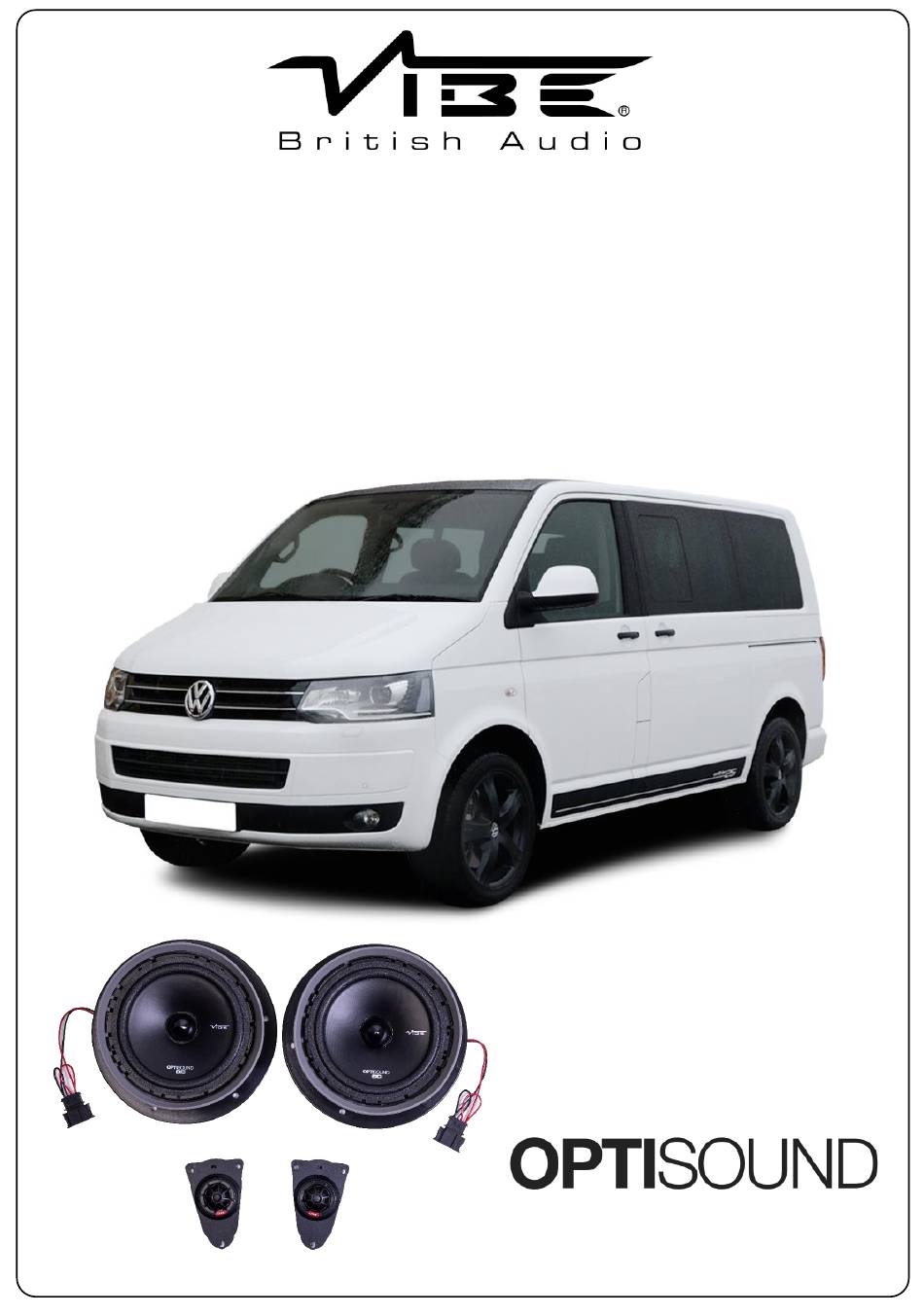

- Page 1 OPTIVWT5-V8 OPTI8VWT5-V0 OPTI8VWT5.1-V0 Volkswagen Transporter T5 & T5.1 (2003-2015) OPTIVWT6-V9 OPTI8VWT6-V0 Volkswagen Transporter T6 (upto 2019) OPTIVWT6.1-V0 6.5” VERSION ONLY VEHICLE SPECIFIC AUDIO UPGRADES High Efficiency OEM Speaker System...

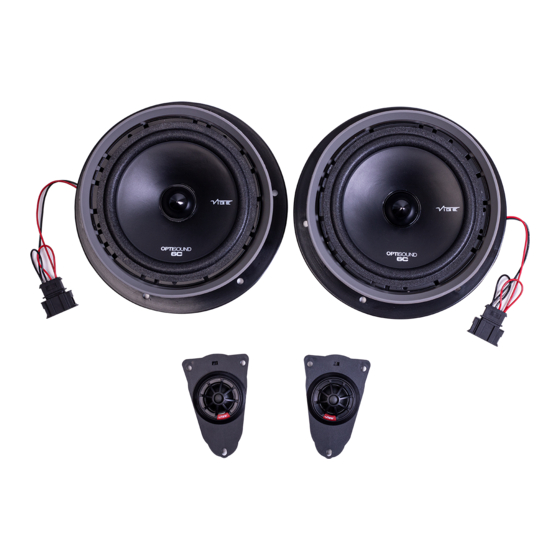

- Page 2 Volkswagen Transporter T6 & (2015-2019) Volkswagen Transporter T6.1 (upto 2019) – 6.5” ONLY This VIBE Optisound speaker kit has been specifically designed as a direct speaker and tweeter upgrade for the Volkswagen T5 & T5.1 & T6 & T6.1 Using super-efficient speaker technology combined with everything you need in one box, upgrading your speakers and getting a massive improvement in sound and performance couldn’t be easier.
- Page 3 T25 Torx screws located behind. (We recommend using the VIBE CLTRT-V7 trim removal tools available from any VIBE authorised dealer) 3. With the Torx screws removed, remove the handle completely from the door card.
- Page 4 Removing the Door card continued… 5. Remove the three T25 Torx screws located along the bottom edge of the door card. Once removed, use a trim removal tool to carefully release the plastic clips securing the door card to the door 6.
- Page 5 Replacing the Door Speakers 15. The factory speaker is secured to the door using rivets. To remove the speaker, drill out the rivets using a 5mm drill bit. Take care not to damage the vehicle and ensure protective eyewear is worn. Once all rivets are removed, unplug the speaker, and remove.
- Page 6 Replacing the Door Speaker continued… 12. Connect the speaker wiring adaptor and make a small hole in the rubber grommet. Pass the speaker wires through the grommet into the door cavity. Ensure the wiring is kept tight against to door skin as to not obstruct the window when lowered down 13.
- Page 7 Replacing the Tweeter T5 kit Dash Board Placement (T6 Fitting See 15B) 15. To remove the factory tweeter (if fitted) first use a trim removal tool to remove the dash cover. Lift the front edge first and remove completely 16. Remove the tweeter (if fitted) by removing the two T15 Torx screws securing the tweeter mount to the dash and unplugging the tweeter connector.
- Page 8 19. Connect the T-Crimp connectors to the stereo front speaker output wires. Take special care to ensure the polarity is correct so power correctly flows through the tweeter crossover. If unsure refer to your stereo user guide or wiring diagram. (Tweeter wiring, Black/White – Positive +, Black –...
- Page 9 Replacing the Tweeter T6 A Pillar 15B. To gain access the tweeter on the T6 the A pillar needs removing. A trim tool is recommended to remove these to avoid breaking anything. 16B. Once removed the Tweeter is now able to be removed. These are plastic welded into place from factory and can easily be removed with the use of heat and a small amount of pressure.
- Page 10 Warranty All VIBE products carry a full 12-month warranty, valid from the date of the original receipt and proof of purchase (UK only). The original receipt and packaging should be retained for the full 12-month period. If the product develops a problem at any stage during the warranty period, it should be returned to the point of purchase, complete and in its original packaging.
- Page 11 Additional Upgrade Options Available Want to upgrade your sound further…Why not amplify your speakers or add a subwoofer for a whole new listening experience. Please visit www.vibeaudio.co.uk for more information. POWERBOX65.4M-V7 Super compact 4 channel amplifier 4 X 65 Watts RMS Simple plug &...
