Interra ITR661-001 Quick Start Manual

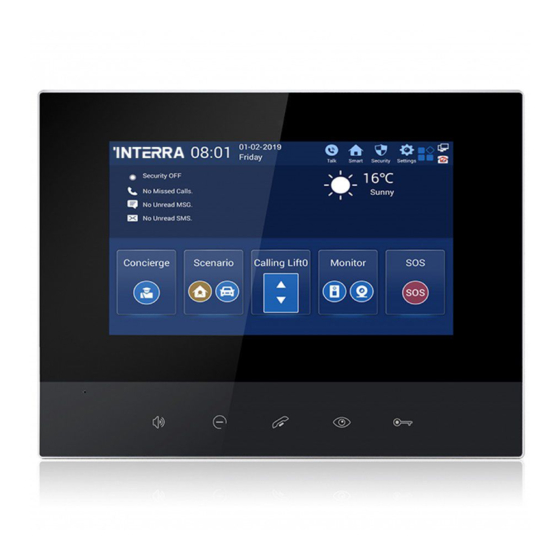

ITR661-001 - Indoor Intercom Panel with Android OS
Device ITR661-001
Power Supply 12V, PoE
3W (Standby Power)
Power Consumption
10W (Rated Power)
Display Screen 7" TFT LCD Screen , 1024x600
Communication TCP/IP, SIP, VOIP, RTSP
Communication (optional) Wi-Fi / Bluetooth Communication
CPU 1.5 GHz
Interface RS485, siren x1 , alarm zone x8
1 GB SD Ram
Memory 4 GB Flash
32 GB Micro SD Card
5 Buttons : Answer, Reject, Call, Camera Monitor,
Buttons
Unlock
Operating System Android 4.4.2
Type of Protection IP 30
Operation (-5°C...55°C)
Temperature Range
Storage (-10°C...70°C)
Maximum Air Humidity < 90 RH
Material Acrylic Panel + ABS Casing
Colour Black
Flammability Non-flammable product
Dimensions 220x166.5x21.5 mm (WxHxD)
Configuration via Webpage of Indoor Monitor
© 2020 INTERRA

DESCRIPTION

ITR661-001 is a Indoor Panel Unit with Android OS panel that mainly
used for make interacting between the related outdoor intercom unit. It
can be connected to Interra outdoor intercom devices for audio, video
communication also unlocking and monitoring features. With these
functions residents can enjoy crystal clear audio communication, can
check the call records and unlock the door remotely. Besides, the
ITR661-001 indoor panel supports 8 different alarm zones with three
different scenario setup. Black housing is quite proper to align with the
interior design of the home.
In addition, the ITR661-001 delivers the ultimate touch screen experi-
ence in a space saving design featuring an amazing 7" with capacitive
touch feature. It complies with SIP, VOIP standard for easy integration
in every SIP, VOIP capable devices.

FUNCTIONS

ITR661-001 is a Indoor Panel Unit with Android OS panel that mainly
used for make interacting between the related outdoor intercom unit.
ITR661-001 product features are described below :
•
VOIP: Support video call, camera monitor, unlock, VOIP communi-
cation and check the call records.
• Security: It supports 8 different regions with 3 different scenarios.
•
Operating system: Android 4.4.2
•
Automation Controls : Automation system can be controlled with
Icontrol.
•
Monitoring the outdoor intercom unit camera and user interface
customization.
•
Monitoring up to 10 cameras via RTSP with Icontrol.
•
Support Android systems applications.
1/2

INSTALLATION

The following figure, shows a proper location of the installation :
During the installation, the camera should be 1450-1550mm above
the ground. The camera tether for photographing human face
should be the top priority.
